| ₹ 7844.71 includes GST and import duties. | |
| B2B customers can avail ₹ 1196.32 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

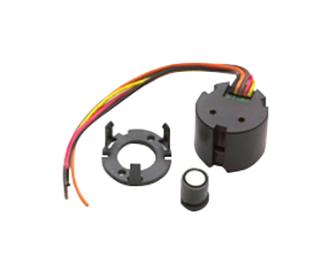

AEAT-901B-J06 is an incremental magnetic encoder that provides an integrated solution for angular detection within a complete 360° rotation. The use of magnetic technology for motion control and sensing activities eliminates mechanical contact and enables this device to be free from mechanical wear and tear. The three-channel output provides an additional index channel for every full rotation or revolution of 360°. An additional advantage is that the encoder�s upper rotational speed limit is limited by the application's bearing speed. Applications include speed detection, knob control, rotary encoder.
- Contactless sensing technology
- Wide temperature range from -40°C to +125°C
- 3-channel output
- Easy assembly and no signal adjustment required
- Direct connectivity through cable output
- 1024 resolution (CPR)
- Incremental output communication
- VDD supply current is 22mA typ at 25°C
- 5V DC supply voltage
Product details
Other details
| Brand | BROADCOM |
| Part Number | AEAT-901B-J06 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 7687.82 |
| 3-5 | ₹ 7609.37 |
| 5-10 | ₹ 7452.47 |
| 10+ | ₹ 7295.58 |
Bulk discount will be automatically applied during checkout based on quantity.
