| ₹ 12183.99 includes GST and import duties. | |
| B2B customers can avail ₹ 1858.06 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

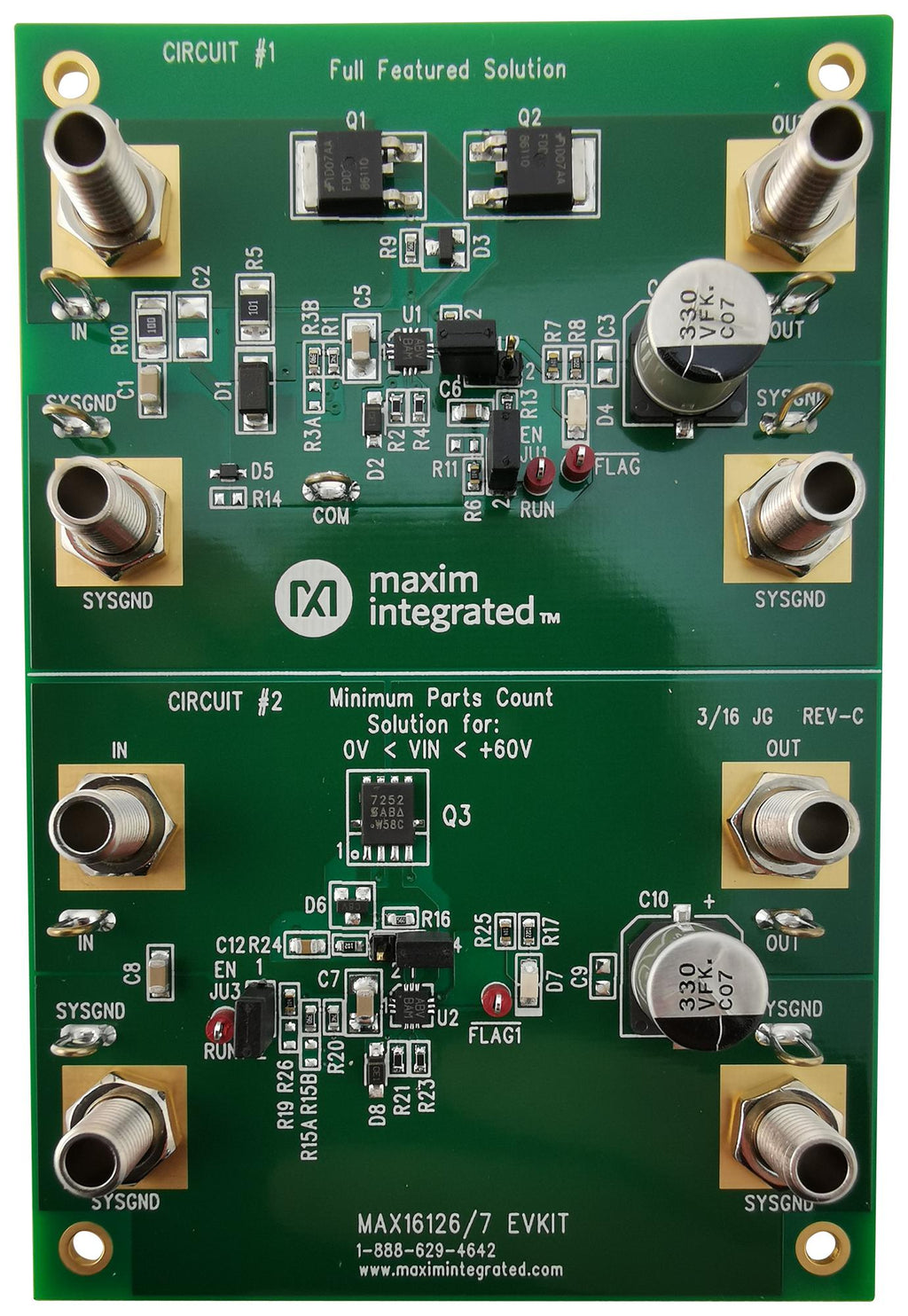

Evaluation kits for MAX16126 load dump/reverse voltage protection circuits. It provides two circuits, one full-featured solution and one minimum parts count circuit. The full featured solution exercises all the features of the devices and allows -60V to 90V protection beyond the 3V to 30V operating range. The minimum parts count solution provides a cost-effective option using a small 3A dual MOSFET and reduced 0 to 60V voltage range.
- Robust reverse-battery protection (circuit 1)
- Positive input supply voltage protection range extended beyond +90V (circuit 1)
- Adjustable undervoltage and overvoltage thresholds
- Adjustable undervoltage set for 8V
- Adjustable overvoltage threshold set for 32.1V
- Enable input/flag output
- Proven PCB layout
- Fully assembled and tested
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | MAX16126EVKIT# |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 11940.31 |
| 3-5 | ₹ 11818.47 |
| 5-10 | ₹ 11574.79 |
| 10+ | ₹ 11331.11 |
Bulk discount will be automatically applied during checkout based on quantity.
