AMPHENOL INDUSTRIAL CS3102A24-67P Circular Connector, CS Series, MIL-DTL-5015 Series, Box Mount Receptacle, 19 Contacts, Solder Pin

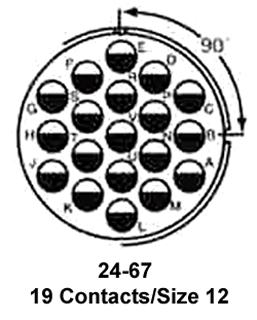

The CS3102A24-67P from Amphenol is CS series, MIL-DTL-5015 series equivalent box mount receptacle with 19 contacts. The CS series medium to heavy weight cylindrical connectors are available in a wide range of shell materials and finishes with 48hour and 500hour salt spray plating exposure. These standard cylindrical connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability in medium to heavy weight cylindrical construction. CS series connectors feature quick mating threaded couplings and single key/keyway polarization, representing maximum simplicity in design. They have well-proven electrical capability and are designed to withstand extreme shock, exposure and vibration. These connectors are used for general, non-environmental and pressurized applications.

• 5 shell styles with 19 shell sizes
• Durable, field-proven design
• High reliability, moisture and corrosion resistant
• 100 mating cycles
• Operates at extreme temperature range from -55°C to +125°C
• Minimum insulation resistance is 5000Mohm at 25°C
• Low cost and less weight
• Aluminium alloy body material with olive drab chromate over cadmium plating
• Brass, copper alloy solder pin contacts with silver plating

Applications

Commercial, Industrial
