Description
Wooden Camera Elite Accessory System for Cano... Overview

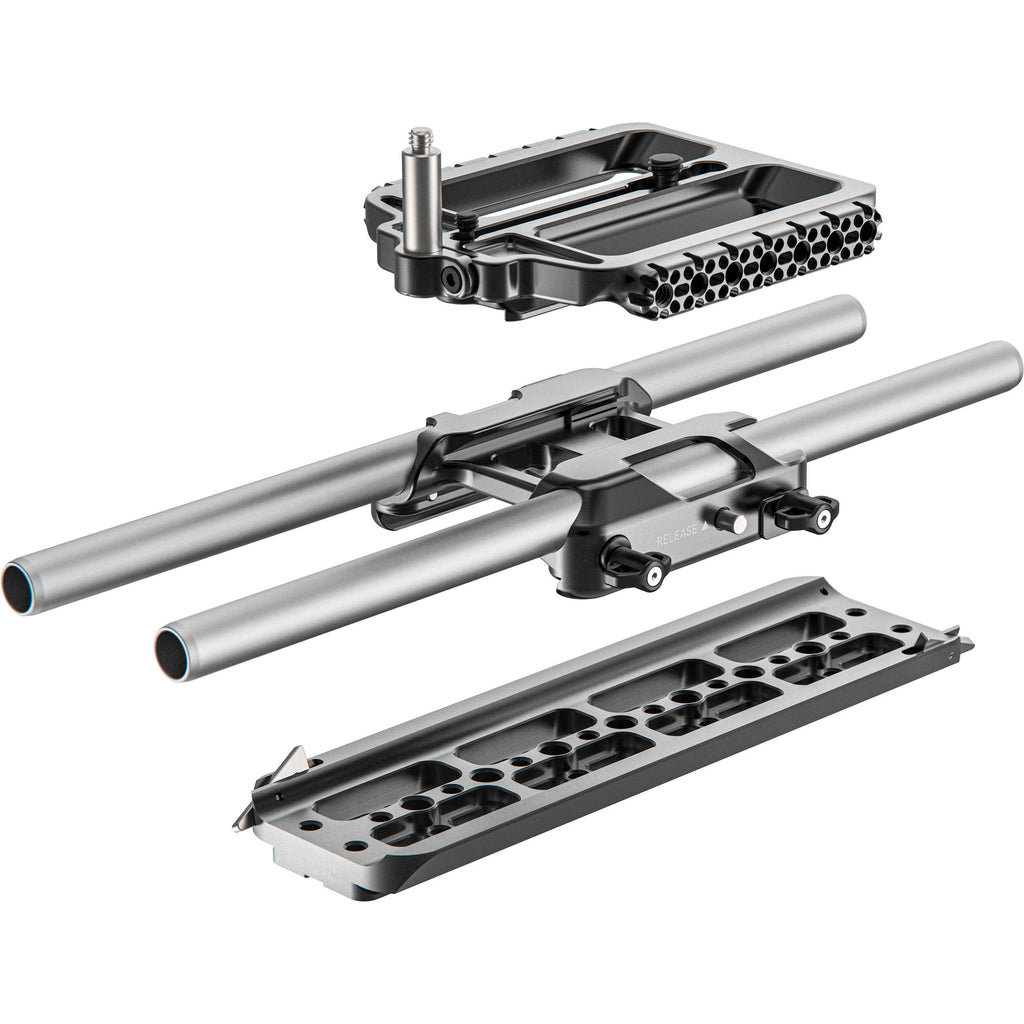

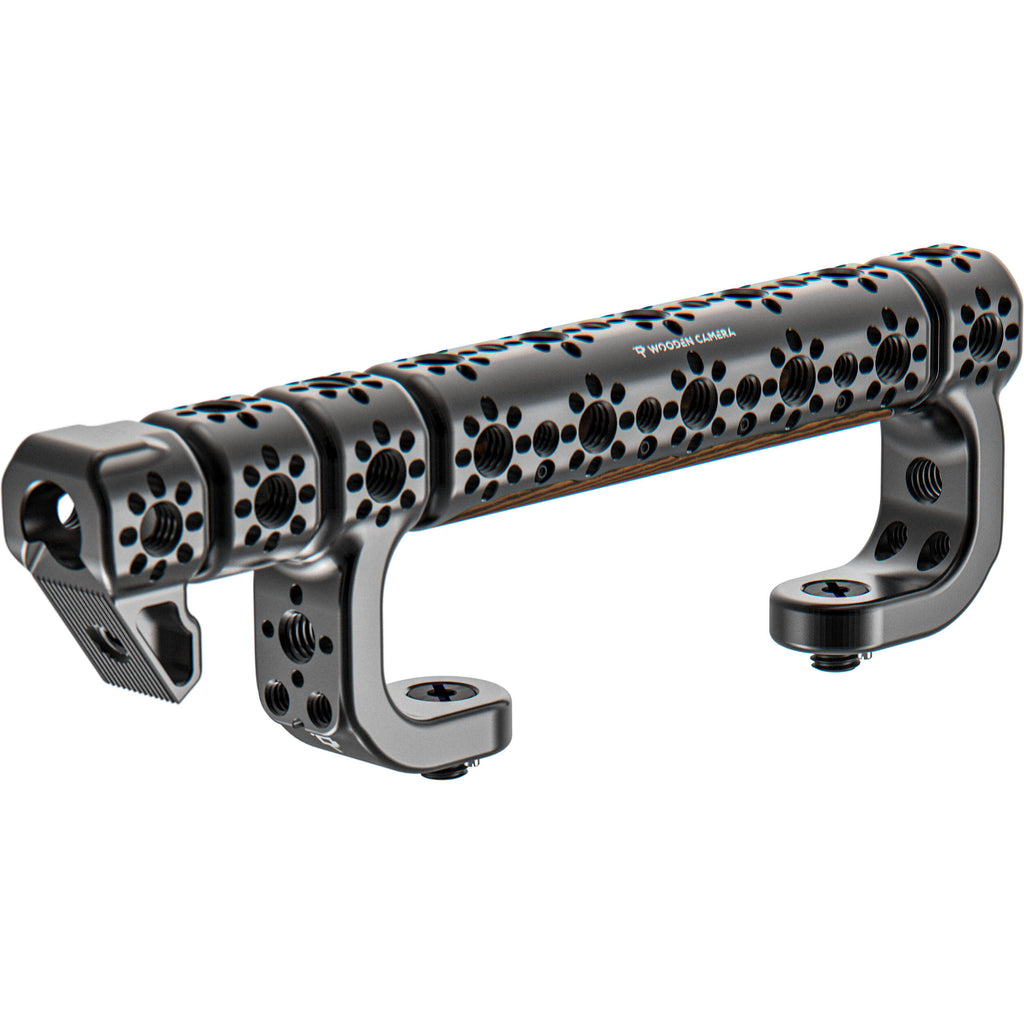

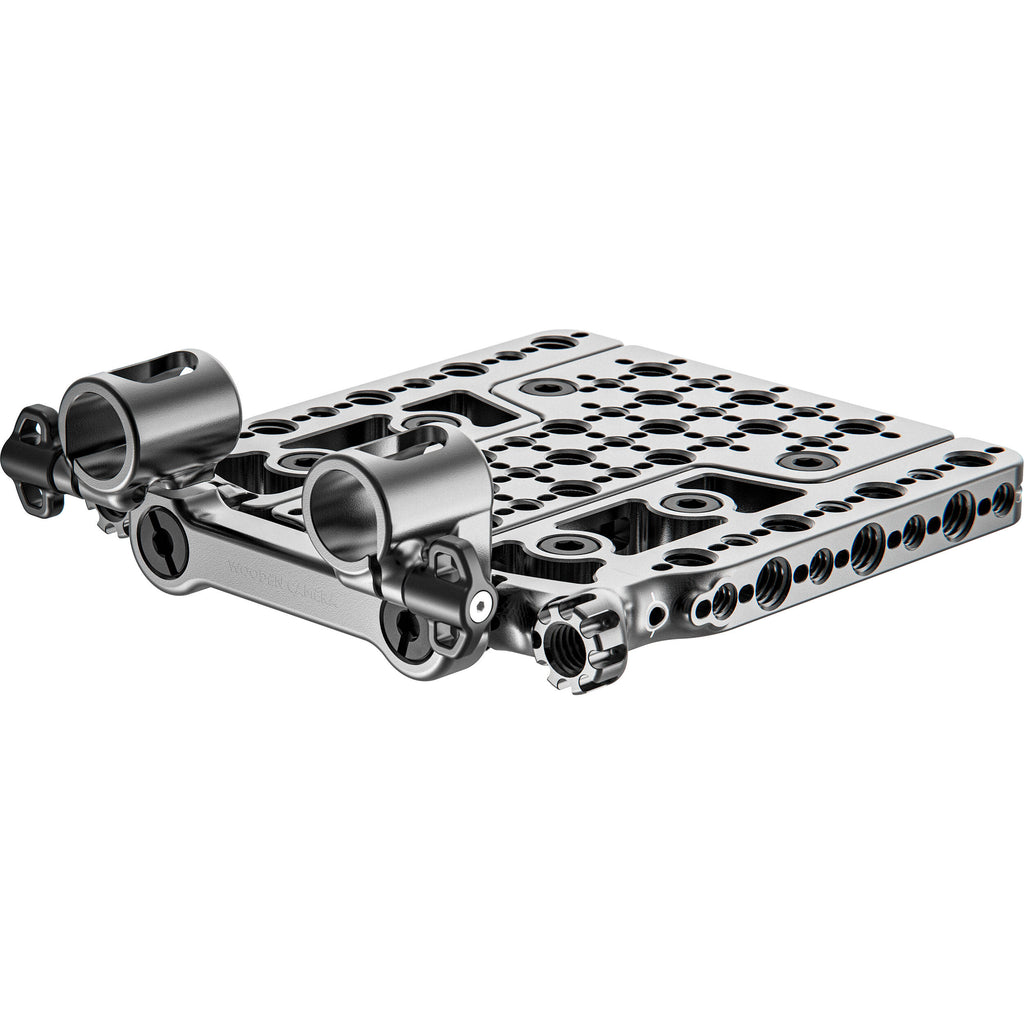

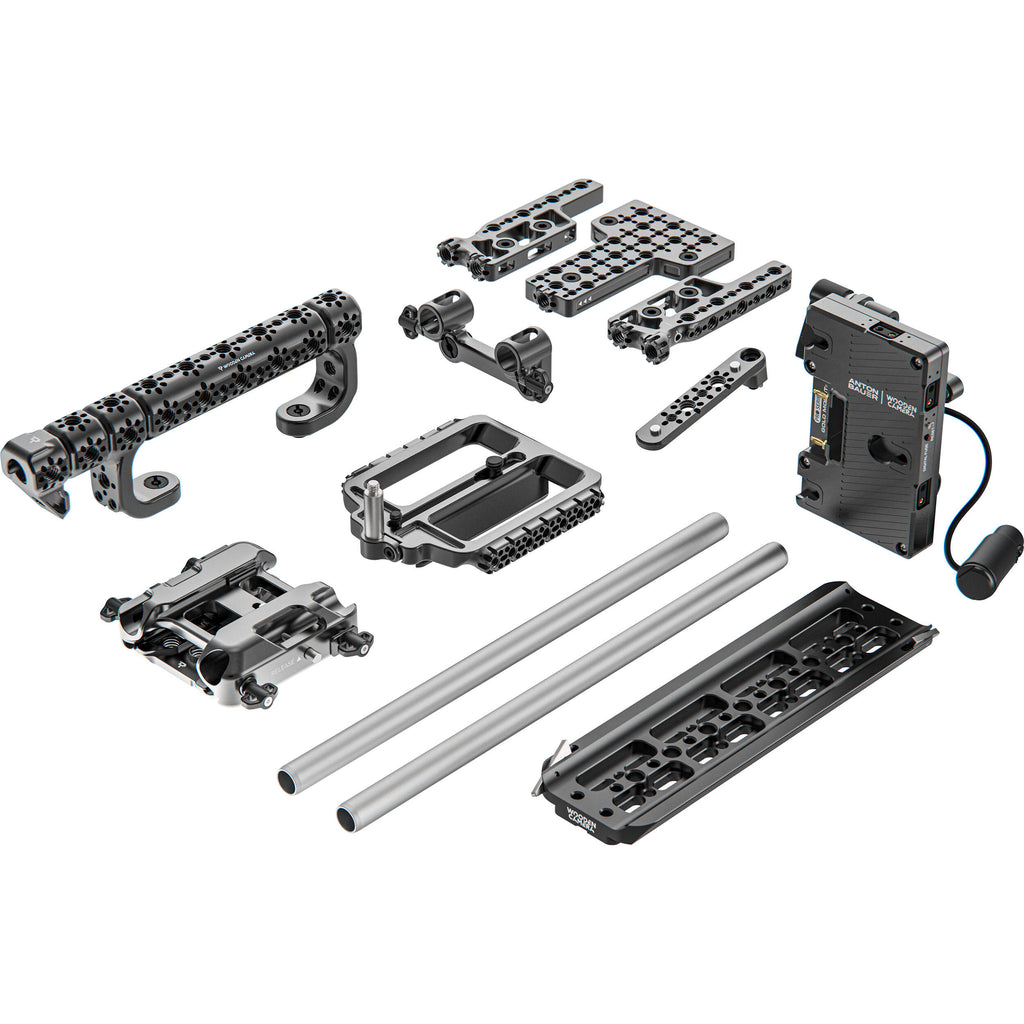

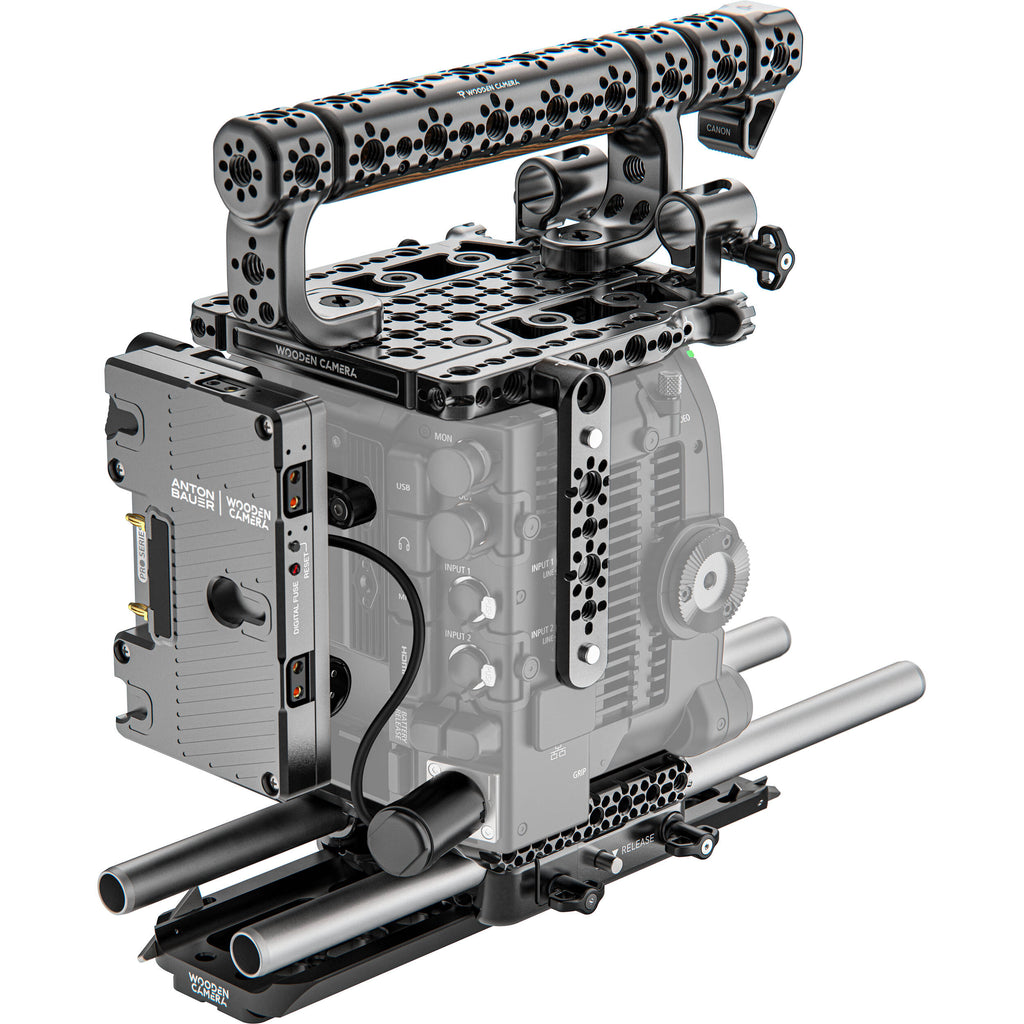

Add all the accessories you need to your Canon EOS C400 cinema camera with this Elite Accessory System from Wooden Camera. The modular system includes an Arca-type baseplate with an Arca-type riser system, a top plate system with two left/right plates and a center plate, an Ultra Handle 5" standard kit, a bolt-on EVF adapter for the Ultra Handle, a NATO side rail, an 8" safety dovetail plate, two 12" long 15mm rods, and a pro Gold mount battery slide.
The system provides tripod, shoulder pad, dovetail, 15mm rod, and bridge plate mounting options, lens support, a full top handle assembly with EVF mounting, multiple 1/4"-20 and 3/8"-16 accessory threads, and a NATO rail for mounting numerous accessory types. The battery slide mounts directly onto the back of the camera and can power the camera and accessories using a 4-pin XLR connector and three D-Tap outputs.
Add a professional high-capacity battery to power your Canon C300 Mark III or C500 Mark II cinema camera with this Gold mount Battery Slide from Wooden Camera. The battery slide mounts onto your camera using its captive screws and sits at an angle with a movable hinge to allow you to access the camera's BP-U battery.
The slide mounts a single Gold mount battery and powers the camera using a 4-pin XLR cable, which also provides hot-swap capability with the camera's internal battery. There are three D-Tap outputs around the battery plate to power a variety of other accessories.
Gold mount battery
Mount your 15mm EVF adapter for the Canon C400 onto your Ultra Handle rig with this Bolt-On Canon EVF Adapter for Ultra Handle from Wooden Camera. The adapter mounts onto the Ultra Handle front riser or the 1" Ultra Handle extension, part of the Ultra Handle 5" kit. There are two 3/8"-16 threads to mount extensions, as well as the Canon EVF mount. It mounts using a 3/8"-16 screw.
The NATO Side Rail from Wooden Camera attaches to the separately available Canon C400 top plate and provides a NATO rail for accessories such as handgrips. It also features 1/4"-20 and 3/8"-16 mounting threads along the length of the rail for alternative mounting options. The rail can be mounted horizontally or vertically for different configurations, and it features anti-twist safety pins to keep accessories mounted securely.
The 8" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations.
This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength.
Items Included
- Wooden Camera Battery Slide for C300 Mark III and C500 Mark II (Gold Mount)
- Limited 1-Year Warranty
- Wooden Camera Baseplate System for Canon C400
- Wooden Camera Arca-Type Riser Plate for Canon C400
- Wooden Camera Arca-Type Baseplate for Canon C80/C400
- Wooden Camera Top Plate System for Canon C400
- Wooden Camera Center Top Plate for Canon C400
- 2 x Wooden Camera Top Plate for Canon C400 (Left/Right)
- Wooden Camera Dual Rod Clamp for ALEXA 35 Front Top Plate
- Wooden Camera Bolt-On Canon EVF Adapter for Ultra Handle
- Limited 1-Year Manufacturer Warranty
- Wooden Camera NATO Side Rail for Canon C400
- Limited 1-Year Manufacturer Warranty
- Wooden Camera Ultra Handle Standard Kit (Universal 3/8"-16)
- Wooden Camera Ultra Handle Extension (5")
- Wooden Camera Ultra Handle Extension (1")
- Wooden Camera Rear Ultra Handle Connector for Sony VENICE
- Wooden Camera Front Ultra Handle Connector for Sony VENICE
- Wooden Camera T-Handle Hex Wrench (3/16")
- Wooden Camera Safety Dovetail Plate (8")
- Limited 1-Year Manufacturer Warranty
- 2 x Wooden Camera 15mm Support Rod (12")
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wooden Camera Elite Accessory System for Cano... Specs
| Power Output |
XLR 4-Pin: VDC
D-Tap: VDC |
| Camera Power Method |
Connector
|
| Plate Front / Battery Mount |
Gold Mount
|
| Hot-Swap Support |
Yes
|
| Power Output |
XLR 4-Pin: VDC
D-Tap: VDC |
| Camera Power Method |
Connector
|
| Inputs/Outputs |
1x XLR 4-Pin
3x D-Tap |
| Plate Front / Battery Mount |
Gold Mount
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
Yes
|
| Indicator |
LED
|
| Dimensions |
6 x 4 x 1.75" / 15.2 x 10.2 x 4.45 cm
|
| Weight |
12.32 oz / 349.27 g
|
| Package Weight |
0.9 lb
|
| Box Dimensions (LxWxH) |
6.7 x 4.3 x 3.3"
|
Wooden Camera Elite Accessory System for Cano... Specs
| Compatibility |
Canon C400 Cinema Camera
Wooden Camera 15mm EVF Adapter for Canon C400 EVF / Ultra Handle Front Riser / Ultra Handle 1" Extension / Ultra Handle 5" Kit |
| Mounting |
1x 3/8"-16 Screw
2x 3/8"-16 Threads |
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Dimensions |
1.8 x 1.3 x 1.1" / 44.9 x 33.6 x 27.1 mm
|
| Weight |
1.6 oz / 44.4 g
|
| Package Weight |
0.1 lb
|
| Box Dimensions (LxWxH) |
2.3 x 1.65 x 1.3"
|
Wooden Camera Elite Accessory System for Cano... Specs
| Compatibility |
Canon C400 Cinema Camera
|
| Mounting |
1x NATO Rail
Multiple 1/4"-20 Threads Multiple 3/8"-16 Threads 1x 1/4"-20 Screw |
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Dimensions |
3.8 x 1 x 0.8" / 97.5 x 25 x 21.2 mm
|
| Weight |
1.1 oz / 31.5 g
|
| Package Weight |
0.065 lb
|
| Box Dimensions (LxWxH) |
4.3 x 1.45 x 0.9"
|
Wooden Camera Elite Accessory System for Cano... Specs
| Dimensions |
8.0 x 2.7 x 0.5" / 20.3 x 6.8 x 1.3 cm
|
| Weight |
0.6 lb / 0.3 kg
|
| Package Weight |
0.635 lb
|
| Box Dimensions (LxWxH) |
9 x 2.8 x 0.65"
|
Wooden Camera Elite Accessory System for Cano... Specs
| Rod Size |
15 mm
|
| Rod Length |
12" (30.5 cm)
|
| Package Weight |
0.34 lb
|
| Box Dimensions (LxWxH) |
12.05 x 1.35 x 0.6"
|
