Description
ViewZ VZ-238PM Overview

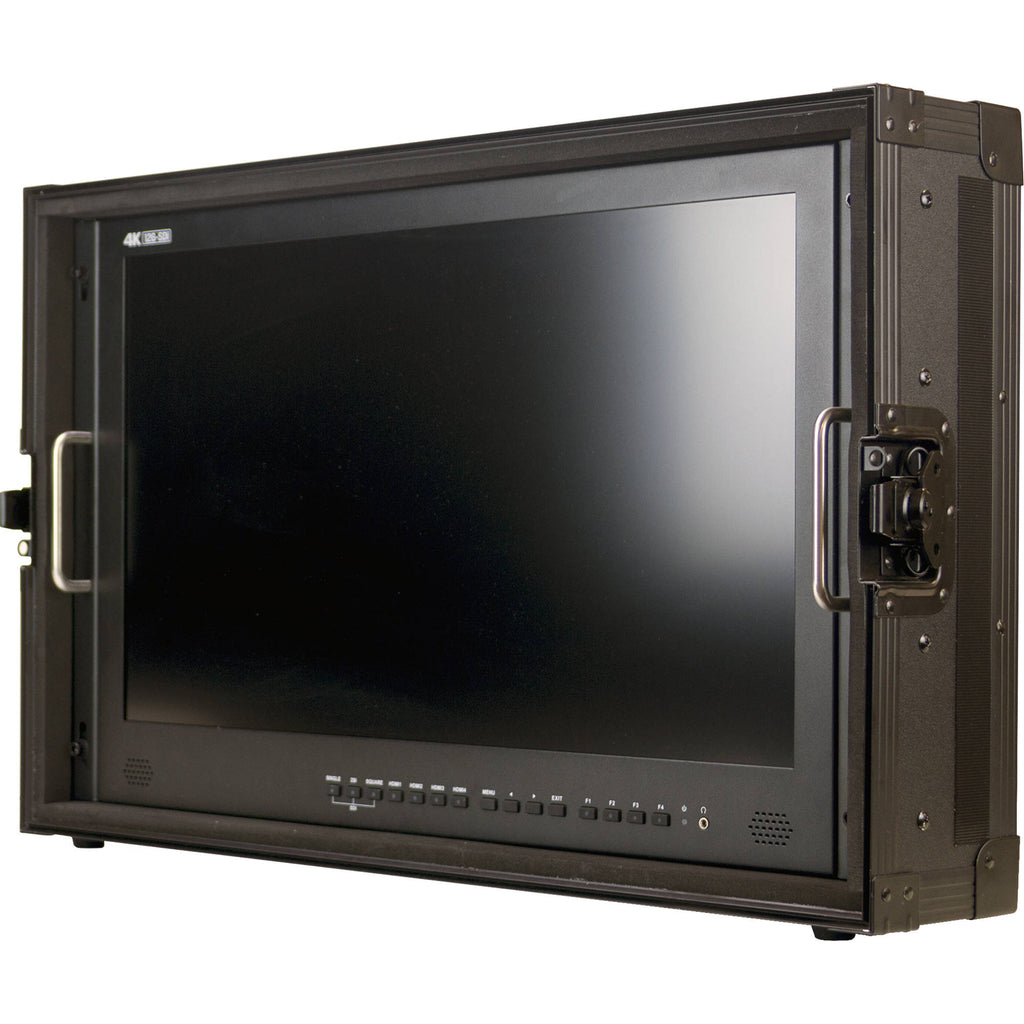

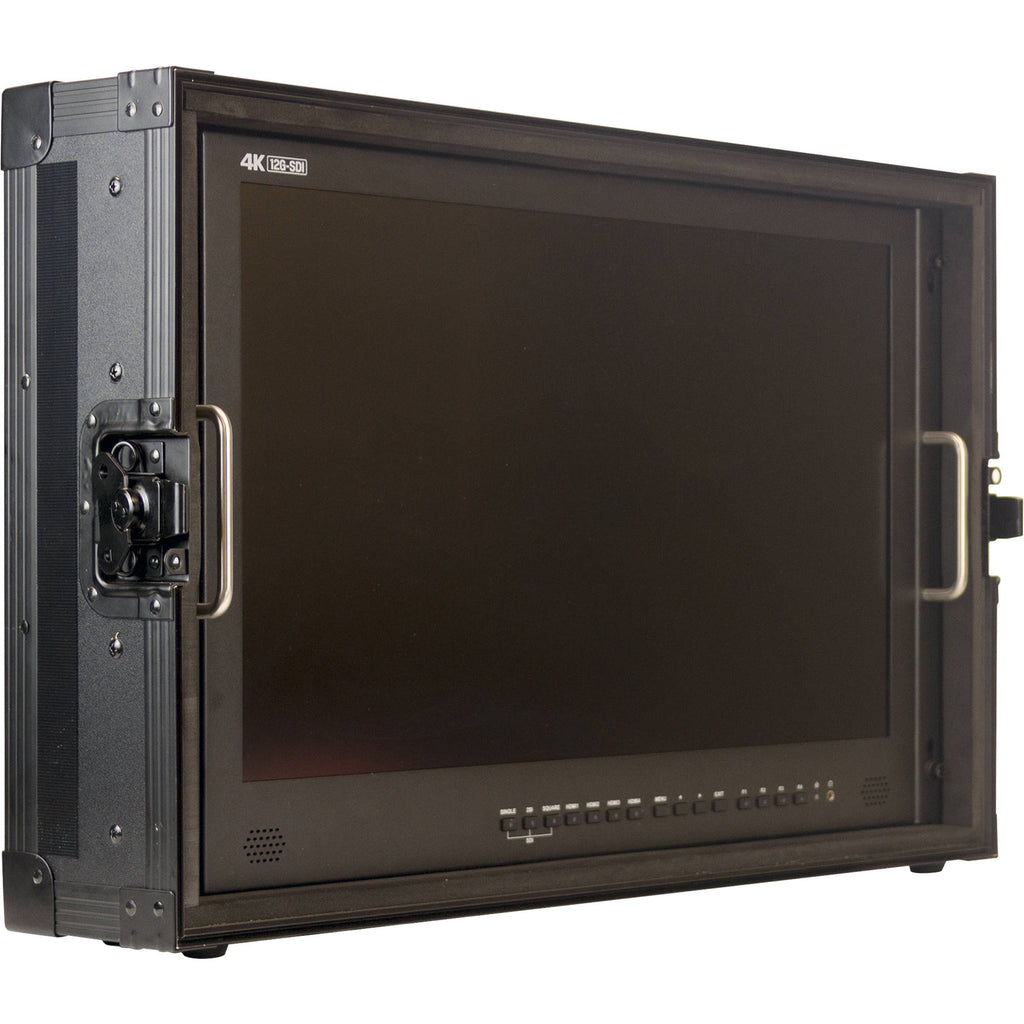

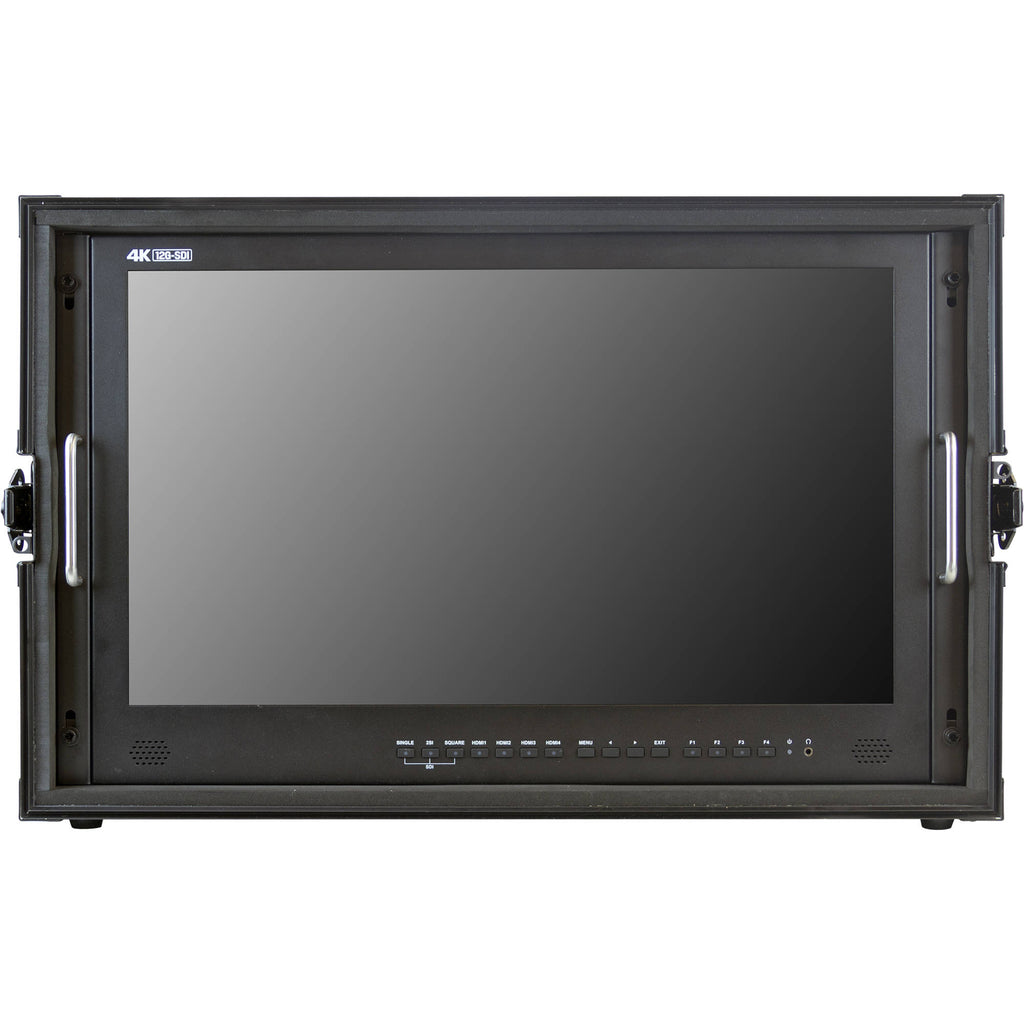

The 23.8" DCI 4K 12G-SDI Broadcast Monitor from ViewZ supports 12G-SDI, 6G-SDI, 3G-SDI (Level A, DL-B, and DS-B), HD-SDI, SD-SDI, and HDMI input, making it a versatile choice for 4K filmmaking and photography. With a 16:9 aspect ratio and 300:1 contrast ratio, the IPS LCD panel displays 4K and Full HD images, and it also supports NTSC and PAL SD resolutions.
The 3840 x 2160 monitor can input up to 4096 x 2160 at 60 fps via two 12G-SDI, two 3G-SDI, or four HDMI inputs. The SDI loop-through function allows you to output up to 12G-SDI to other compatible devices. 3D LUTs are also supported for color calibration such as gamma, gamut, and color temperature. The monitor has four user-definable buttons and supports features such as markers, pixel-to-pixel, overscan, audio meter, rotate, mirror, peaking, freeze, H/V delay, and false color.

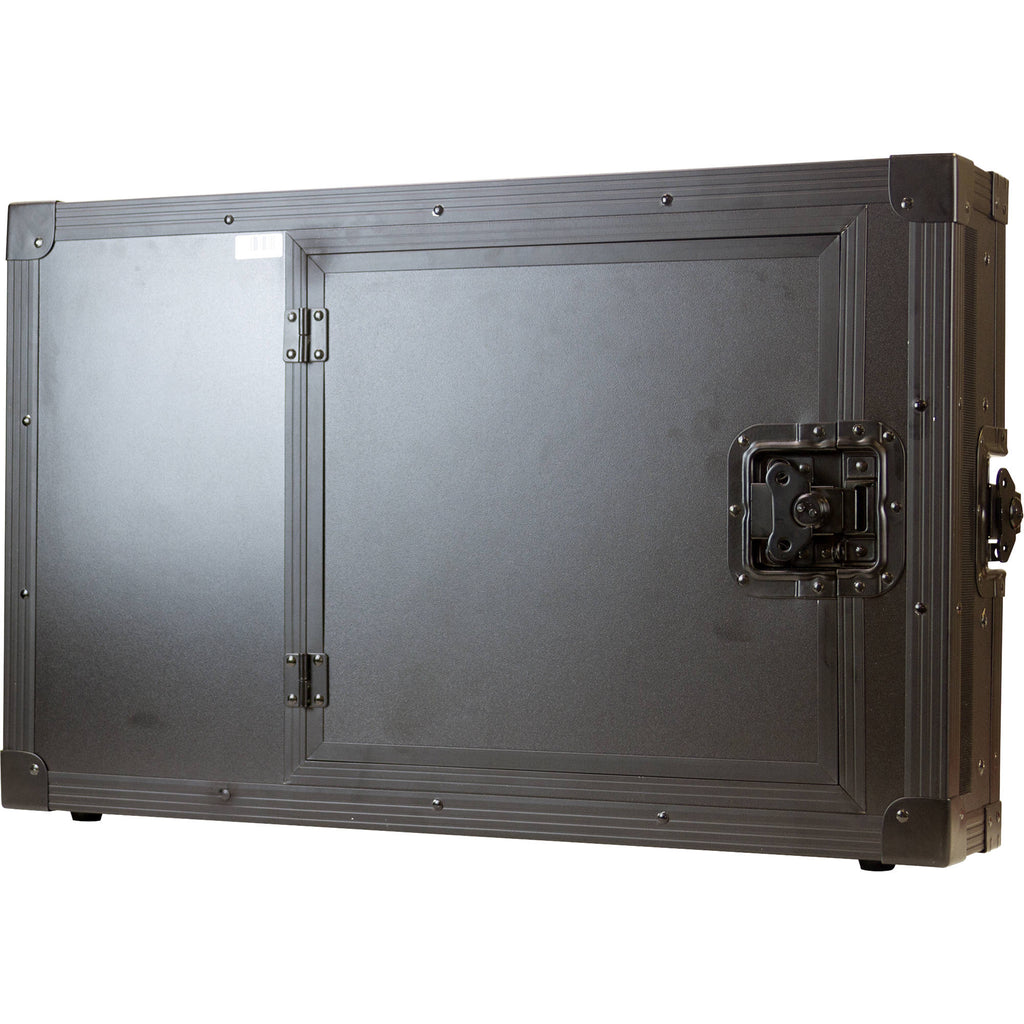

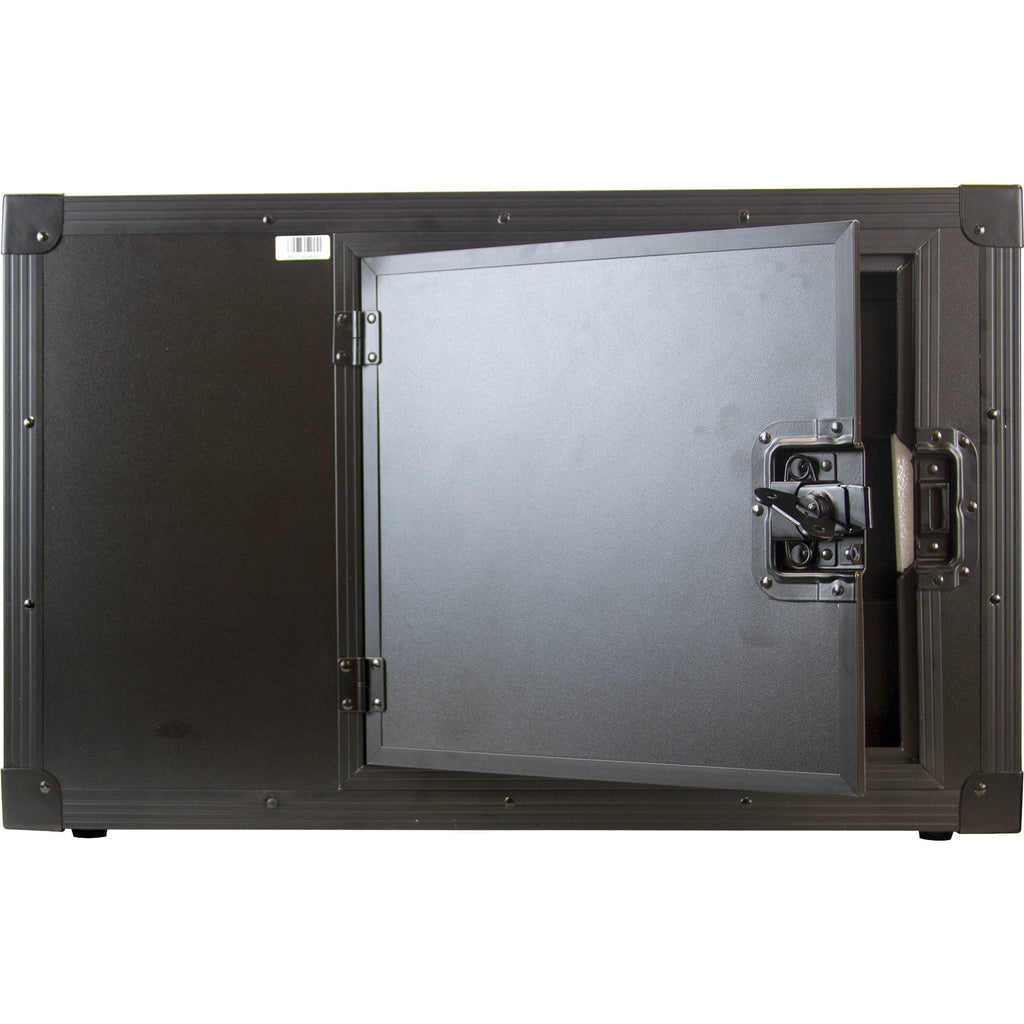

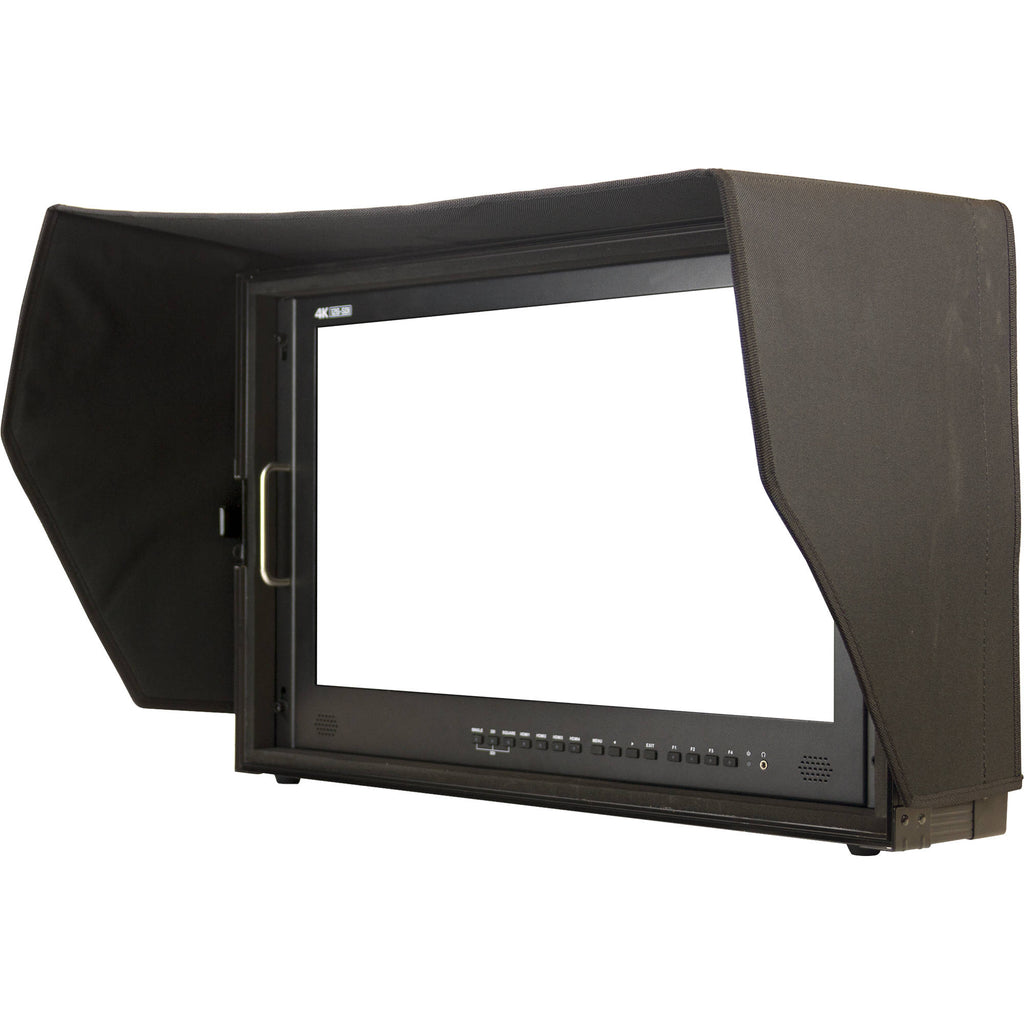

The monitor can be mounted onto the included adjustable table stand and carried in the included aluminum carry case. Also included with the monitor are a V-Mount battery plate, a sun hood, a 4-pin XLR cable, a DB-9 tally cable, a 15 VDC power adapter, and a belt to secure the power adapter.
In the Box
- ViewZ 23.8" DCI 4K 12G-SDI Broadcast Monitor
- Desktop Stand
- V-Mount Battery Bracket
- Sun Hood
- 15 VDC Power Adapter
- Adapter Belt
- Tally Cable
- Aluminum Carry Case
- Limited 2-Year Warranty
ViewZ VZ-238PM Specs
| Panel Type | IPS-Type LCD |
| Display Size | 23.8" / 60.5 cm |
| Resolution | 3840 x 2160 |
| Screen Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | No |
| Maximum Brightness | 300 cd/m2 |
| Contrast Ratio | 1000:1 |
| Dot Pitch | 0.13725 x 0.13725 mm |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Real-Time LUT Monitoring | SDR |
| Image Controls | Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Pixel-to-Pixel Zoom, Screen Markers |
| Video | 2 x BNC (12G-SDI) Input 2 x BNC (12G-SDI) Output 2 x BNC (3G-SDI) Input 2 x BNC (3G-SDI) Output 4 x HDMI Type A (HDMI 1.4) Input |
| Embedded Audio | SDI: 16-Channel HDMI: 16-Channel |
| Audio | None |
| Built-In Speaker | 2 x 1 W |
| Power | 1 x 4-Pin XLR (15 VDC) Input |
| Other I/O | 1 x Tally (DE-9/DB-9) 1 x USB 2.0 (USB Type-A) |
| Card Slot | None |
| Video Format | SDI (8/12-Bit 4:4:4/4:2:2) DCI 4K: 60/59.94/50/48/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/48 1080p: 60/59.94/50/48/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576i 480i HDMI (8/12-Bit 4:4:4/4:2:2) DCI 2K 1080p 720p |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 12 to 24 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 34 W (Maximum) |
| Operating Temperature | 32 to 140°F / 0 to 60°C |
| Operating Humidity | 90% |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
