Description
Venus Optics Laowa Ranger 3-Lens Kit Overview

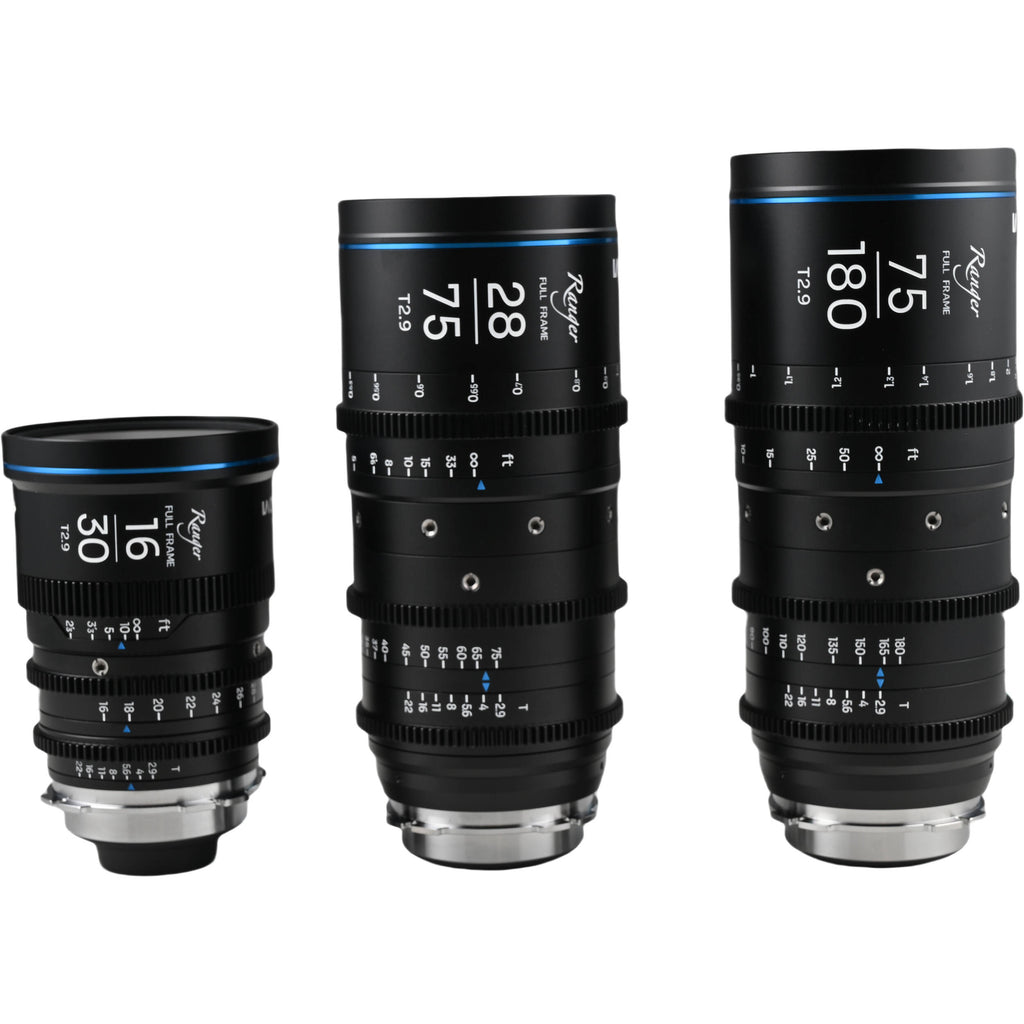

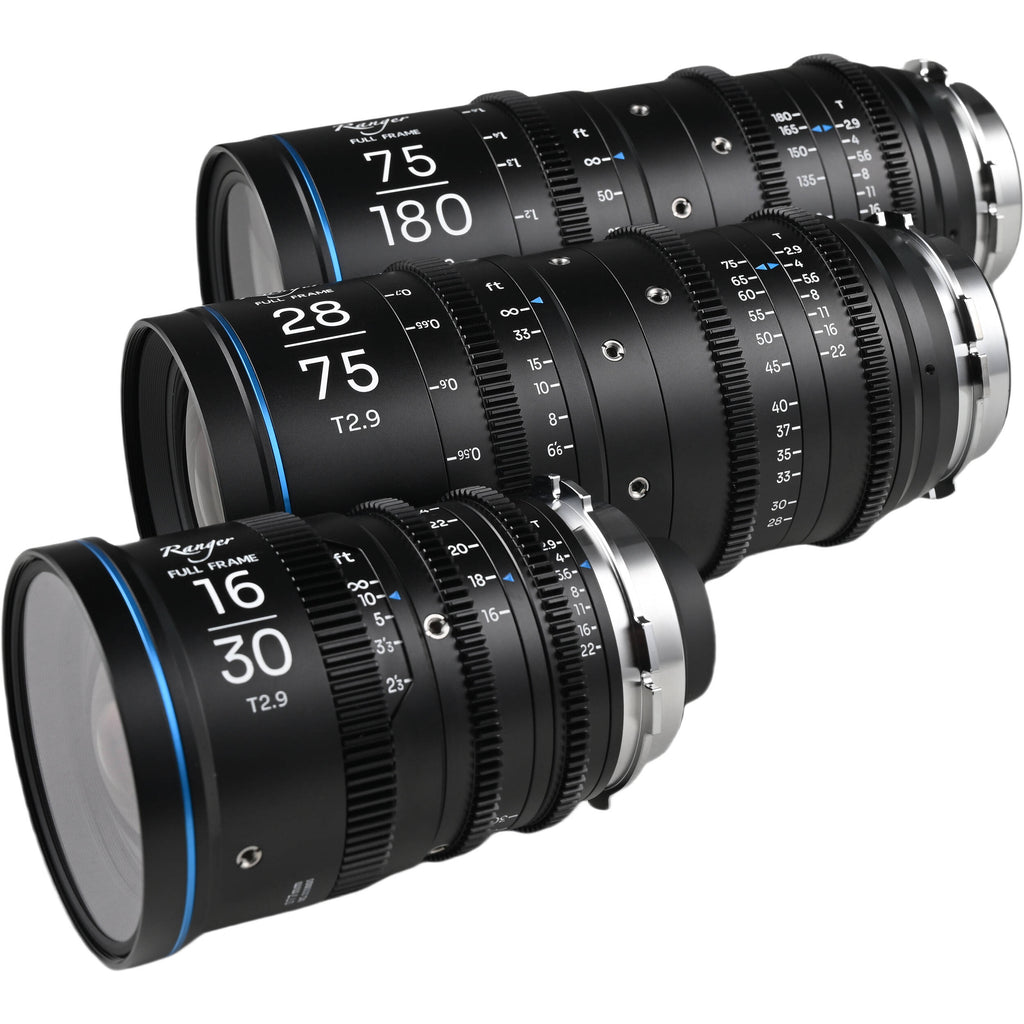

The Laowa Ranger Full Frame Cine 3-Lens Kit from Venus Optics bundles three powerful yet compact zoom lenses into one comprehensive kit to give users maximum versatility in the field. Whether capturing wide-angle vistas, intimate scenes, or shooting wildlife, this kit has got you covered. Included in the kit is a 16-30mm lens, a 28-75mm lens, and a 75-180mm lens.

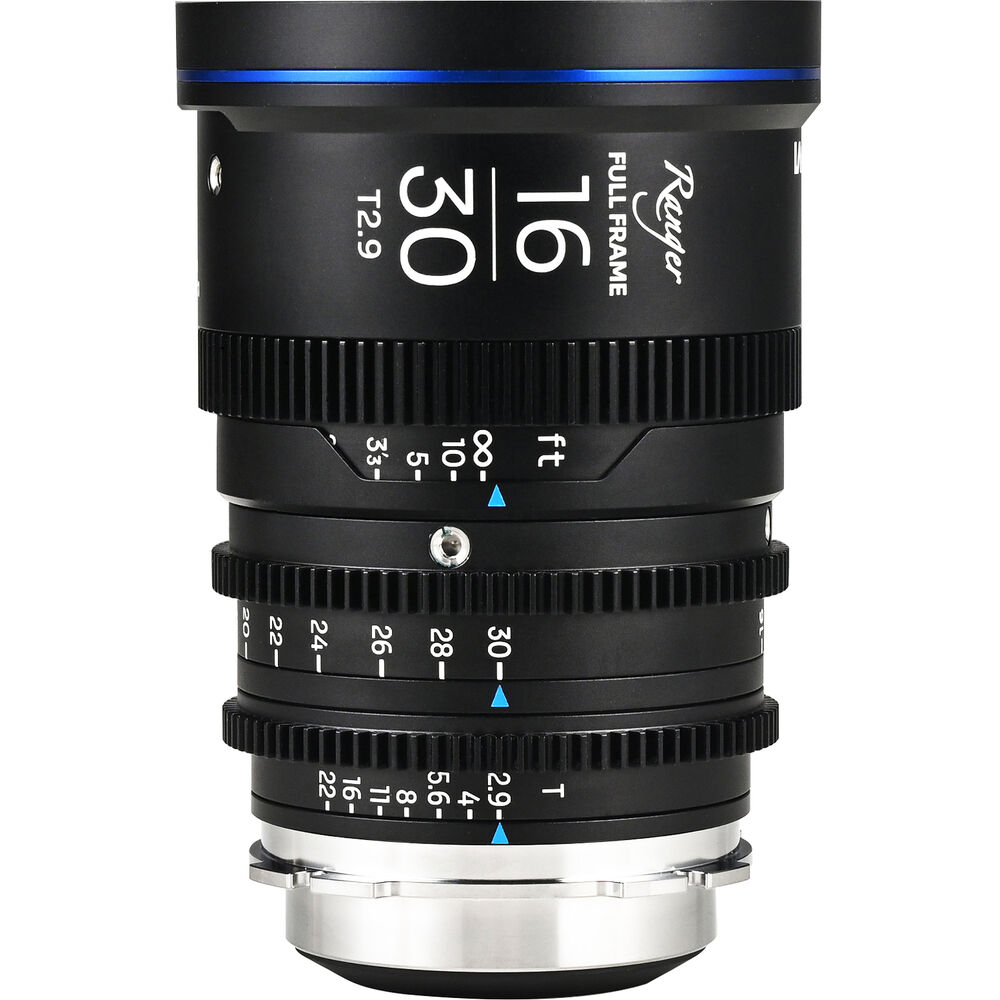

A versatile addition to your full-frame ARRI PL or Canon EF mount camera loadout, this Laowa Ranger 16-30mm T2.9 Cine Zoom Lens from Venus Optics allows you to capture high-quality images throughout its 16 to 30mm zoom range. The parfocal design of the lens features 11 aperture blades in an 18-element and 22-group construction. It has an aperture range of T2.9 to T22 and an 80mm front outside diameter with minimal focus breathing. Capture everything from establishing wide shots to close-ups with background blur with the Laowa Ranger.
Control of focus, aperture, and zoom is intuitive thanks to the throw of each 0.8 MOD gear. Markings on the lens are available in both feet and meters. The lens has a 107° field of view at the wide end and a 71.6° field of view at the telephoto end with a 43.2mm image circle. An included EF bayonet adapts the native PL mount for compatibility with a broader range of cameras, while a 77mm front filter thread allows you to attach compatible lens filters. Additional back focus adjustment can be achieved with the provided shim set.
- Maximum T2.9 aperture for deep depth of view and increased area focus
- 11 aperture blades for smooth, circular bokeh
- Lens construction of 18 elements in 12 groups
- 100° focus and zoom rotation, 42° aperture rotation
- Lens markings in feet and meters
- 0.15x maximum magnification, 1.88x zoom ratio
- EF mount bayonet included; built-in lens support foot
- 77mm front filter thread
- 13" minimum focusing distance
- Industry-standard 0.8 MOD focus, aperture, and zoom rings for use with follow focus systems

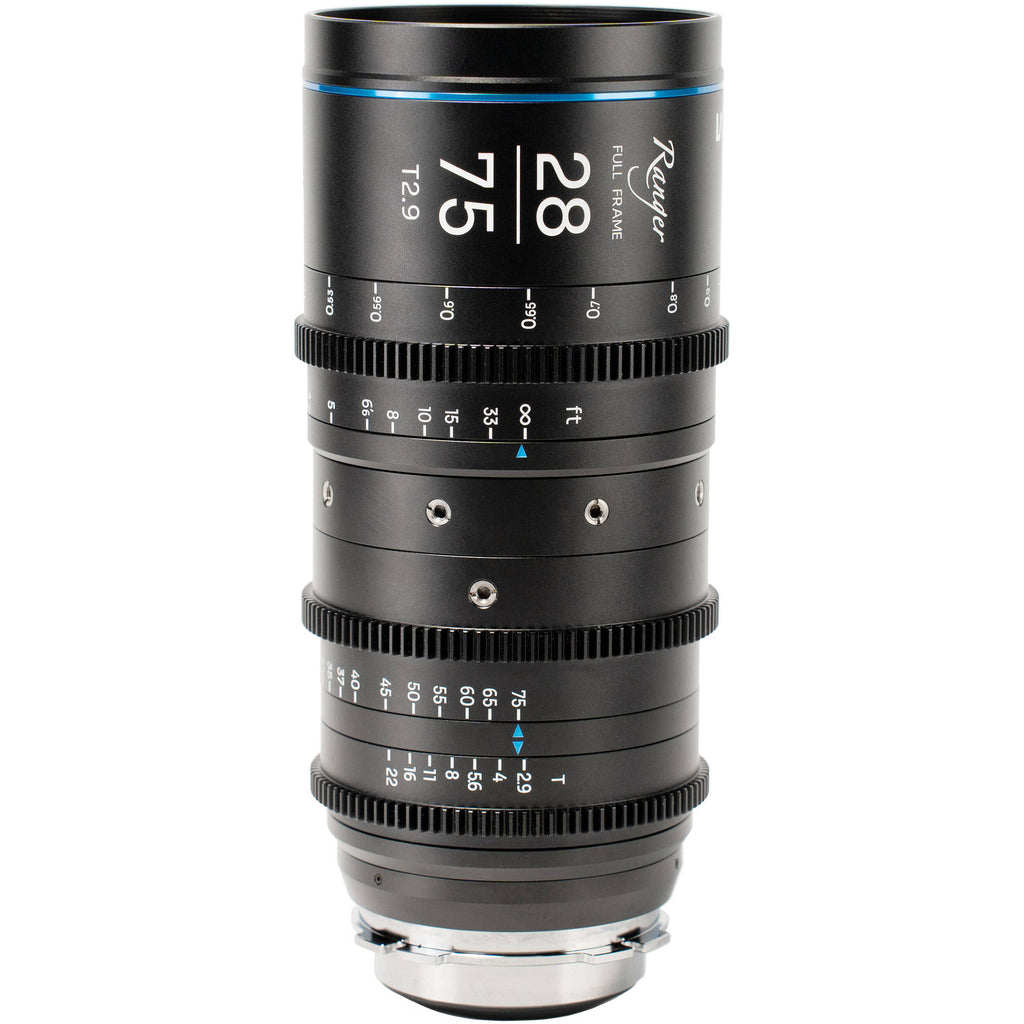

A versatile addition to your full frame ARRI PL or Canon EF mount camera loadout, this Laowa Ranger 28-75mm T2.9 Cine Zoom Lens from Venus Optics allows you to capture high-quality images throughout its 28 to 75mm zoom range. The parfocal design of the lens features 11 aperture blades in a 22-element and 18-group construction. It has an aperture range of T2.9 to T22 and an 80mm front diameter with minimal focus breathing. Capture everything from establishing wide shots to close-ups with background blur with the Laowa Ranger.
Control of focus, aperture, and zoom is intuitive thanks to the throw of each 0.8 MOD gear. Markings on the lens are available in both feet and meters. The lens has a 75.4° field of view at the wide end and a 32.3° field of view at the tele end with a 43.2mm image circle. An included EF bayonet adapts the native PL mount for compatibility with a wider range of cameras, while a 77mm front filter thread allows you to attach compatible lens filters. Additional back focus adjustment can be achieved with the provided shim set.
- Maximum T2.9 aperture for deep depth of view and increased area focus
- 11 aperture blades for smooth, circular bokeh
- Lens construction of 22 elements in 18 groups
- 270° focus rotation, 42° aperture rotation, 100° zoom rotation
- Lens markings in feet and meters
- 0.23x maximum magnification, 2.7x zoom ratio
- EF mount bayonet included; built-in lens support foot
- 77mm front filter thread
- 19.3" minimum focusing distance
- Industry-standard 0.8 MOD focus, aperture, and zoom rings for use with follow focus systems

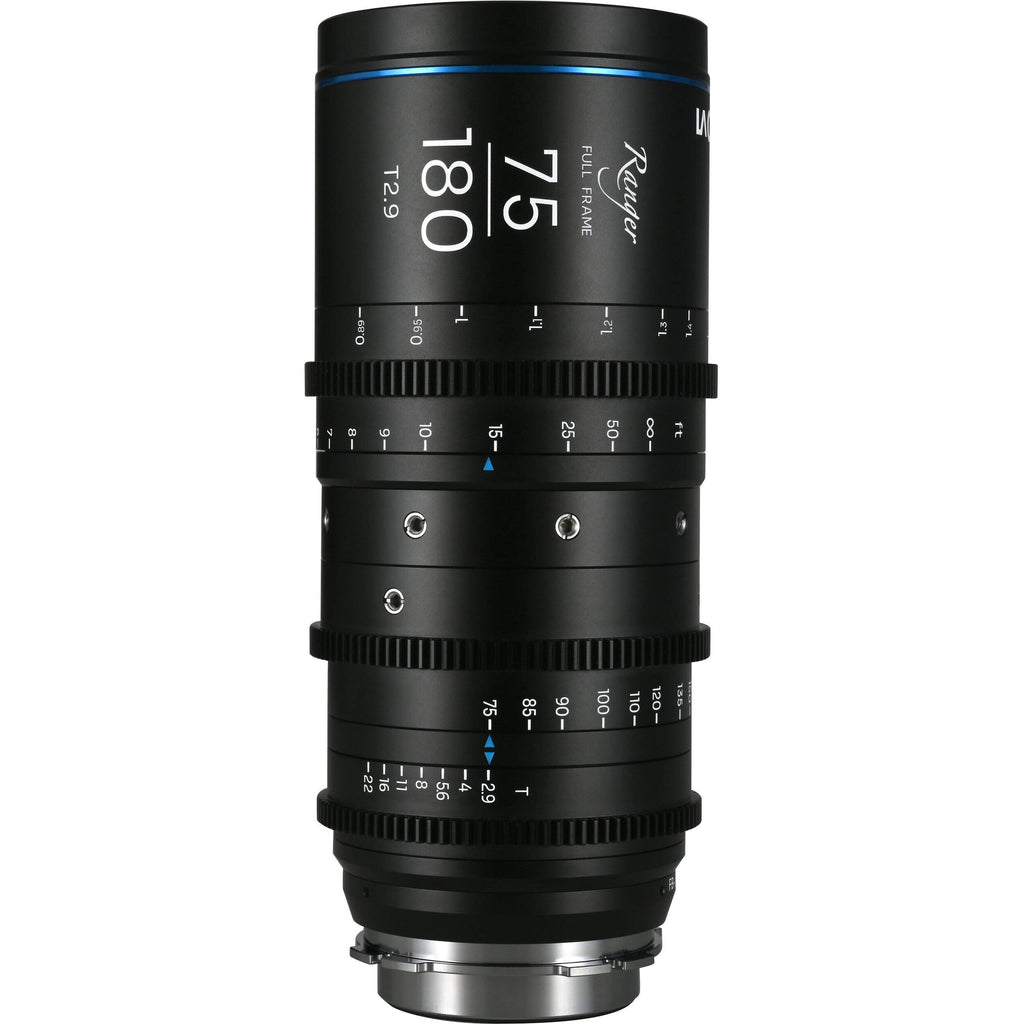

A versatile addition to your full frame ARRI PL or Canon EF mount camera loadout, this Laowa Ranger 75-180mm T2.9 Cine Zoom Lens from Venus Optics allows you to capture high-quality images throughout its 75 to 180mm zoom range. The parfocal design of the lens features 11 aperture blades in a 14-element and 14-group construction. It has an aperture range of T2.9 to T22 and an 80mm front diameter with minimal focus breathing. Capture everything from portraits to long-distance wildlife shots with the Laowa Ranger.
Control of focus, aperture, and zoom is intuitive thanks to the throw of each 0.8 MOD gear. Markings on the lens are available in both feet and meters. The lens has a 32.2° field of view at the wide end and a 13.7° field of view at the tele end with a 43.2mm image circle. An included EF bayonet adapts the native PL mount for compatibility with a wider range of cameras, while a 77mm front filter thread allows you to attach compatible lens filters. Additional back focus adjustment can be achieved with the provided shim set.
- Maximum T2.9 aperture for deep depth of view and increased area focus
- 11 aperture blades for smooth, circular bokeh
- Lens construction of 14 elements in 14 groups
- 270° focus rotation, 42° aperture rotation, 100° zoom rotation
- Lens markings in feet and meters
- 0.217x maximum magnification, 2.4x zoom ratio
- EF mount bayonet included; built-in lens support foot
- 77mm front filter thread
- 2.9' minimum focusing distance
- Industry-standard 0.8 MOD focus, aperture, and zoom rings for use with follow focus systems
Items Included
- Venus Optics Laowa Ranger 16-30mm T2.9 Cine Zoom Lens (PL/EF)
- EF Mount Bayonet
- Shim Set
- Hard Case
- Limited 3-Year Manufacturer Warranty
- Venus Optics Laowa Ranger 28-75mm T2.9 Cine Zoom Lens (PL/EF)
- EF Mount Bayonet
- Shim Set
- Hard Case
- Limited 3-Year Manufacturer Warranty
- Venus Optics Laowa Ranger 75-180mm T2.9 Cine Zoom Lens (PL/EF)
- EF Mount Bayonet
- Shim Set
- Hard Case
- Limited 3-Year Manufacturer Warranty
Additional Resources
Venus Optics Laowa Ranger 16-30mm T2.9 Cine Zoom Lens (PL/EF)
| Focal Length |
16 to 30mm
|
| Maximum Aperture |
T2.9
|
| Lens Mount |
ARRI PL
Canon EF |
| Lens Format Coverage |
Full-Frame
|
| Filter Thread |
77 mm
|
| Image Stabilization |
No
|
| Electronic Communication |
No
|
| Maximum Aperture |
T2.9
|
| Minimum Aperture |
T22
|
| Lens Mount |
ARRI PL
Canon EF |
| Interchangeable Mount |
Yes
|
| Lens Format Coverage |
Full-Frame
|
| Image Circle |
43.2 mm
|
| Angle of View |
Not Specified by Manufacturer
|
| Focus Scales |
Metric, Imperial
|
| Optical Design |
18 Elements in 12 Groups
|
| Filter Thread |
77 mm
|
| Zoom Ratio |
1.875x (Manual)
|
| Minimum Focus Distance |
From Camera Sensor: 13" / 33 cm
|
| Maximum Magnification Ratio |
1:0.145
|
| Aperture/Iris Blades |
11
|
| Image Stabilization |
No
|
| Gear Standard |
MOD
|
| Gear Rotation |
Focus: 270°
Zoom: 270° Iris: 42° |
| Electronic Communication |
No
|
| Diameter |
Front: 3.1" / 80 mm
Maximum: 3.1" / 80 mm |
| Length |
4.2" / 107.4 mm
|
| Weight |
1.8 lb / 799 g
|
| Package Weight |
7.315 lb
|
| Box Dimensions (LxWxH) |
14.4 x 12.5 x 6.8"
|
