Description
Product Overview

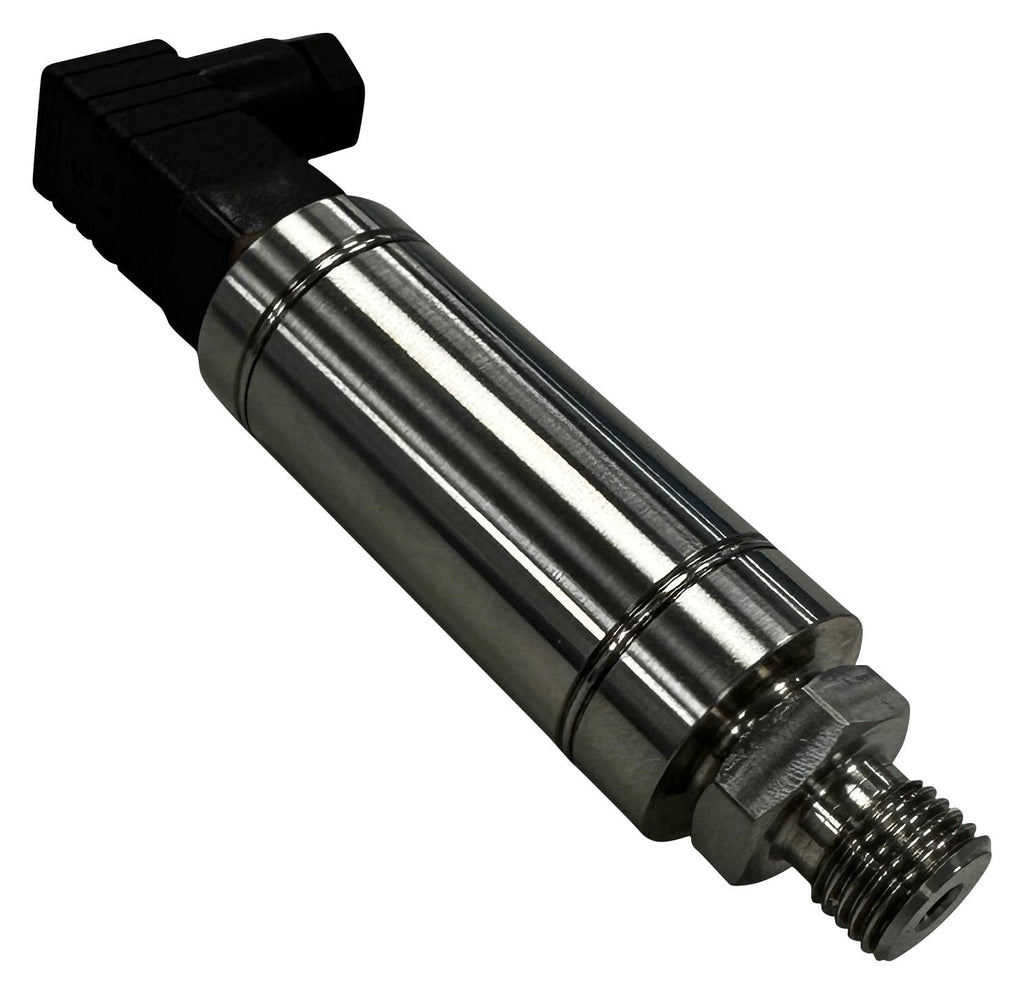

PA-BDVAC-400 is a Sensit HPS-B series pressure transducer. It is a four wire, millivolt output transducer with integral voltage regulator and amplifier offering superb chemical and corrosion resistance. Gauge pressure is detected using a four active arm strain gauge bridge sensor, fused to a high-purity ceramic diaphragm.
- Stainless steel housing, rugged construction
- Excellent linearity, excellent long term stability
- Wide temperature range
- 0 to 5V output type, NL&H <= 0.2%span BFSL accuracy classification
- DIN40050 IP65 plug & socket electrical connection
- Viton O-ring type, G¼� male - 316L stainless steel pressure port connection
- Pressure range from 0 to 400bar
Product details
Other details
| Brand | TT ELECTRONICS / ROXSPUR |
| Part Number | PA-BDVAC-400 |
| Quantity | Each |
| Technical Data Sheet EN |  |
