Description
Product Overview

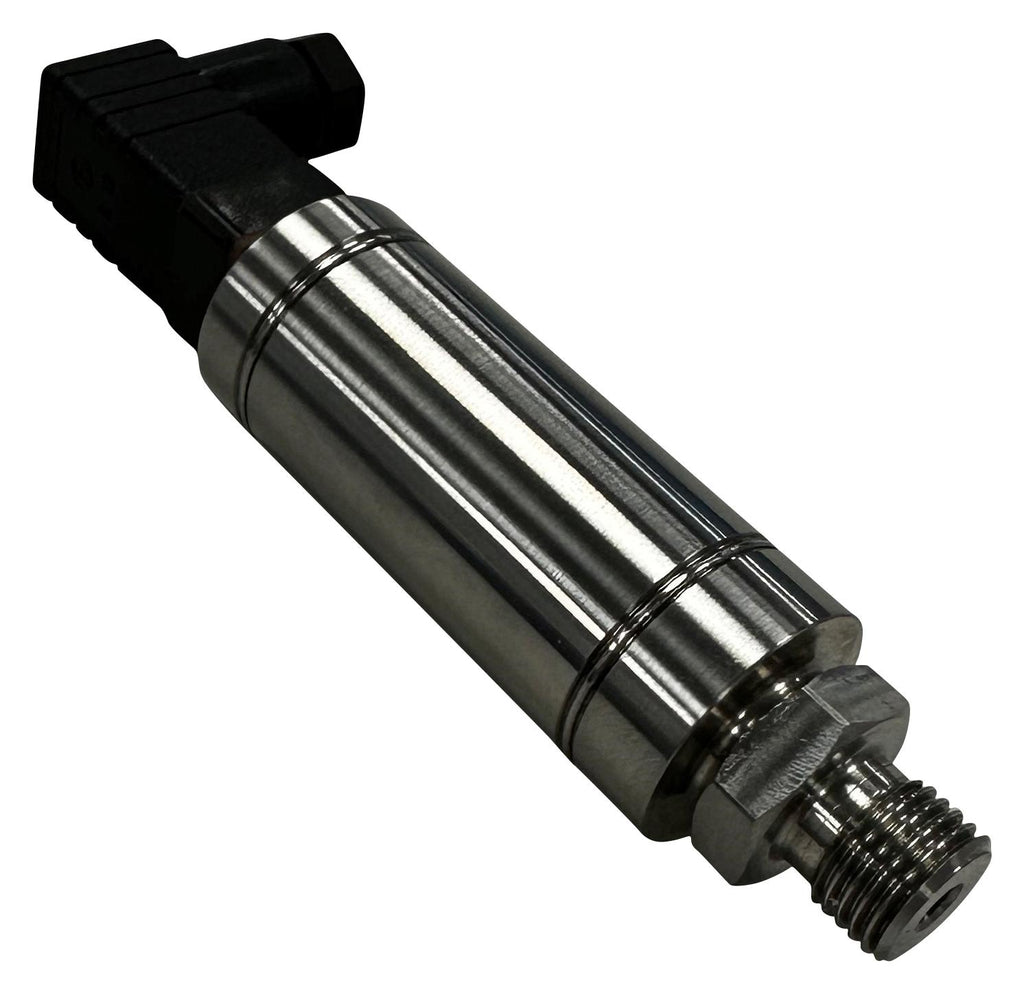

PA-ADVAC-100 is a Sensit HPS-A pressure transmitter. It is a two wire, 4-20mA output transmitter offering superb chemical and corrosion resistance. Gauge pressure is detected using a four active arm strain gauge bridge sensor, fused to a high-purity ceramic diaphragm.
- Stainless steel housing, rugged construction
- Excellent linearity, excellent long term stability
- Wide temperature range
- 4 to 20mA output type, NL&H <= 0.2%span BFSL accuracy classification
- DIN40050 IP65 plug & socket electrical connection
- Viton O-ring type, G¼� male - 316L stainless steel pressure port connection
- Pressure range from 0 to 100bar
Product details
Other details
| Brand | TT ELECTRONICS / ROXSPUR |
| Part Number | PA-ADVAC-100 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 38905.49 |
| 3-5 | ₹ 38508.5 |
| 5-10 | ₹ 37714.51 |
| 10+ | ₹ 36920.52 |
Bulk discount will be automatically applied during checkout based on quantity.
