Description
Product Overview

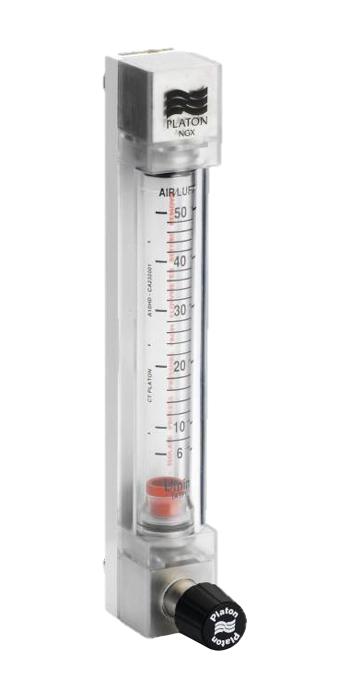

FNGVS321-AHD-B is a platon glass variable area flowmeter. This complete VA flowmeter consists of a glass flow tube and float scaled to the flow units required, and a frame to provide the end block supports and to cover and protect the tube.
- 100mm scale standard size flowmeter, built in needle valve with rear connections (end blocks style)
- Stainless end block material, viton O ring seals
- 1/4� BSPP process connection, hollow dural float material
- Air L/min media
- Improved industrialized construction, easy to use, high visibility scale
- Rear �blow out� safety vent, ergonomic design, UV stabilized rigid safety cover
- Operator confidence from float rotation, instantaneous response, accuracy up to ±1.25% FSD
- Customized scales, glass tube removal without tools, ATEX Infra-red alarm option
- Flow rate range from 6l/min to 50l/min
Product details
Other details
| Brand | TT ELECTRONICS / ROXSPUR |
| Part Number | FNGVS321-AHD-B |
| Quantity | Each |
| Technical Data Sheet EN |  |
