Description
Teradek XT 1500 Overview

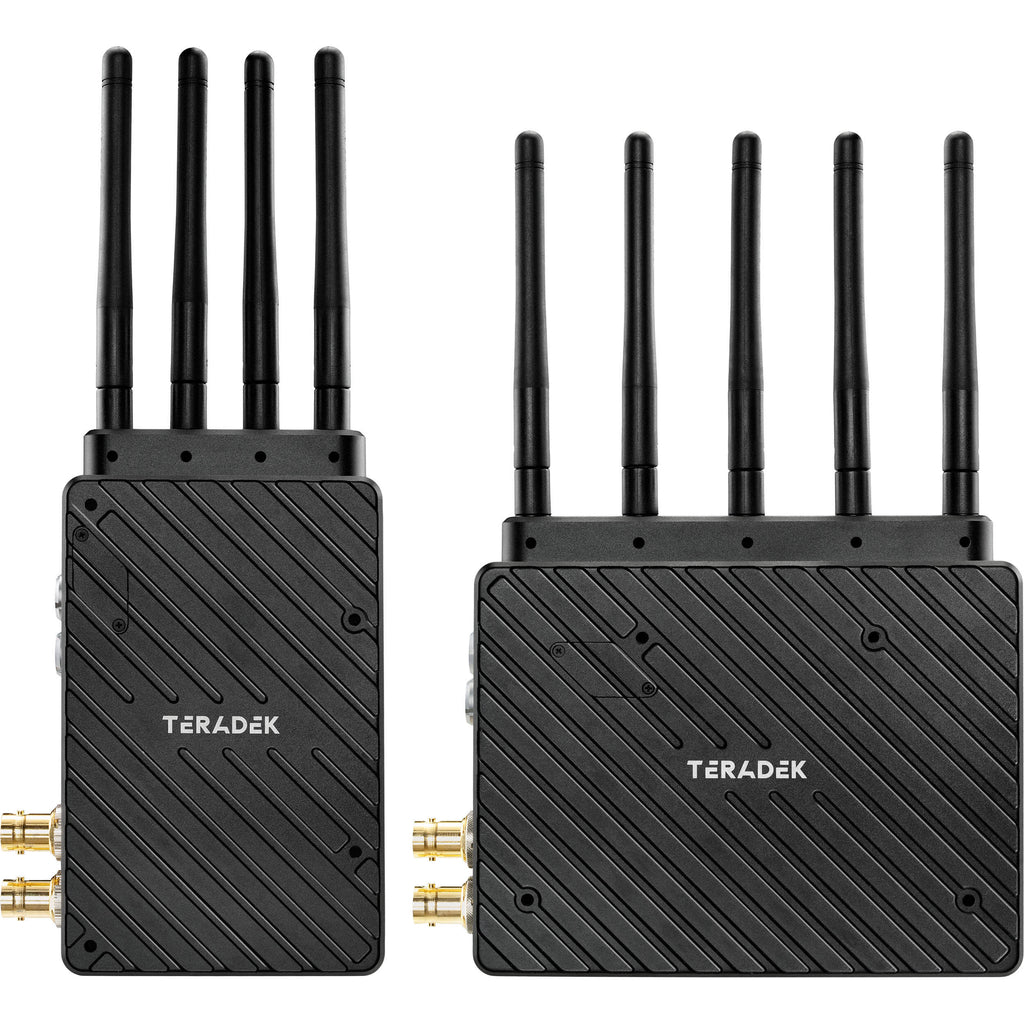

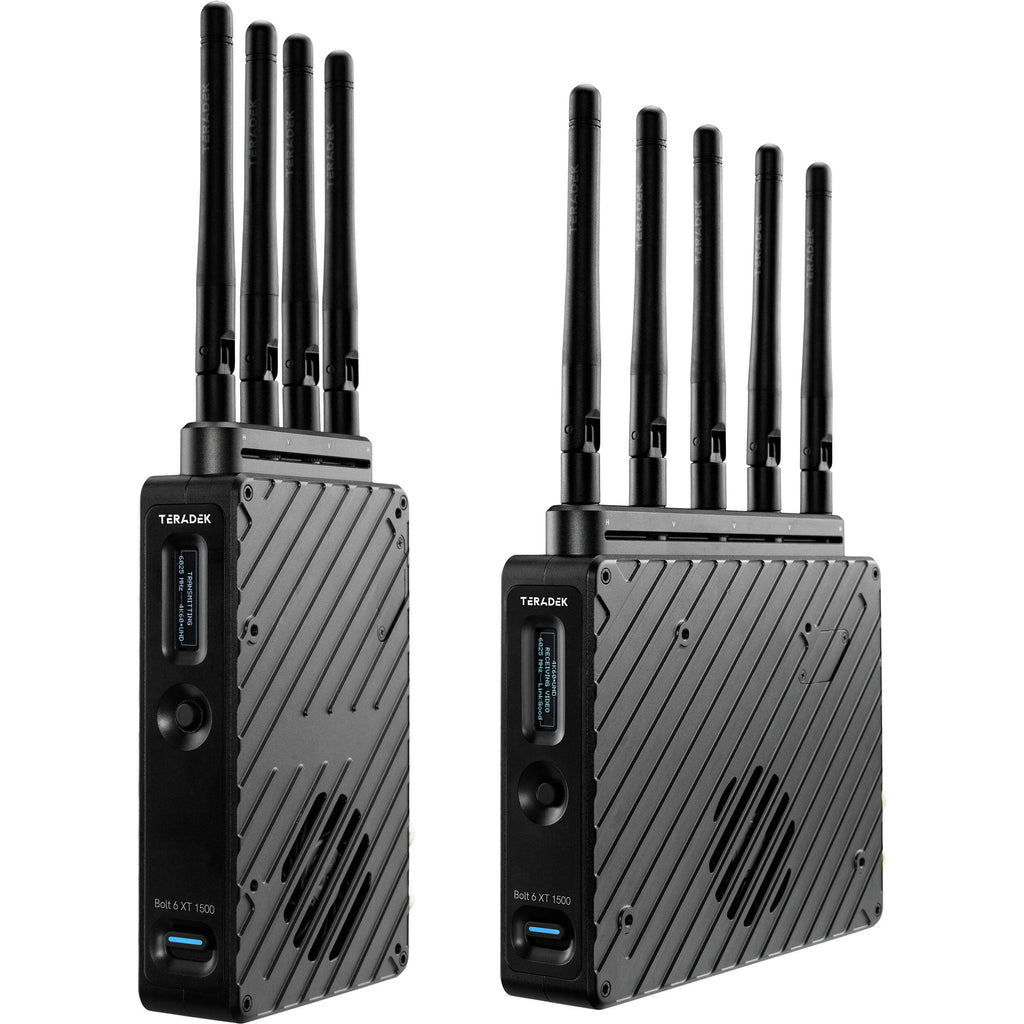

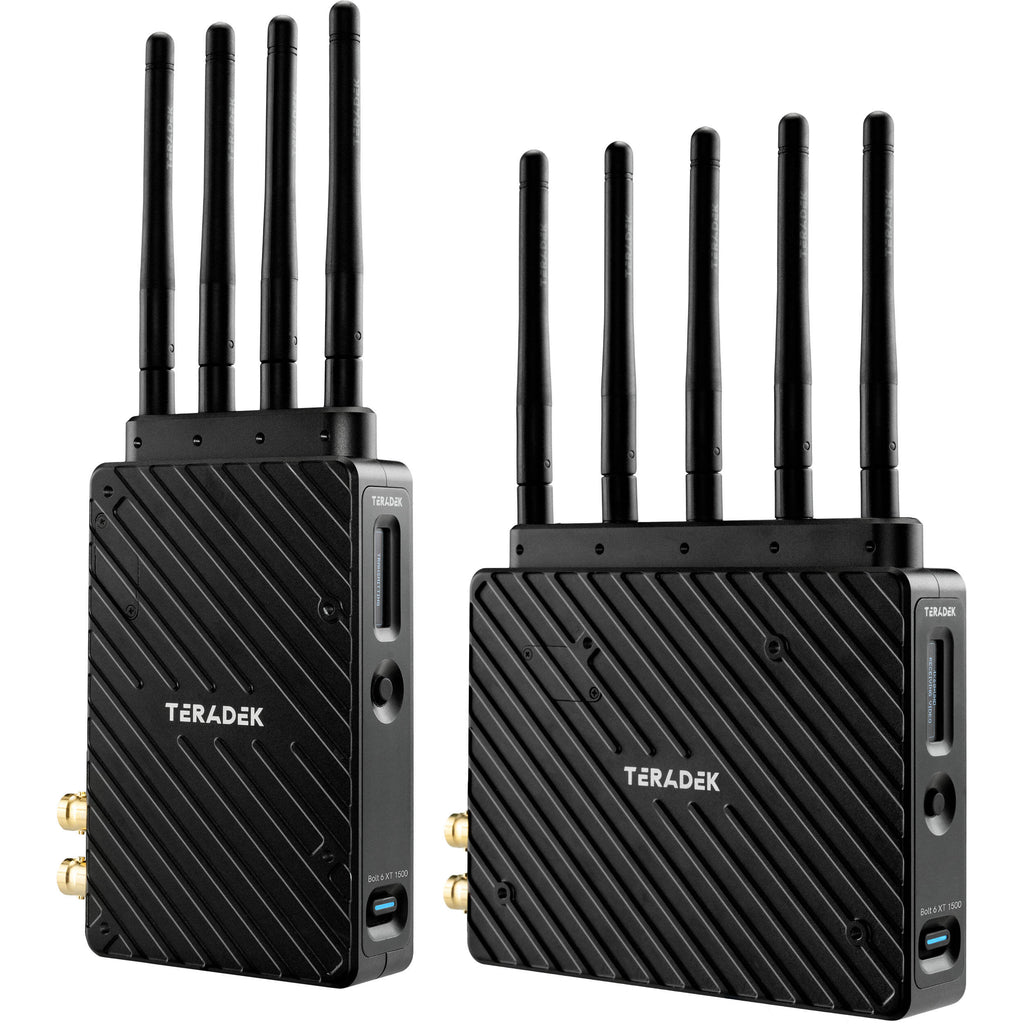

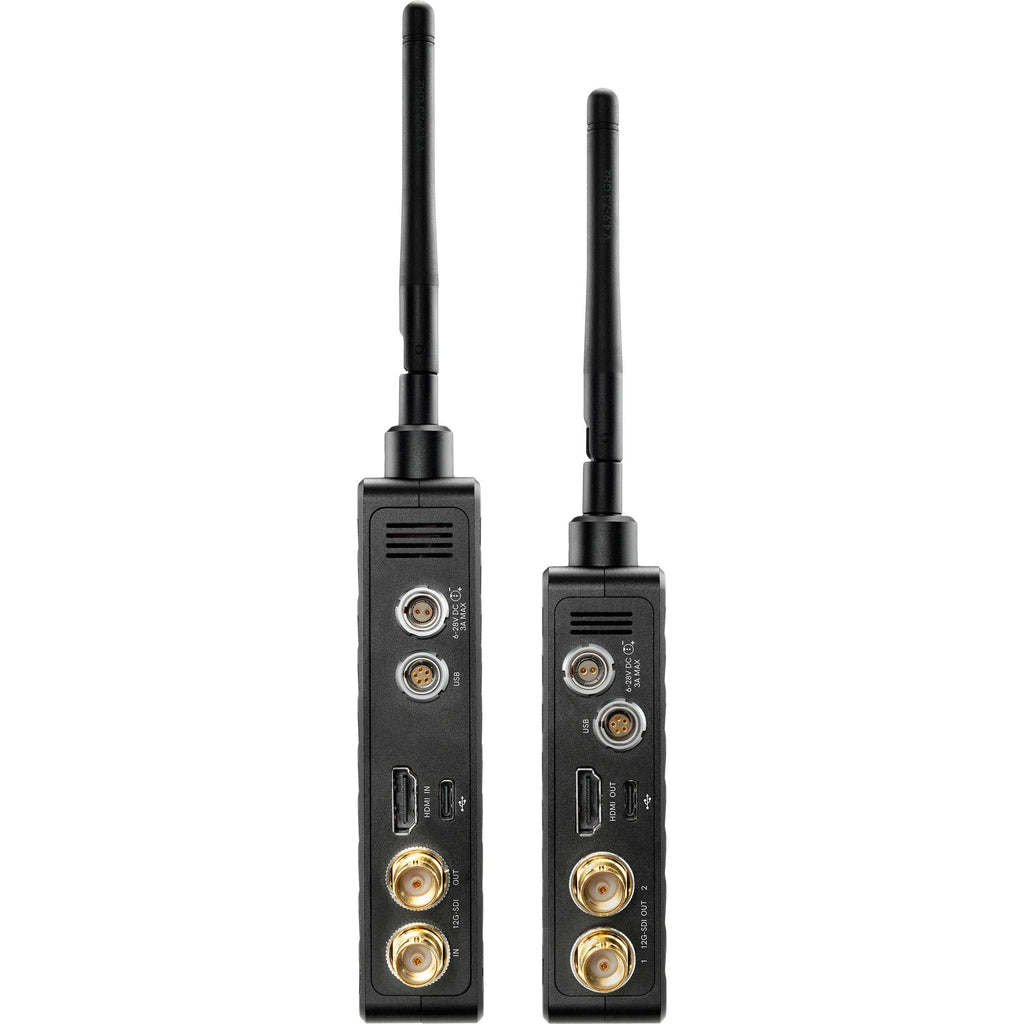

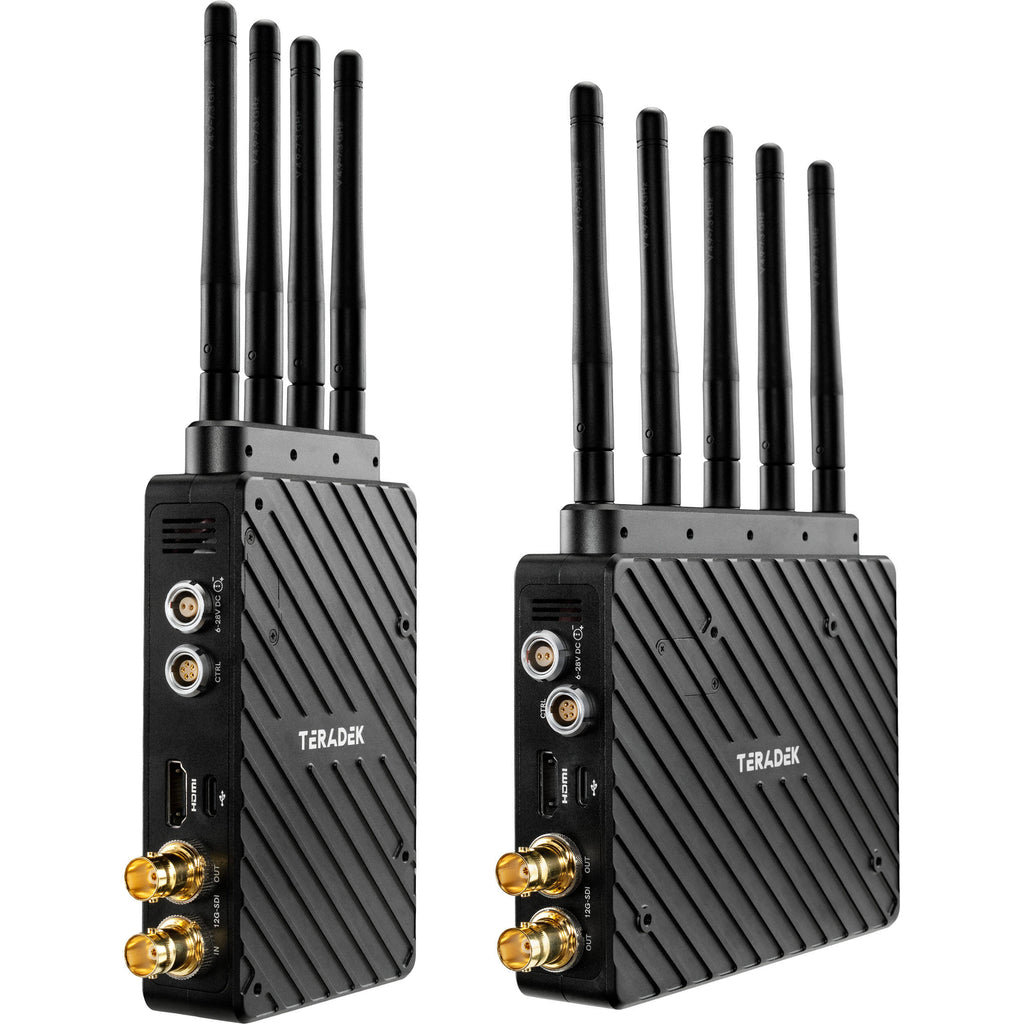

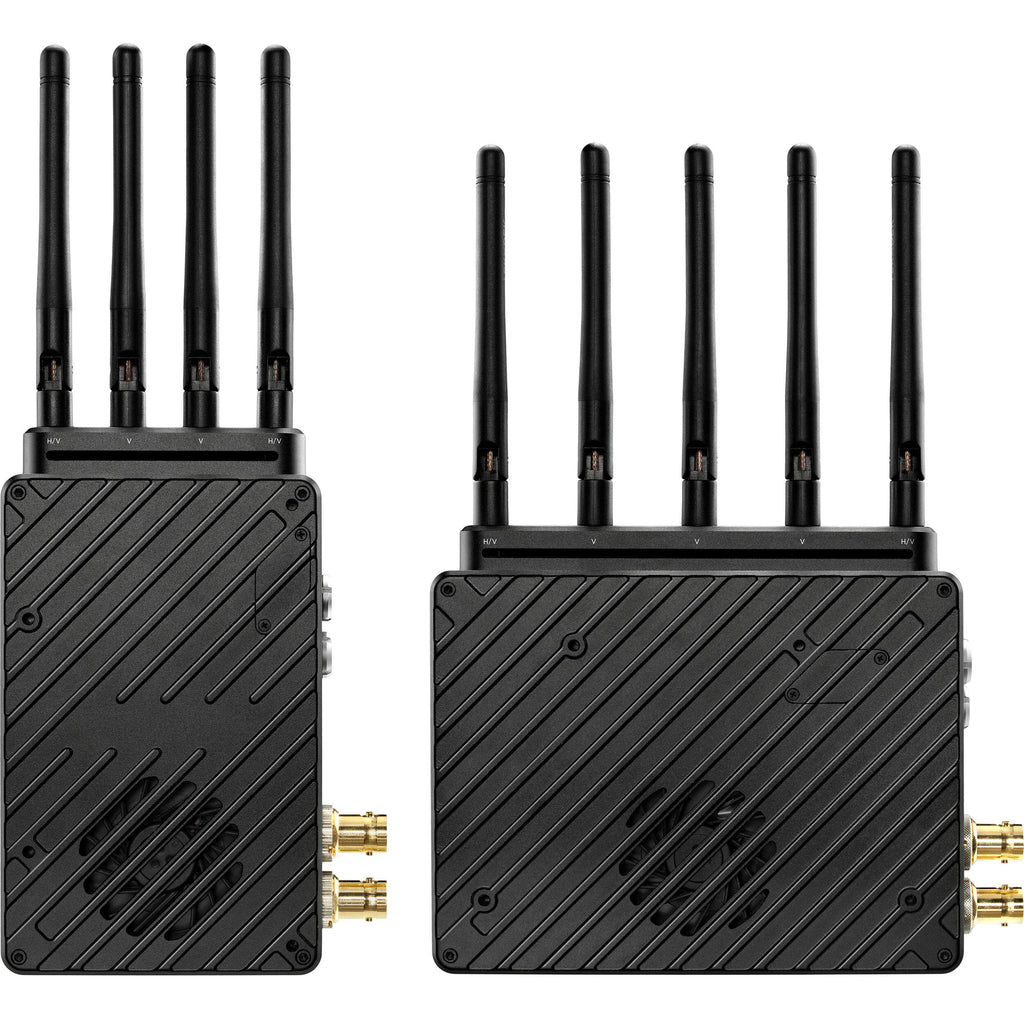

Transmit and receive lossless HD video from up to 1500' line of sight with the Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter/Receiver Kit from Teradek. The kit includes a wireless Bolt 6 XT 12G-SDI/HDMI transmitter and a wireless Bolt 6 XT 12G-SDI/HDMI receiver that support the new 6 GHz wireless frequency, feature bright OLED displays, and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support.
Other new features include a smaller, lighter design, improved long-range mode, an SDI eye pattern tool, and 50% quieter performance than previous models. The transmitter inputs video over 12G-SDI or HDMI and features 12G-SDI and HDMI loop outputs, and the receiver outputs video via 12G-SDI and HDMI. Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band. A case is included to store and transport the kit.
In the Box
- Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
- Bolt 6 XT 1500 12G-SDI/HDMI Transmitter
- Bolt 6 XT 1500 12G-SDI/HDMI Receiver
- 2 x 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to Type-C Male Cable (39")
- 2 x HDMI Type A Male Cable (18")
- 2 x BNC 12G-SDI Cable (18")
- AC Adapter with Cable (6')
- 9 x Antenna
- Light Stand Adapter
- Shoe Adapter
- Carry Case
- Limited 1-Year Manufacturer Warranty
Teradek XT 1500 Specs
| Antenna I/O | Transmitter: 4 x RP-SMA Female Receiver: 5 x RP-SMA Female |
| Video I/O | Transmitter: 1 x HDMI 2.0 Input Transmitter: 1 x BNC (12G-SDI) Input Transmitter: 1 x BNC (12G-SDI) Loop Output Receiver: 1 x HDMI 2.0 Output Receiver: 1 x BNC (12G-SDI) Output |
| Embedded Audio | HDMI: 2-Channel SDI |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | Transmitter/Receiver: 1 x USB-C 2.0 Input Transmitter/Receiver: 1 x LEMO 5-Pin 2.0 Output |
| Encryption | 256-Bit AES |
| Wireless Range | 1500' / 457.2 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| DC Input Power | 6 to 28 VDC |
| Power Consumption | Transmitter: 20 W Receiver: 18 W |
| Environmental Protection | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm Receiver: 5.5 x 4.4 x 1.1" / 139 x 112 x 27 mm |
| Weight | Transmitter: 12.1 oz / 344 g Receiver: 15.2 oz / 430 g |
| Package Weight | 8.79 lb |
| Box Dimensions (LxWxH) | 14.2 x 11 x 7.2" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
