Description
Teledyne Flir Blackfly GigE Overview

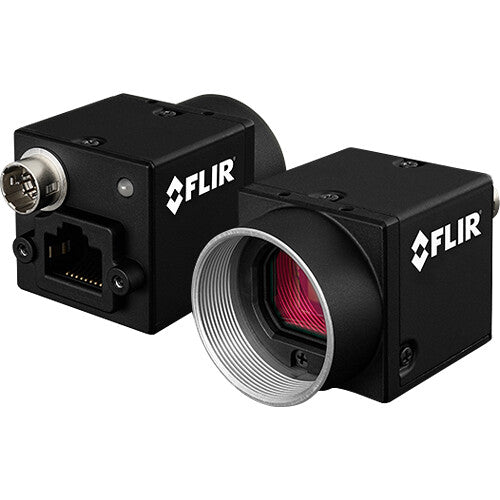

The Blackfly GigE 2.3MP Color Camera from Teledyne Flir captures up to 1920 x 1200 resolution video at 41 fps and offers Gigabit Ethernet output. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the GigE Vision v1.2 standard. A C lens mount provides support for a wide variety of varifocal and fixed focal length lenses.
Features include a Sony IMX249 1/1.2" CMOS color sensor, 10/12-bit image bit depth, two custom user settings, manual/auto gain and white balance, and a global shutter. You can power the camera using a 6-pin Hirose power source or via PoE using an optional interface card.
- Exposure range: 0.019ms to 32 seconds
- Flash memory: 512kB non-volatile memory
- Gain control: manual, automatic (AGC)
- Image buffer: 16MB
- Image processing: gamma, lookup table, hue, saturation, and sharpness
- Partial image modes: pixel binning, decimation, ROI
- Triggering modes: standard, bulb, overlapped, multi-shot
- User sets: two user configuration sets for custom camera settings
- White balance: manual, automatic (AWB)
- Optical filter: IR cut (670nm)
- Absolute sensitivity threshold (y): 23.15
- Dynamic range: 67.37 dB
- Gain range: 0 to 29.9 dB
- Quantum efficiency blue: 60.25 (460nm)
- Quantum efficiency green: 59.7 (530nm)
- Quantum efficiency red: 37.91 (625nm)
- Saturation capacity (e-): 32291
- Temporal dark noise (read noise): 6.90
Items Included
- Teledyne Flir Blackfly GigE 2.3MP Color Camera (C-Mount)
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Teledyne Flir Blackfly GigE Specs
| Compatibility |
Not Specified by Manufacturer
|
| Sensor |
Sony IMX249 1/1.2" CMOS, 2.3 MP
|
| Shutter |
Global
|
| Resolution |
1920 x 1200
|
| Frame Rate |
Up to 41 fps
|
| Bit Depth |
Color, 10-bit, 12-bit
|
| Other I/O |
1 x RJ45, Gigabit Ethernet (PoE, Video)
1 x 6-Pin Hirose (Power) |
| Power Source |
PoE (Not Included), Plug-In Power (Not Included)
|
| DC Input Power |
5 to 16 VDC at 120 mA
|
| Power Consumption |
2.5 W
|
| Color |
Black
|
| Certifications |
CE, FCC, Kcc, RoHS
|
| Operating Conditions |
32 to 113°F / 0 to 45°C at 20 to 80% Humidity
|
| Storage Conditions |
-22 to 140°F / -30 to 60°C at 20 to 95% Humidity
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
1.2 x 1.1 x 1.1" / 30 x 29 x 29 mm
|
| Weight |
1.3 oz / 36 g
|
