Description
TeachLogic IMA-240 Overview
- 1Description
- 2Amplifier | Infrared Microphone Receiver | Audio Mixer
- 33 Line Inputs, 2 Line Outputs
- 4Why Infrared (IR)?
Ensure that your teacher's voice is heard clearly by all students in classrooms of almost any size, whether in-person or hybrid with the TeachLogic IMA-240 Forum, a 50W amplifier with two infrared mic receivers, 3-input audio mixer, and 3-band EQ.
The IMA-240 Forum allows the simultaneous use of two wireless infrared microphones: the RT-60N Sapphire is ideal for hands-free presentation, while the IRH-35 handheld can be passed around the room for individual participation (mics available separately). Easily connect to a computer hosting a video-conferencing application in order to synchronize classroom audio for online listeners.
The IR technology used in this system is ideal for any line-of-sight transmission up to 50' and because it keeps the mic signal in the room, it simplifies the deployment of IR microphones for an entire school. When connected to overhead speakers, the Forum delivers sound accurately and effortlessly at a normal speaking level, with no interference.
- Amplifier: 2 x 25W digital-hybrid Class-D amplifiers (50W RMS total)
- Powers four 8-ohm classroom speakers
- Two-channel IR receiver for simultaneous use of two wireless IR microphones
- Compatible with IRT-60N Sapphire hands-free and IRH-35 handheld IR mics
- Connectivity coverage: 50' (line-of-sight)
- 3-band EQ to shape the sound in your classroom
- Assistive Listening System (ALS) output with level control
- Lesson-capture output
- Digital Feedback Guard (DFG): reduces chances for audio feedback
- Low-power standby mode (both automatic and manual activation)
- USB-power port for drop-in microphone charger connection (available separately)
- 3.5mm computer input with anti-hum (on/off switch)
- Stereo RCA input for DVD
- 3.5mm output for assistive listening and/or lesson capture

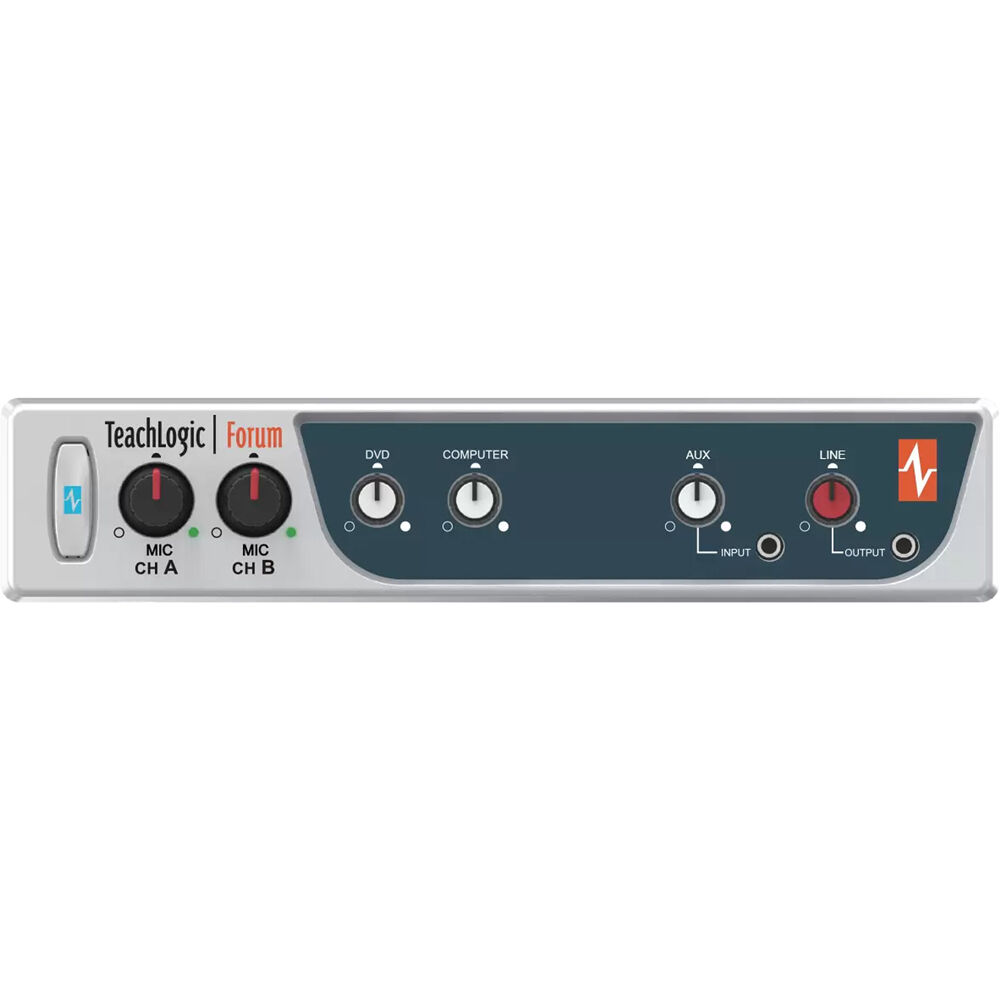

Front panel:
- Two 3.5mm auxiliary (conference) input and output connect to host computer to synchronize classroom audio with video-conference applications
- Infrared technology is ideal for learning environments and line-of-sight applications for a number of reasons. The speed and audio bandwidth of IR is unmatched, and since it doesn't pass through walls, no pairing is required, allowing a teacher to use the same microphone in every classroom. The ability to contain the transmission within a single room also aids in security and privacy.
- With virtually nonexistent latency, you never have to worry about your lessons suffering from poor comprehension due to lagging audio. And thanks to the otherwise unused bandwidths occupied by infrared, external RF interference, which can plague RF-based systems, is nonexistent. The result is clean painless high-fidelity audio that is completely secure.
In the Box

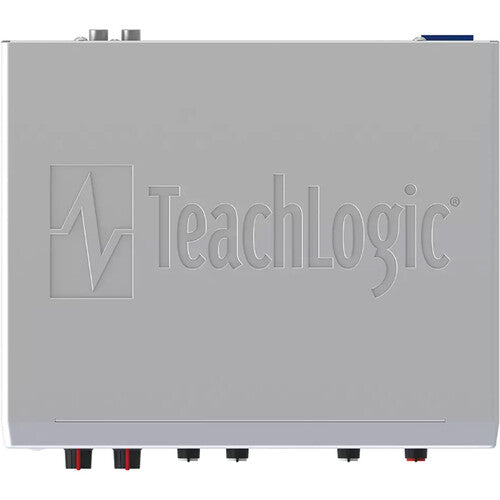

- TeachLogic IMA-240 Forum 50W Amplifier with Two Infrared Mic Receivers
- AC-36 Power Supply
- Limited 5-Year Manufacturer Warranty
- Description
- Amplifier | Infrared Microphone Receiver | Audio Mixer
- 3 Line Inputs, 2 Line Outputs
- Why Infrared (IR)?
TeachLogic IMA-240 Specs
| Compatibility | TeachLogic IRT-60N Sapphire Hands-Free IR Wireless Microphone / IRH-35 Handheld IR Wireless Microphone |
| USB I/O | 1 x USB-A Female Output |

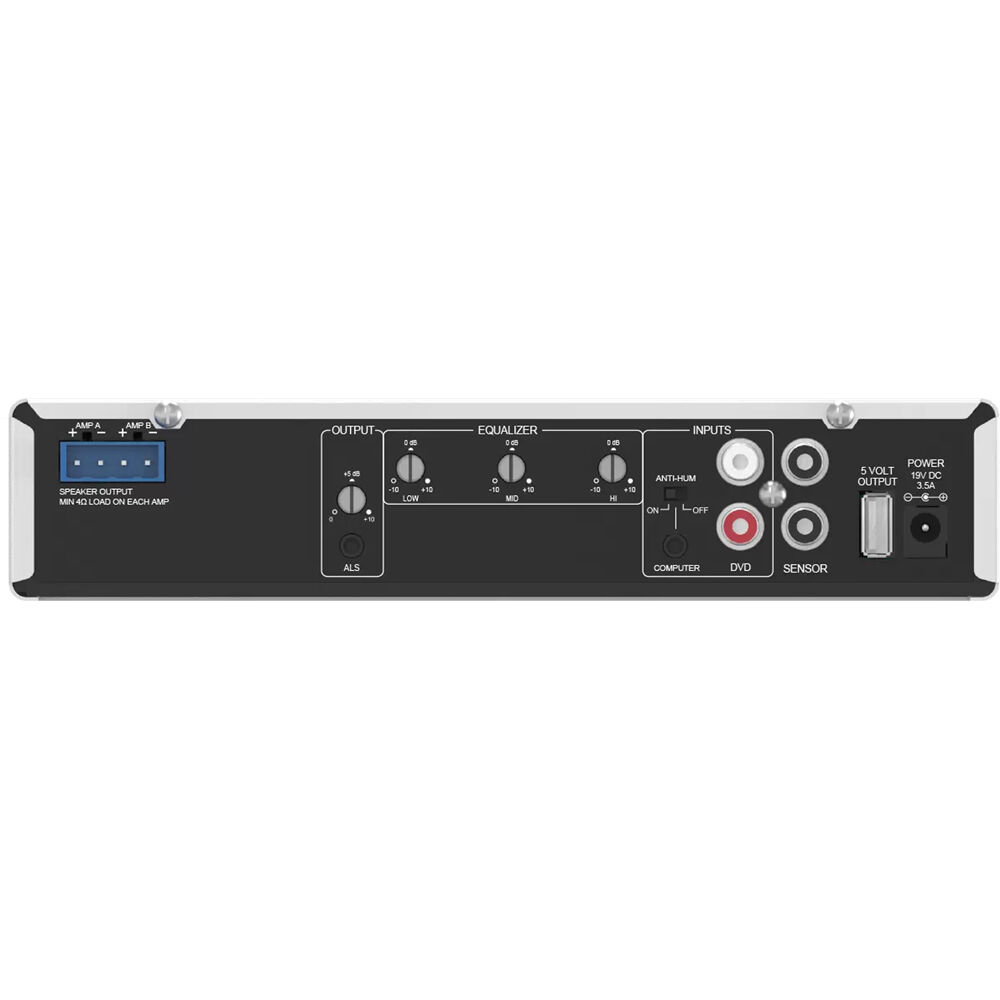

| Audio I/O | 1 x 2RCA Line Input 1 x 1/8" / 3.5 mm Line Input 1 x 1/8" / 3.5 mm Line Output (Video Conferencing) 1 x 1/8" / 3.5 mm Line Output (Assistive Listening) 1 x Binding Post 4-Pin Speaker Output |
| Mobile App Compatible | No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Power Source | AC Adapter with Power Brick (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 19 VDC at 3.5 A |
| Power Consumption | 65 W (Maximum) |
| Dimensions | 8.5 x 7.5 x 1.75" / 21.6 x 19.1 x 4.45 cm |
| Weight | 1.7 lb / 0.8 kg |
