Solid State Logic 729736X1 Overview
- 1Description
- 2Simple and Effective
- 3SuperAnalogue
- 4SSL HF and LF EQ
- 5Channel Compressor
- 6TRS Line Input
- 7Features at a Glance

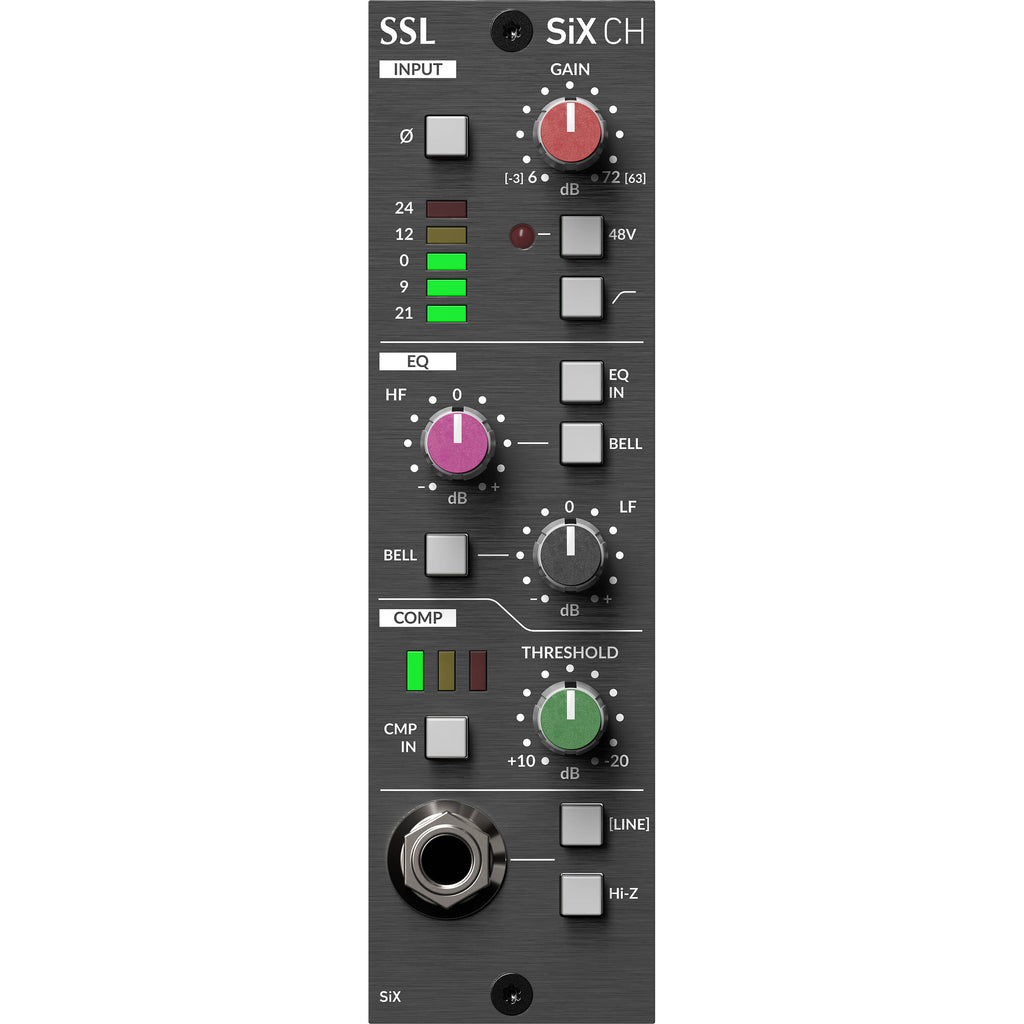

Infused with technology from SSL's SiX console, the Solid State Logic SiX CH is a single-channel 500 Series channel strip that offers a premium gain stage, 2-band EQ, and a single-knob compressor for musicians and engineers at any level. Given its sonic versatility and modular form factor, the SiX CH is a stellar addition to home studio setups, mobile recording rigs, and racks in commercial facilities.
With up to +72 dB of gain available on the mic preamp, the SiX CH delivers bountiful boost for low-output ribbon and dynamic mics or even the quietest of sources. Of course, switchable 48V phantom power is provided for condenser mics. You can also keep the low-end power under control by activating the 75 Hz high-pass filter, which features a 12 dB/octave slope. Each band of the equalizer can be set to shelf or bell mode; different center frequencies are used for each mode to increase flexibility. The compressor utilizes variable threshold and automatic makeup gain to enable fast operation and consistent output level.
- SSL SuperAnalogue mic pre with 48V phantom power
- Polarity invert switch
- 5-segment LED meter in dBu
- Switchable 12 dB/octave high-pass filter at 75 Hz
- Classic SSL high- and low-frequency EQ
- Shelf/bell curve switch per band
- Single-knob channel compressor with variable threshold and 3-segment LED gain reduction meter
- Front-panel TRS line input with 1-megohm Hi-Z switch
In the Box
- Solid State Logic SiX CH 500 Series Channel Strip
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential System Extensions (Not Included)
- Description
- Simple and Effective
- SuperAnalogue
- SSL HF and LF EQ
- Channel Compressor
- TRS Line Input
- Features at a Glance
Solid State Logic 729736X1 Specs
| Number of Channels |
1
|
| Inputs |
1 x Balanced Mic Input via 500 Series Multipin Connector
1 x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel) 1 x XLR Female (Rear Panel) |
| Output |
1 x Balanced Line Output via 500 Series Multipin Connector
1 x XLR Male (Rear Panel) |
| Phantom Power |
48 VDC
|
| Gain Range |
Mic Gain: +6 to +72 dB
Line Gain: -3 to +63 dB |
| Polarity Reverse |
Switchable
|
| High-Pass Filter |
12 dB/Octave at 75 Hz
|
| Input Impedance |
Mic: 1.2 Kilohms
Line/Hi-Z: 10 Kilohms or 1 Megohm (Switchable) |
| EIN |
Mic Pre: Typically -129 dB
|
| THD + N |
<0.0015%
|
| CMRR |
Mic: >80 dB
Line: >70 dB |
| EQ High |
Shelf Mode: ±15 dB at 3.5 kHz
Bell Mode: ±15 dB at 5 kHz |
| EQ Low |
Shelf Mode: ±15 dB at 60 Hz
Bell Mode: ±15 dB at 200 Hz |
| Compressor |
Ratio: 2:1
Threshold: -20 to +10 dBu Attack Time: 5 ms Release Time: 300 ms Knee: Over-Easy / Soft Knee Makeup Gain: Automatic |
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
0.695 lb
|
| Box Dimensions (LxWxH) |
8 x 6.2 x 2.2"
|
