Description
Shimbol MEMORY I Overview
- 1Description
- 2Recording Monitor
- 3HDMI Input
- 4Built-In HDR
- 53D LUT Support
- 6Mounting
- 7Imaging Features
- 8Power Options

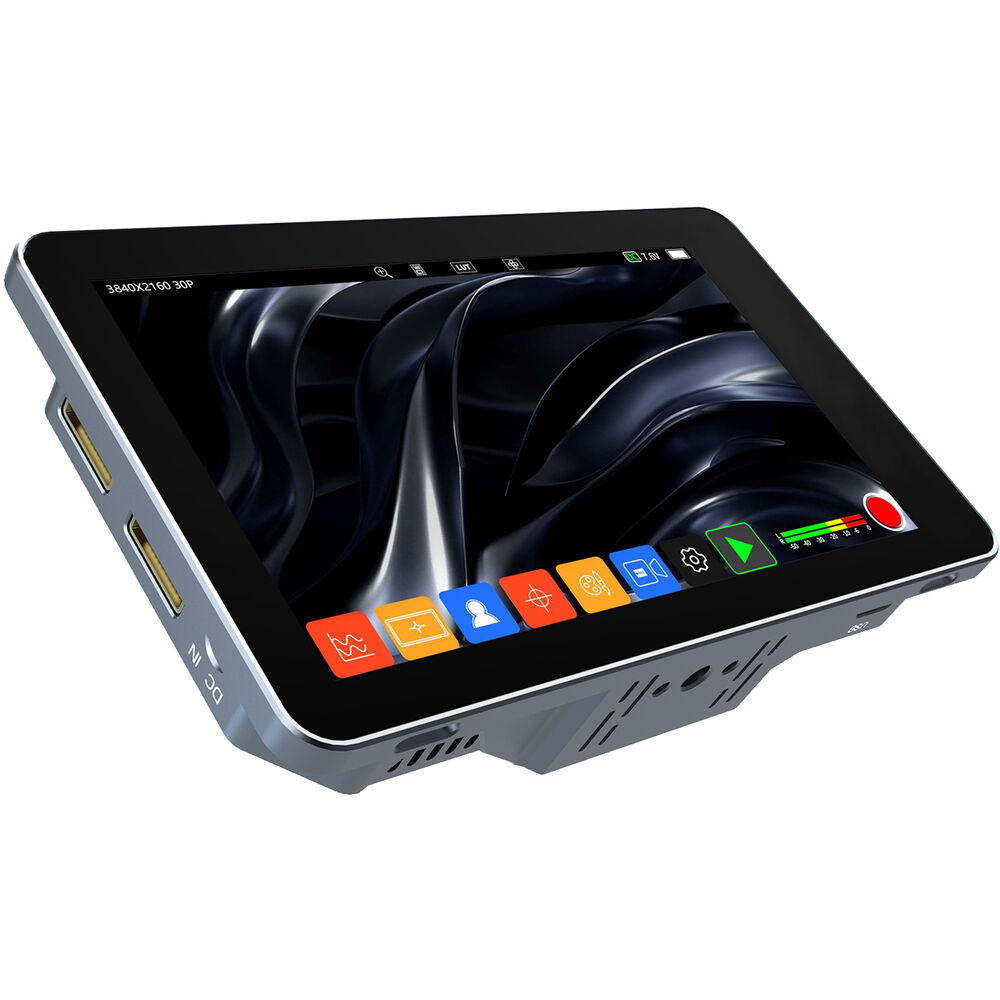

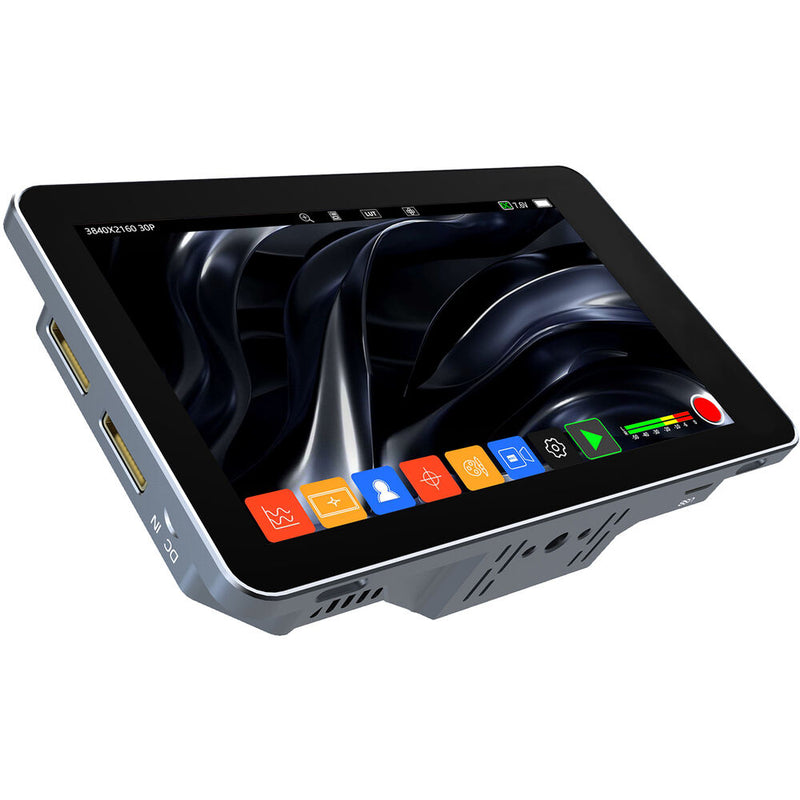

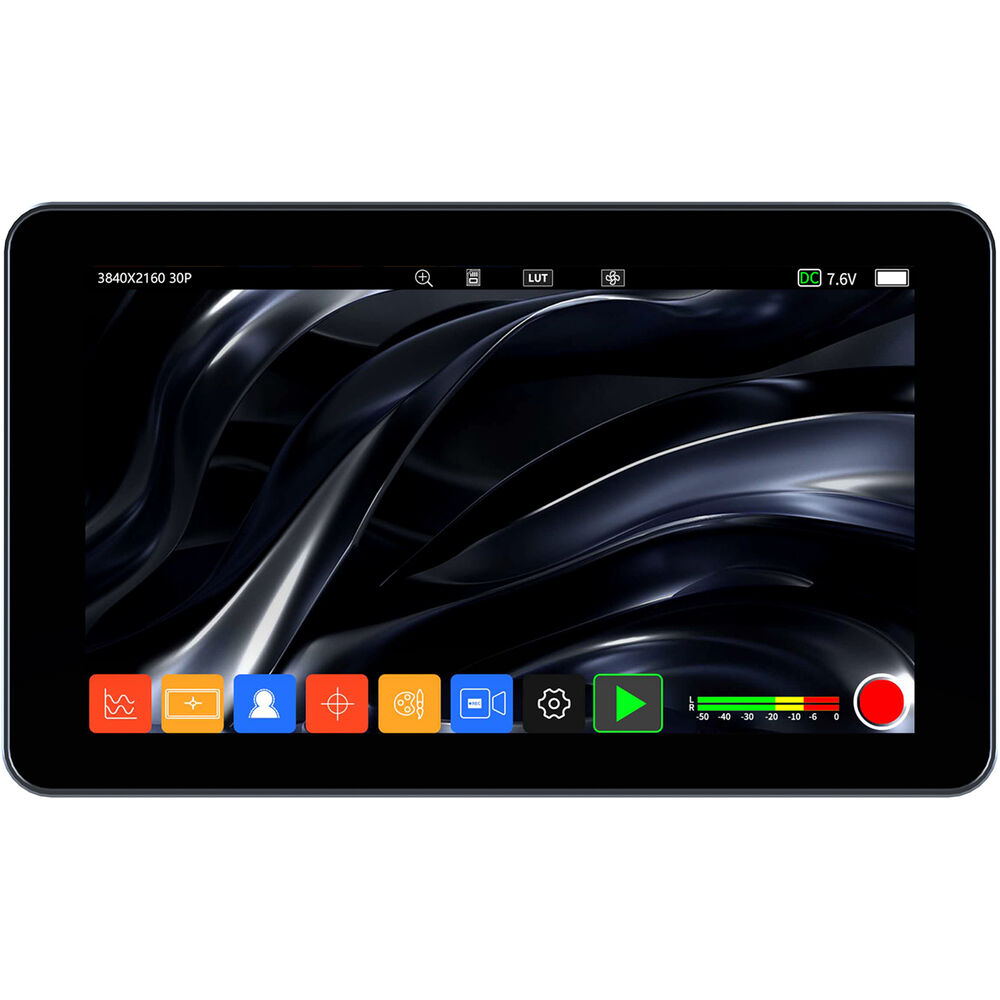

The Memory I 5.5" 4K HDMI Touchscreen Recorder/Monitor from Shimbol enables you to view up to DCI 4K25 input and capture 1080p60 video with an applied 3D LUT. This monitor features a 5.5" 1920 x 1080 touchscreen display, one HDMI 2.0 input, and a 3.5mm headphone jack for outputting embedded audio. Monitor features include 2000 cd/m² brightness, HDR and 3D LUTs, a luma waveform, vectorscope, zoom, focus peaking, and additional display functions.
Recording Monitor
The Memory I monitor enables you to view up to DCI 4K25 video and record 1080p60 video. This monitor supports live LUT applications with the ability to upload and adjust 3D LUTs.

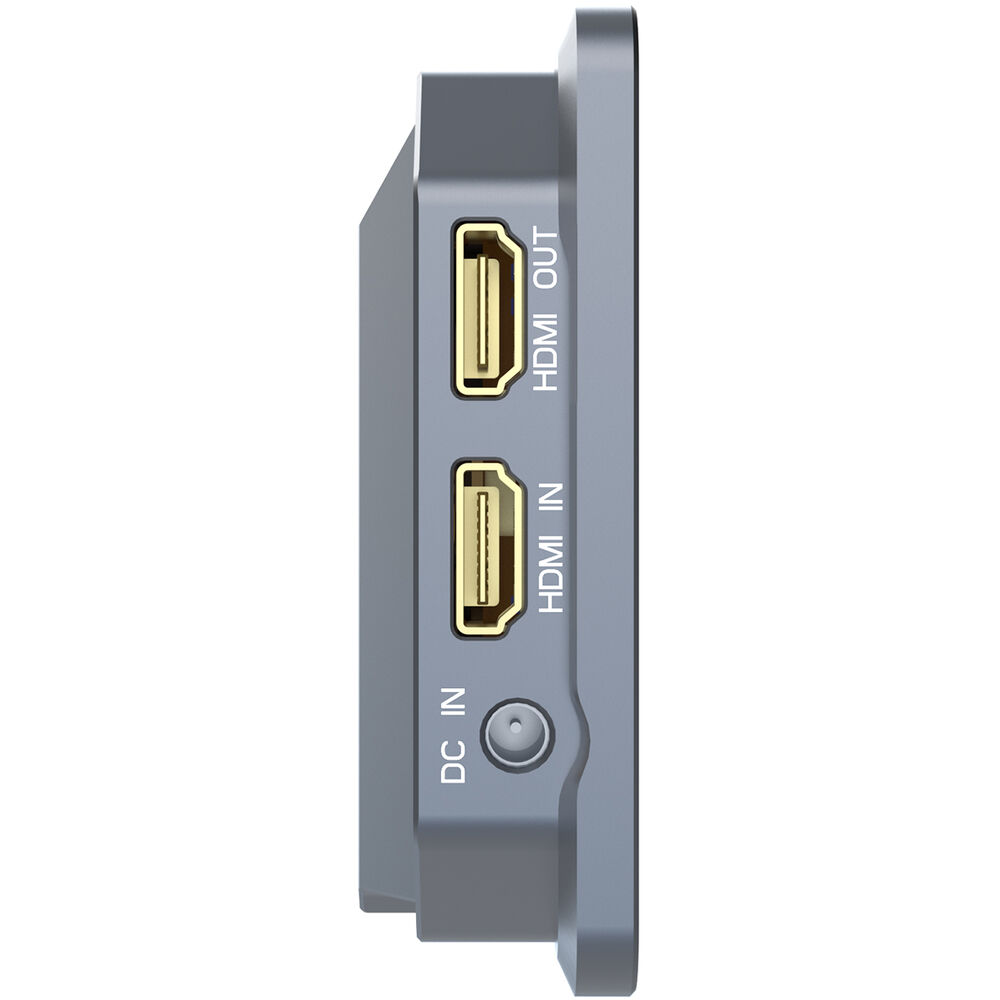

HDMI Input
- Connect to virtually any camcorder or cine-style camera via the HDMI input.
- Monitor embedded audio via the 3.5mm stereo headphone jack.
Built-In HDR
The Memory I features built-in HDR compatibility, enabling you to view and capture nuanced footage with a wide dynamic range.
3D LUT Support

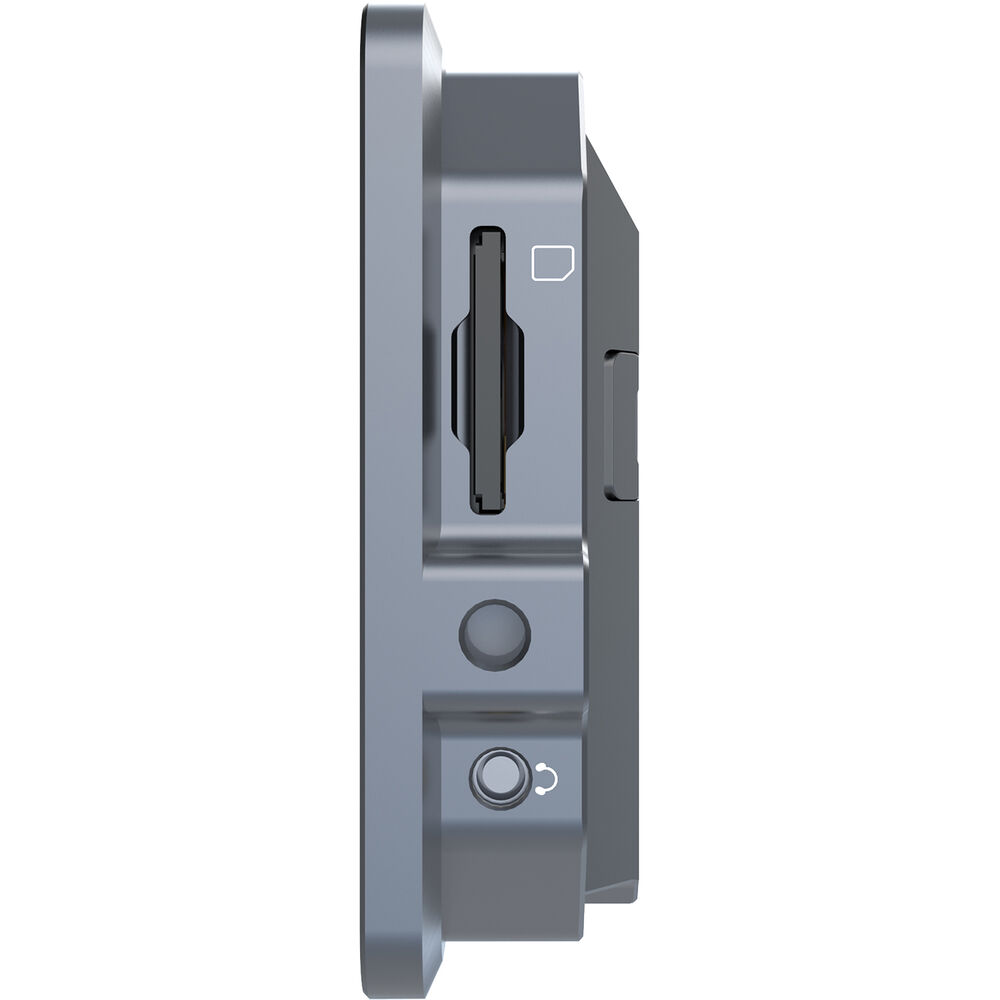

Load custom 3D LUTs via the microSD card slot.
Mounting

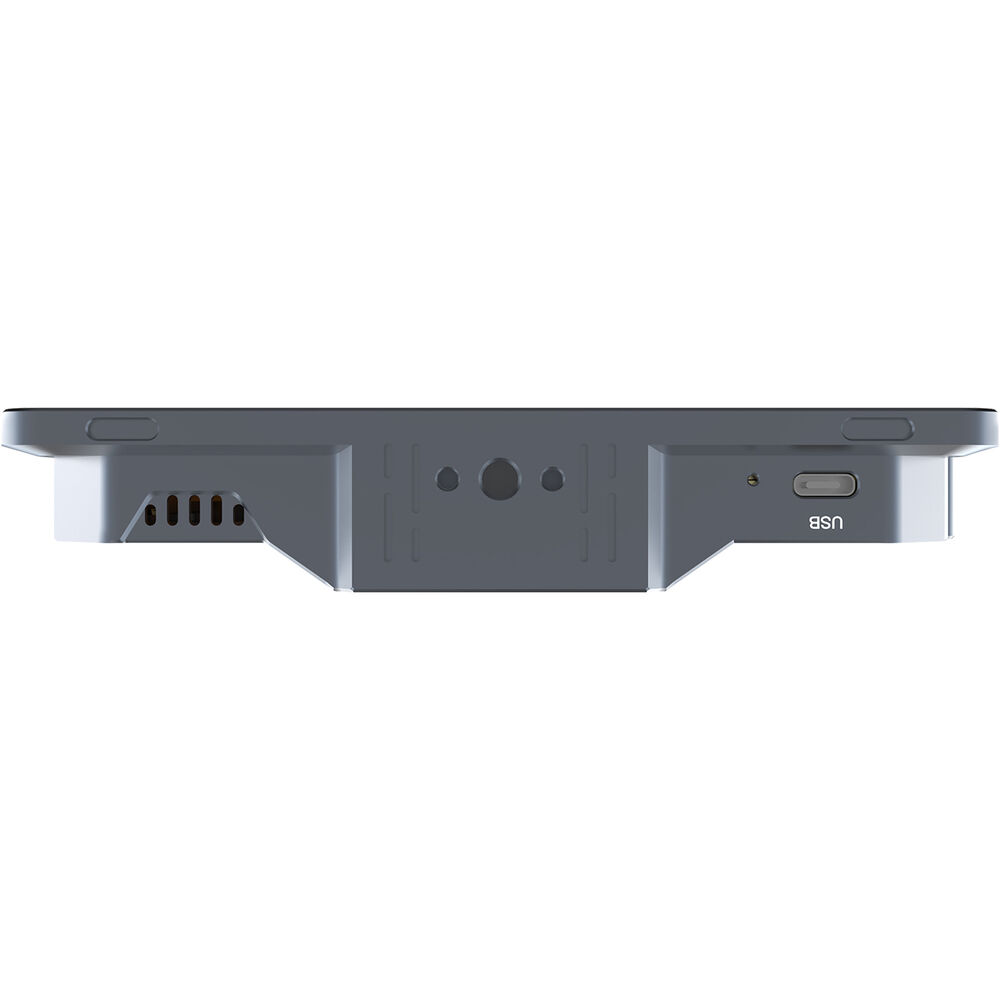

Mount the Memory I using the bottom 1/4"-20 thread bottom or use the included shoe adapter.
Imaging Features
Imaging functions include:
- Focus peaking, false color, exposure.
- Check fields, selectable markers, and RGB adjustments.
- Zoom, gamma curve selection, and more.
Power Options

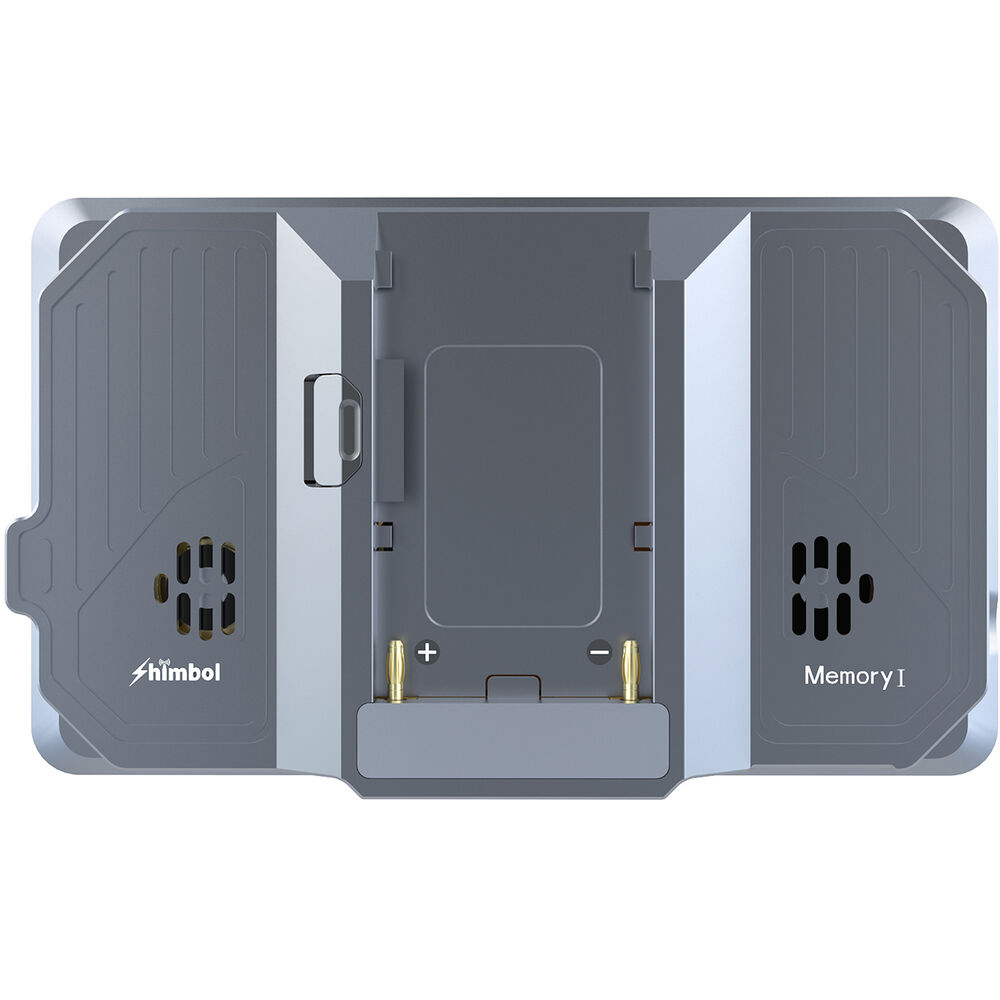

Power the Memory I using a Sony L-series type NPF970 battery or input DC power via the barrel port.
In the Box
- Shimbol Memory I 5.5" 3D LUT 4K HDMI Touchscreen Recorder/Monitor
- SD Card
- SD Card Holder
- Tempered Screen Protector
- HDMI Cable
- Shoe Mount Adapter
- Limited 14-Month Manufacturer Warranty
Not in the Box
- Essential Recording Media (Not Included)
Table of Contents
- Description
- Recording Monitor
- HDMI Input
- Built-In HDR
- 3D LUT Support
- Mounting
- Imaging Features
- Power Options
Shimbol MEMORY I Specs
Key Specs
| Display Size |
5.5" / 14.0 cm
|
| Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Compatibility |
Hybrid Log Gamma
|
| Video I/O |
1x HDMI (Unspecified Signal) Input
1x HDMI (Unspecified Signal) Output |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC
|
| Video Format |
HDMI
DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Built-In Battery |
No
|
| Battery Type |
1x L-Series
|
| Power Consumption |
9 W (Maximum)
|
| Mounting |
1x 1/4"-20 Female
|
Display
| Panel Type |
LCD
|
| Display Size |
5.5" / 14.0 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
2000 nits / cd/m2
|
| Contrast Ratio |
1200:1
|
| HDR Compatibility |
Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
400 ppi
|
| Real-Time LUT Monitoring |
HDR
|
| Image Controls |
False Color, Focus Peaking, Histogram, RGB Parade, Vectorscope, Waveform, Zebra
|
Inputs / Outputs
| Video I/O |
1x HDMI (Unspecified Signal) Input
1x HDMI (Unspecified Signal) Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel Input
|
| Other I/O |
No
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Gamma Curve |
Rec709
|
| Timecode Support |
Yes
|
Recording
| Pulldown Conversion |
No
|
| Camera Trigger |
No
|
| Pre-Roll Record |
No
|
| Encoding Formats |
Up to 1920 x 1080
H.264 8-Bit 4:2:2 at up to 60 fps |
Power
| DC Input Power |
6.5 to 16.8 VDC
|
| Built-In Battery |
No
|
| Battery Type |
1x L-Series
|
| Power Consumption |
9 W (Maximum)
|
| Mounting |
1x 1/4"-20 Female
|
Environmental
| Environmental Protection |
No
|
| Certifications |
No
|
| Operating Temperature |
22 to 82°F / -10 to 50°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
General
| Material of Construction |
Metal
|
| Dimensions |
5.8 x 3.4 x 1" / 146.6 x 87.6 x 26.5 mm
|
| Weight |
10.0 oz / 283 g
|
Packaging Info
| Package Weight |
1.235 lb
|
| Box Dimensions (LxWxH) |
10.2 x 5.6 x 1.8"
|
