| ₹ 23285.0 includes GST and import duties. | |
| B2B customers can avail ₹ 3550.96 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Samson CR-77 Overview
- 1Description
- 2Antennas (A and B)
- 3Volume Control
- 4Audio Meter
- 5Squelch Control
- 6A/B Antenna Indicators
- 7RF Meter (Radio Frequency)
- 8Power Switch
- 9DC Input
- 10Unbalanced Output
- 11Balanced Output
- 12Mic/Line Switch

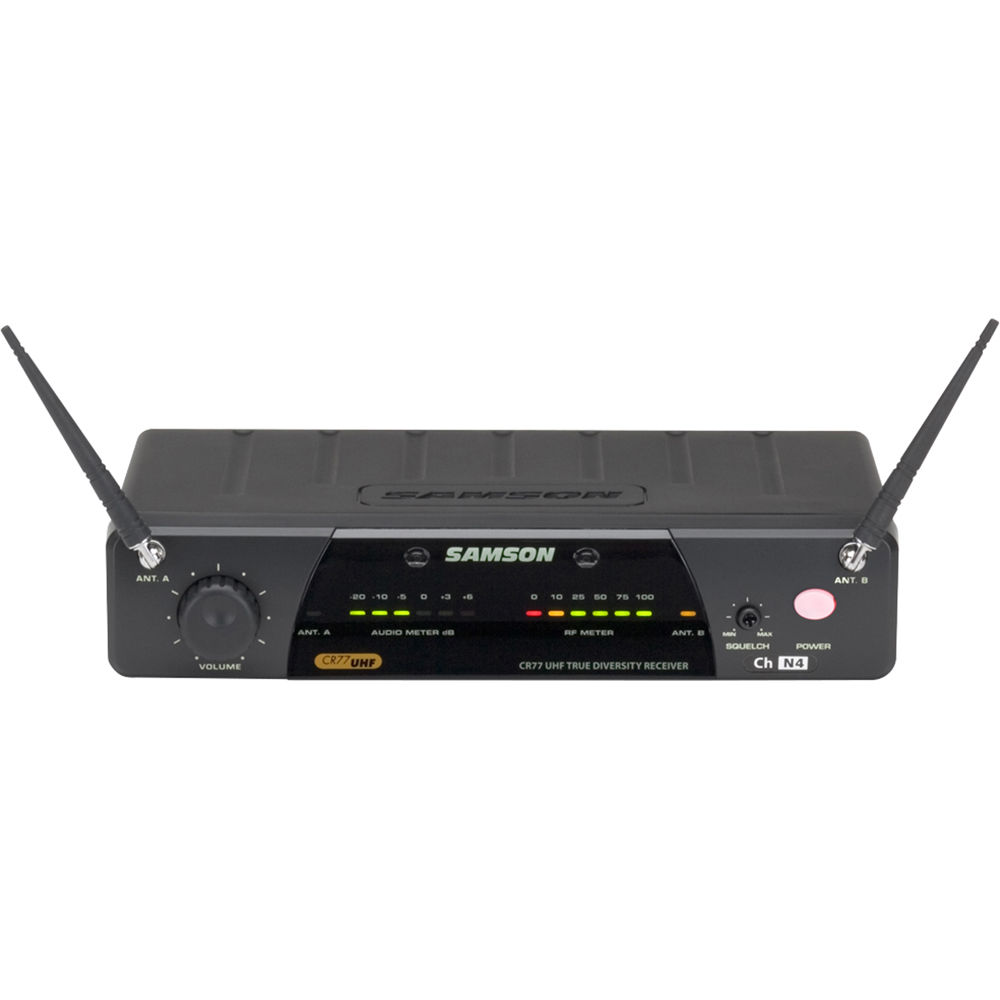

The CR77 Diversity Receiver with AC500 Power Supply from Samson is a wireless, true diversity half-rack mountable and tabletop receiver with 1/4-wave antennas. It can be used when paired with an AH7 headset transmitter and microphone (sold separately) to capture audio for instructors and active performers in fitness applications.
The CR77 wireless receiver features multi-segment audio and RF level LED meters, a volume and squelch control, and is built with balanced XLR and unbalanced 1/4" output connectors. It has a 300' range of operation and is light enough to throw in your bag, or permanently install with the optional rackmount kit (sold separately). In addition, a mic/line level output switch sets the output level attenuation of the balanced output to line or mic level.
In the Box
- Samson CR77 Diversity Receiver with AC500 Power Supply (K1: 489.050 MHz)

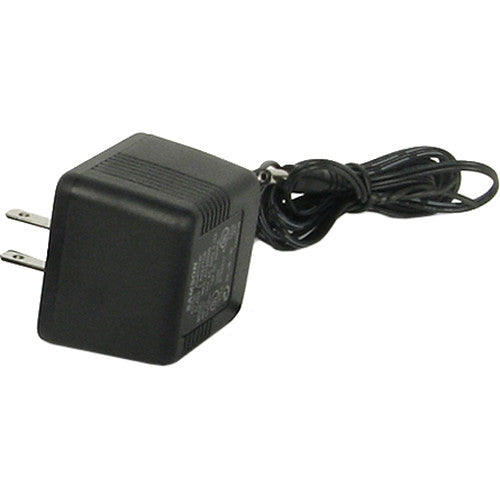

- 12 VDC Power Supply
- Limited 2-Year Manufacturer Warranty
- Description
- Antennas (A and B)
- Volume Control
- Audio Meter
- Squelch Control
- A/B Antenna Indicators
- RF Meter (Radio Frequency)
- Power Switch
- DC Input
- Unbalanced Output
- Balanced Output
- Mic/Line Switch
Samson CR-77 Specs
| Wireless Technology |
Digital UHF
|
| Diversity |
True Diversity
|
| Max Operating Range |
300' / 91.4 m (Line of Sight)
|
| Receiver Type |
Tabletop
|
| Number of Audio Channels |
1
|
| Audio I/O |
1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4" TS Male Unbalanced Line Output |
| Power Requirements |
AC/DC Power Adapter
|
| Number of RF Channel Frequencies |
1
|
| Diversity |
True Diversity
|
| RF Frequency Band |
MHz
|
| Max Operating Range |
300' / 91.4 m (Line of Sight)
|
| Max Transmitters per Band |
6
|
| Receiver Type |
Tabletop
|
| Mounting Options |
Rackmount (with Optional Hardware)
|
| Rackmount Size |
1 RU (1/2 Rack)
|
| Antenna |
2 x 1/4 Wave Telescopic, Fixed
|
| Number of Audio Channels |
1
|
| Audio I/O |
1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4" TS Male Unbalanced Line Output |
| Audio Output Level |
1/4" Output:
0 dBV XLR Output: 20 dBV XLR Output: 40 dBV |
| Impedance |
1/4" Output:
5 Kilohms XLR Output: 600 Ohms |
| Power Requirements |
AC/DC Power Adapter
|
| AC/DC Power Adapter |
12 VDC (Included)
|
| Display & Indicators |
1 x Backlit LED (Data Transmission)
|
| Housing |
Metal
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 22819.3 |
| 3-5 | ₹ 22586.45 |
| 5-10 | ₹ 22120.75 |
| 10+ | ₹ 21655.05 |
Bulk discount will be automatically applied during checkout based on quantity.
