| ₹ 306305.0 includes GST and import duties. | |
| B2B customers can avail ₹ 46711.51 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- Highly Compact: 1.5" x 2.8"
- Runs on 9 - 12 VDC Power
- SMA Antenna Connector
- Hirose Audio/Video Connector
- 300 mA / 12 V Current Consumption
- WFM Demodulation
- NTSC/PAL Compatible
- No Video Pre-Emphasis Network

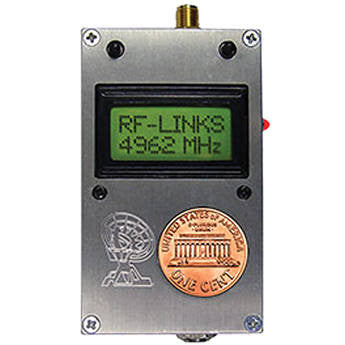

The RF-Video WRX-4962 is a fully-synthesized, highly-compact video receiver measuring only 1.5" x 2.8". It operates within the 4950 MHz - 6200 MHz frequencies, which are selectable via Up/Down push buttons and displayed on a front panel LCD.
Note: Because this receiver does not use a video pre-emphasis network, it is only compatible with select transmitters, such as the RF-Video SDX-58B and SDX-58H.
-
- Runs on 9 - 12 VDC power
- SMA antenna connector
- Hirose audio/video connector
- 300 mA / 12 V current consumption
- WFM demodulation
- NTSC/PAL compatible
In the Box
RF-Video WRX-4962 Audio/Video Receiver 4950 MHz - 6200 MHz
- Limited 1-Year Warranty
| Operating Frequency | 4950 - 6200 MHz |
| Frequency Step | 500 kHz / 1 MHz |
| DC Voltage | 9 - 12 V |
| Sensitivity | -88 dBm |
| Minimum Required Voltage | 7 V |
| Battery Power | 12 V |
| Video Distortion | 2% |
| Video Format | NTSC/PAL |
| Current Consumption | 300 mA / 12 V |
| Antenna Connector | SMA (50 ohms impedance) |
| Audio/Video Connector | Hirose (75 ohms impedance) |
| Video Level | 1 V |
| Audio Output | 300 mV |
| Demodulation | WFM |
| Video Pre-Emphasis Network | No |
| Temperature Range | 14 to 149°F (-10 to 65�C) |
| Dimensions | 1.5 x 2.8 x 0.75" (3.8 x 7.1 x 1.9 cm) |
| Weight | 1.8 oz (50 g) |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 300178.9 |
| 3-5 | ₹ 297115.85 |
| 5-10 | ₹ 290989.75 |
| 10+ | ₹ 284863.65 |
Bulk discount will be automatically applied during checkout based on quantity.
