Description
PTZCam Switch N8 Overview
- 1Description
- 2Combo Controller/Switcher Unit
- 3Dual-Stream Output
- 410.1" Touchscreen
- 5Control Options
- 6Playback and Recording
- 7Graphic Overlays
By Photo's
Mary Latvis

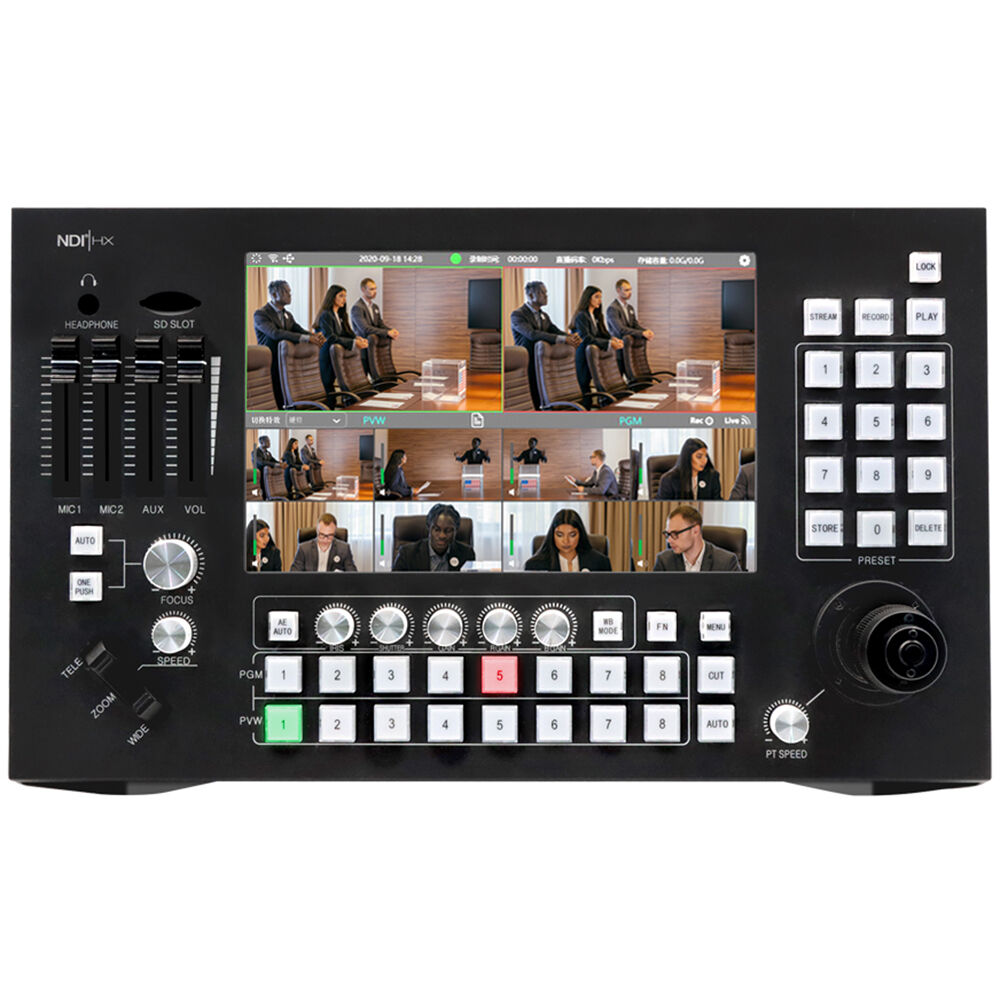

Designed for single-operator use, the Switch N8 8-Channel NDI Switcher and PTZ Controller from PTZCam provides full video production control, including PTZ moves, dual IP streaming, color correction, graphics overlays, audio input/output, and both recording and playback options. This switcher/controller incorporates a 10.1" touchscreen interface, a PTZ joystick, a zoom rocker, and push-button controls.
Combo Controller/Switcher Unit
- Control and switch between up to eight NDI PTZ cameras or other devices
- Supports PTZ moves, focus, exposure, white balance, and preset position control
Dual-Stream Output
Live H.264/H.265 streaming to two independent locations like YouTube and Facebook Live using separate encoding profiles

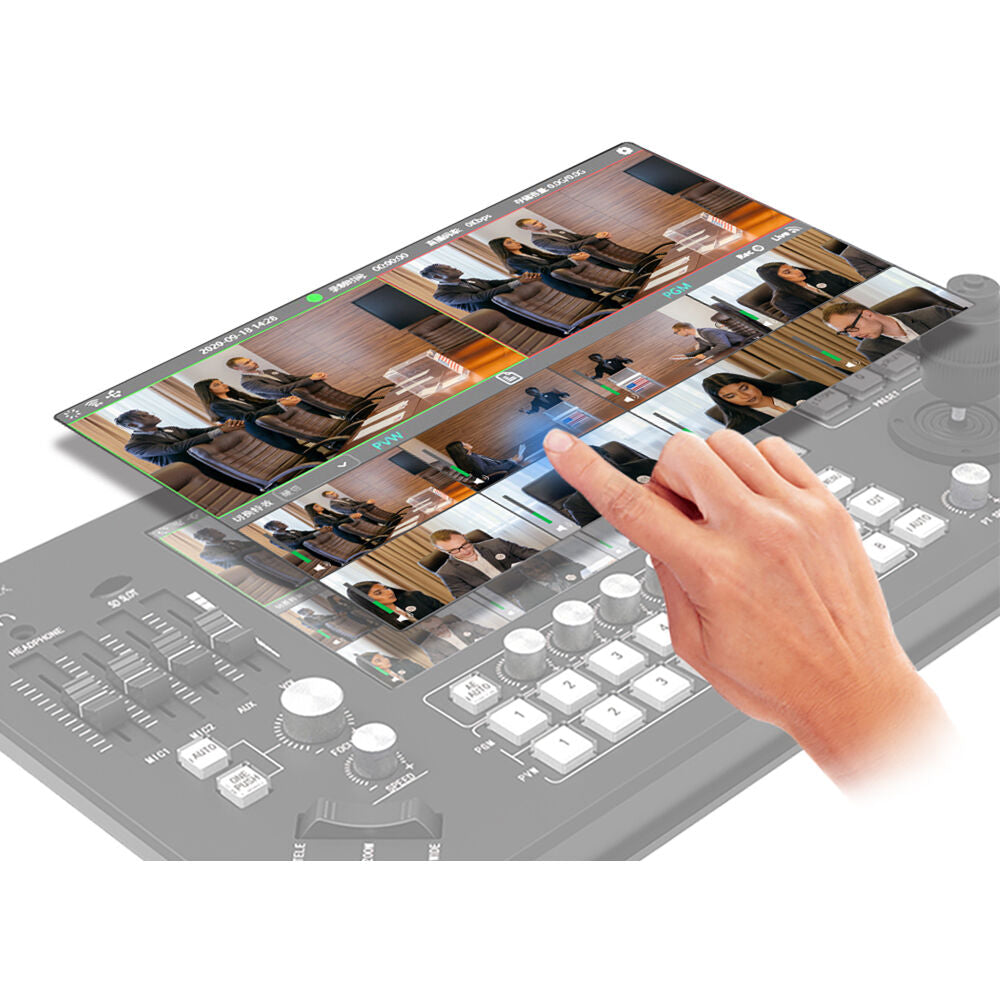

10.1" Touchscreen
Monitor and switch your sources easily using the integrated 10.1" touchscreen, no exterior display required
Control Options
Control options include the touchscreen interface, a PTZ joystick, a separate zoom rocker, and push buttons
Playback and Recording
Use the Switch 8's dual USB 3.0 ports for video recording and clip playback
Graphic Overlays
Use the switcher interface to add professional-looking text and custom logos
UPC: 616050682464
Table of Contents
- Description
- Combo Controller/Switcher Unit
- Dual-Stream Output
- 10.1" Touchscreen
- Control Options
- Playback and Recording
- Graphic Overlays
PTZCam Switch N8 Specs
Processing
| Processing Resolution | 1080p at 60 |
Input
| Video Inputs | 1 x RJ45 (HX / NDI / RTMP / RTSP) 1 x HDMI |
| Input Video Format | HDMI / RJ45 1080p up to 60 fps |
| Audio Inputs | 1 x 2RCA Stereo 2 x 1/4" TRS Stereo |
| Embedded Audio Input | RJ45 HDMI |
Output
| Video Outputs | 1 x RJ45 (RTMP / RTSP) 1 x HDMI |
| Output Video Format | HDMI 1080p at 60 fps RJ45 1080p at 60 fps 720p at 60 fps |
| Audio Outputs | 1 x 2RCA Stereo 2 x 1/4" TRS Stereo |
| Embedded Audio Output | HDMI RJ45 |
Connectivity
| Other I/O | 2 x USB-A 2.0 1 x DE-9/DB-9 Tally Output |
IP Encoding/Decoding
| IP Video | H.264/H.265: 1920 x 1080 at 60p (512.00 to 16,384 Kb/s) Encoding, Decoding |
| IP Audio | Encoding, Decoding |
| Transport Protocols | RTMP, RTSP |
| Simultaneous Streams | 2 Streams |
Internal Recording
| Recording Media | 2 x USB-A 3.0 / 3.1/3.2 Gen 1 |
Display
| Display Size | 10.1" |
Hardware
| Wi-Fi | None |
| Bluetooth | None |
Power
| Power I/O | 1 x Barrel (12 VDC) Input |
| Power Consumption | 3 A36 W |
Environmental
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | 14 to 122°F / -10 to 50°C |
General
| Dimensions | 16.5 x 10.14 x 4.8" / 420 x 257.52 x 121.2 mm |
| Weight | 4 lb / 1.8 kg |
Packaging Info
| Package Weight | 9.69 lb |
| Box Dimensions (LxWxH) | 18.7 x 13.2 x 6.1" |
