Description
Proton PCI-RAIN Overview

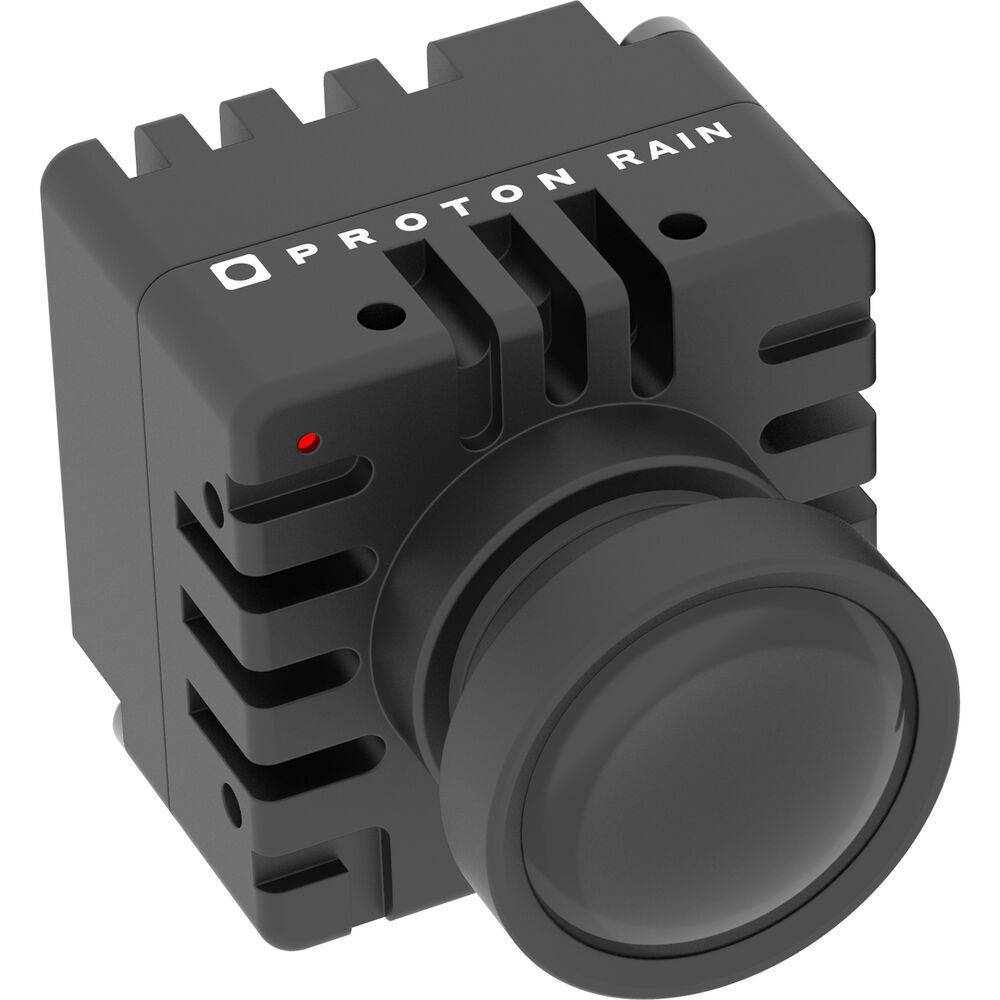

The RAIN Full HD Mini Broadcast Camera from Proton is a compact, cube-sized weatherproof camera with HDR support. It is equipped with 12-bit sensor technology and high sensitivity. The versatile device captures vibrant images even in low light, boasting an ultrawide angle of up to 124° when used with an optional 2.2mm lens. Its compact housing features eight 2.5mm holes for individual mounting options, as well as a bracket that can be attached to the top or bottom of the camera to provide an additional 1/4"-20 thread for tripod mounting or another type of stand or truss.

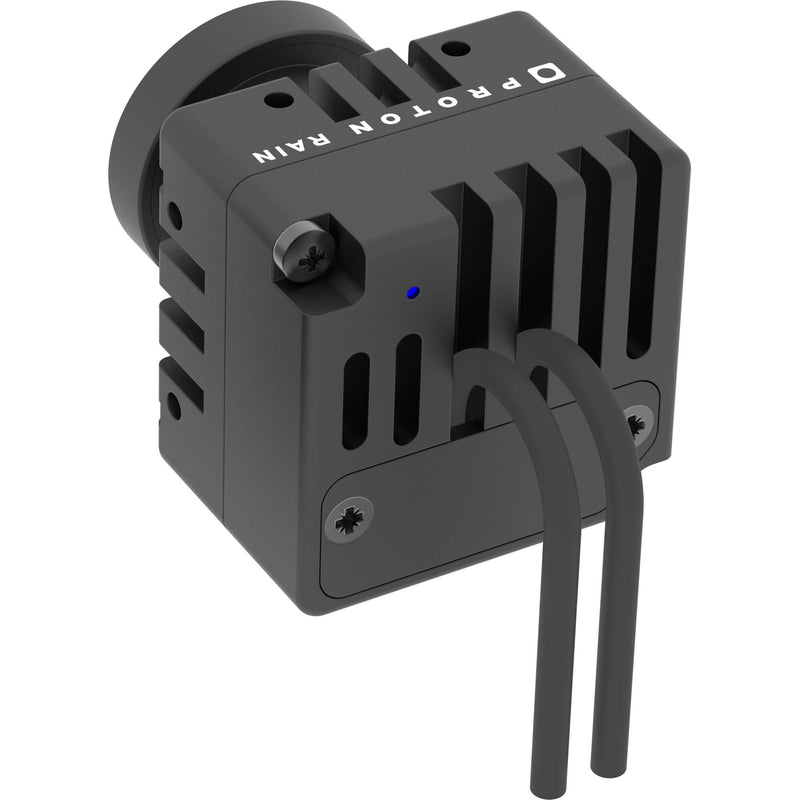

The 97° distortion-free 3.2mm f/2.3 lens comes already mounted on the camera's M12/S lens mount, but it can be swapped with other optional lenses. The camera supports resolutions up to 1080p60 and RS-485 control. A 6' cable with BNC/SDI connectivity is integrated into the camera. There are integrated status LEDs on the front and rear of the camera and an integrated tally light.
Items Included
- Proton RAIN Full HD Mini Broadcast Camera
- 3.2mm f/2.3 Lens (M12/S Mount)
- Limited 6-Month Manufacturer Warranty
Additional Resources
Proton PCI-RAIN Specs
| DC Input |
4.5 to 25 V
|
| Power Consumption |
2.5 W
|
| IP Rating |
IP67
|
| Lens Mount |
M12/S
|
| Field of View |
Horizontal: 124° with 2.2mm Lens
Vertical: 85° with 2.2mm Lens Horizontal: 97° with 3.2mm Lens Vertical: 64° with 3.2mm Lens |
| ISO Range |
75-2400
200-6400 (Low Light Mode) |
| Shutter |
6 ?s, 1 fps
|
| Connectivity |
1 x Built-In SDI Cable with BNC Connector (6' / 1.8 m)
|
| Resolutions |
1080p at 23:98/24/25/29:97/30/47/48/50/59:94/60 fps
1080i at 50/59:94/60 fps |
| Microphone Type |
Integrated Stereo Microphone
|
| Mounting |
1x 1/4"-20 Thread
8x M2.5 Thread |
| Color |
Black
|
| Certifications |
EU, FCC, RoHS
|
| Operating Conditions |
-22 to 140°F / -30 to 60°C
|
| Dimensions |
1.2 x 1.2 x 1" / 30 x 30 x 26 mm
|
| Weight |
1.4 oz / 39 g
|
| Package Weight |
0.315 lb
|
| Box Dimensions (LxWxH) |
7.15 x 5.45 x 1.75"
|
