Description

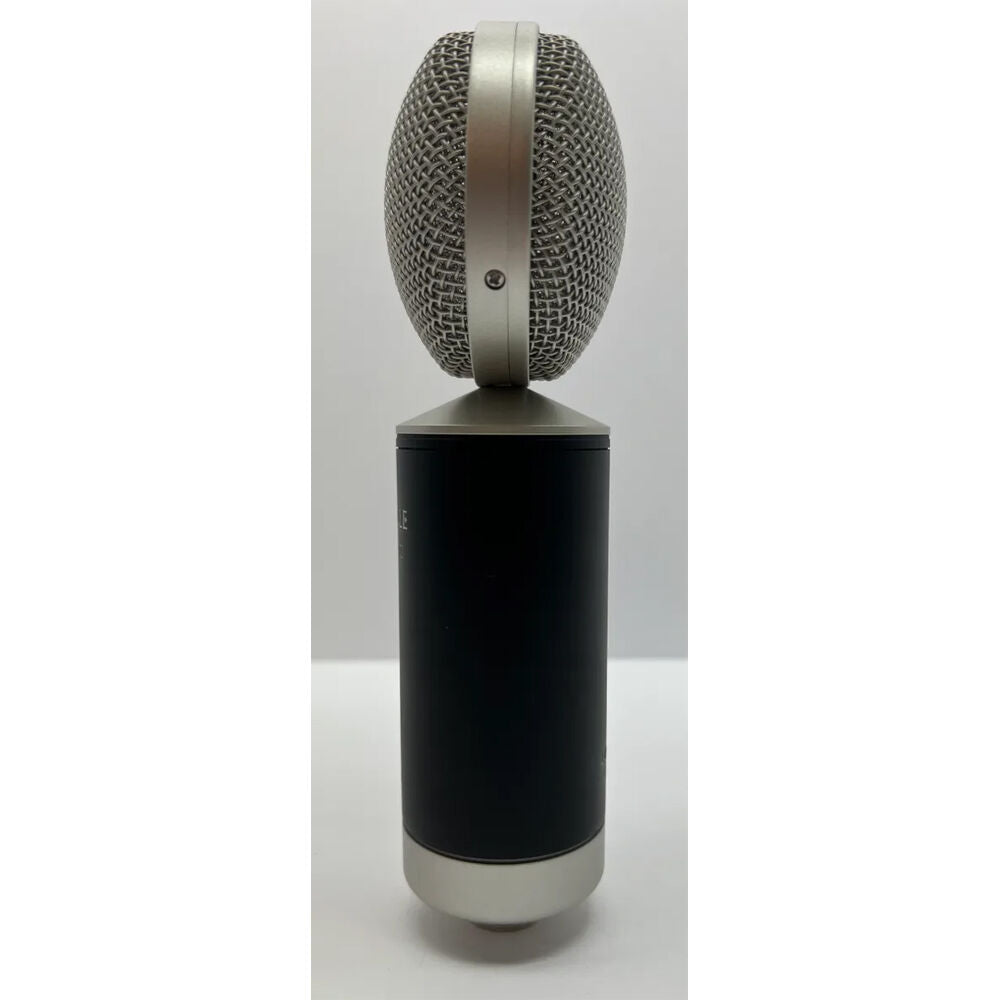

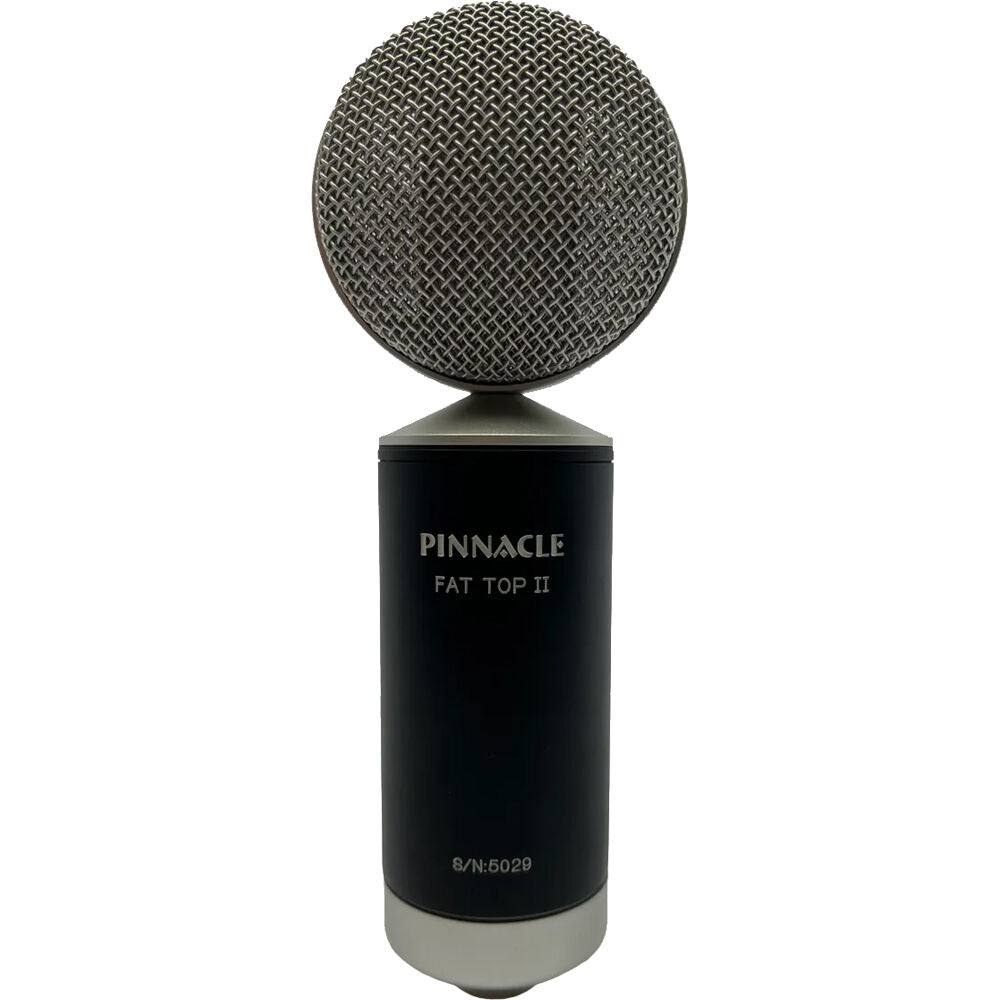

Pinnacle Microphones FAT HEAD II Overview
Now featuring the Lundahl LL291 transformer, the black and silver Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe is versatile enough to handle a wide variety of vocal or instrument recordings and live sound applications. The FAT Top II utilizes a hand-tuned ribbon element that incorporates the legendary symmetrical ribbon design in order to achieve a true symmetrical figure-8 polar pattern. Its frequency and sensitivity response deliver pristine audio results and the element's design is very useful when executing a mid-side or Blumlein recording. The FAT Top II ships with a shockmount, leatherette pouch, and aluminum case.

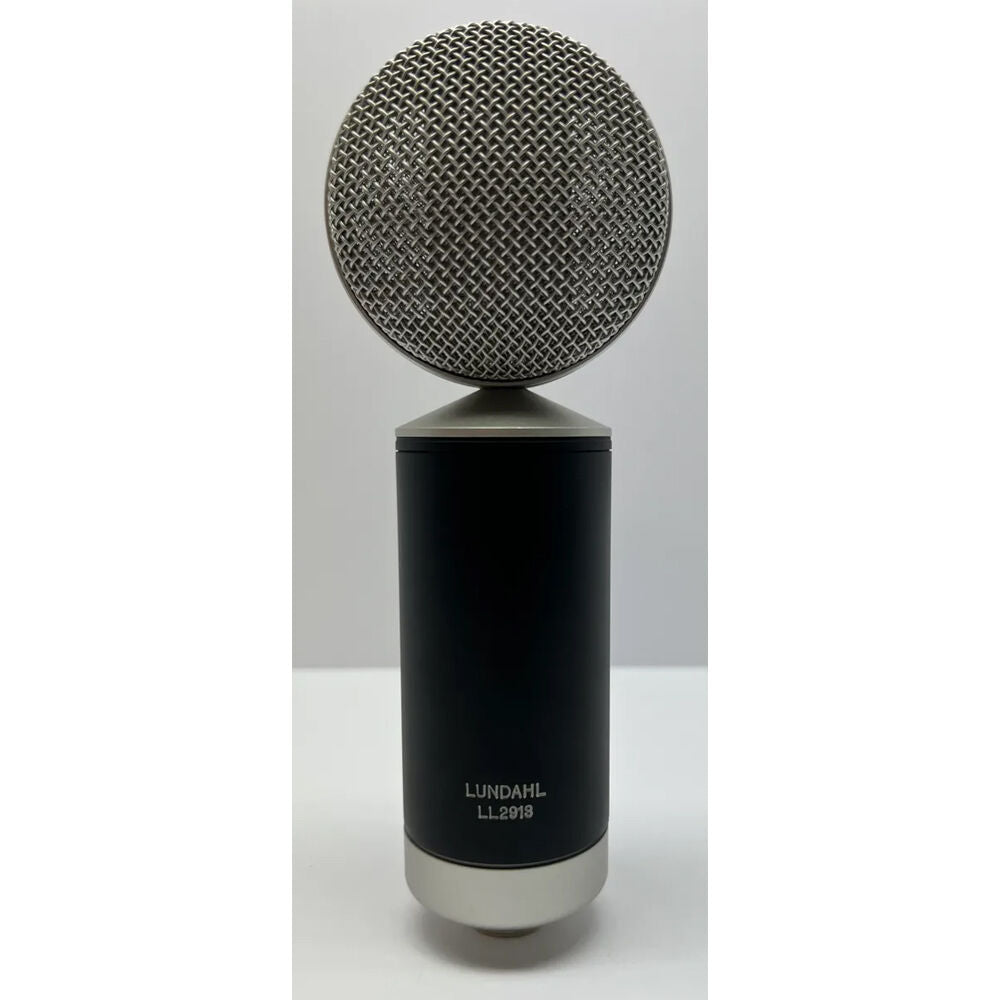

Lundahl LL2913 transformer
Unique polished radian-grille design

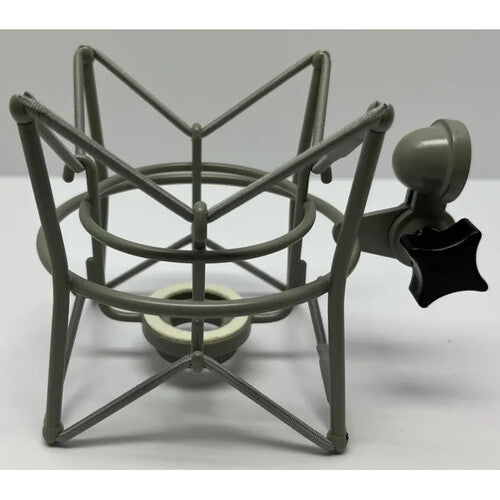

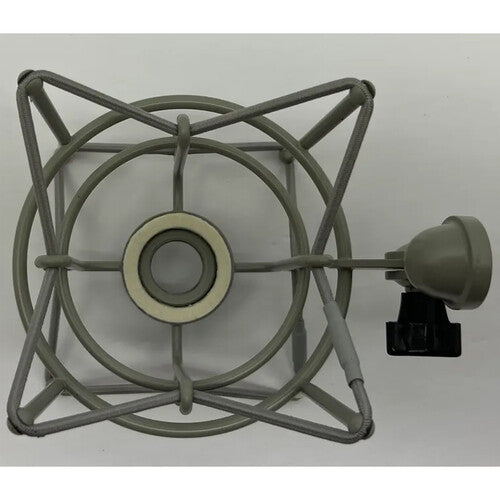

Shockmount
Hand-tuned ribbon element
True figure-8 pattern
Balanced audio input signal to both sides of the ribbon assembly
Suited for guitar cabinets, drum overheads, vocal, piano, horns, strings, and more
UPC: 608766970089

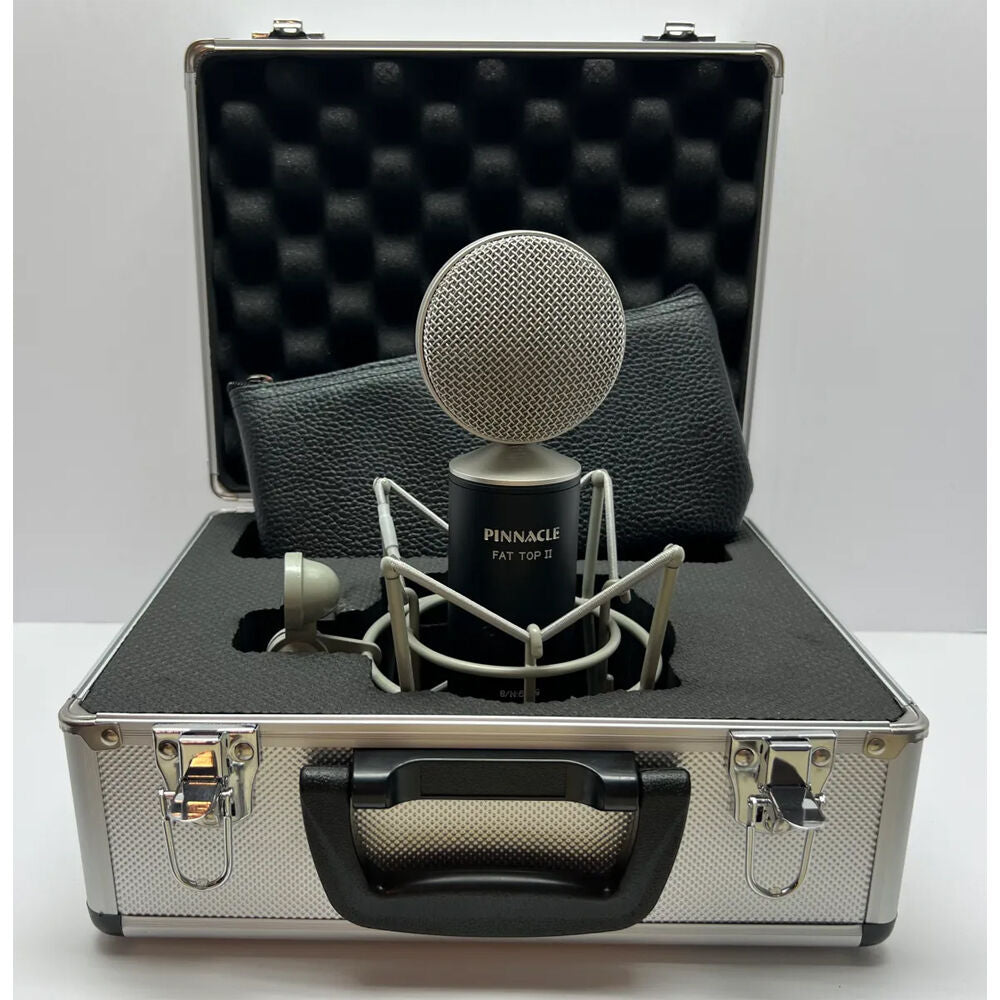

In the Box
- Pinnacle Microphones FAT Top II Ribbon Microphone Deluxe (Black Body / Silver Grille)

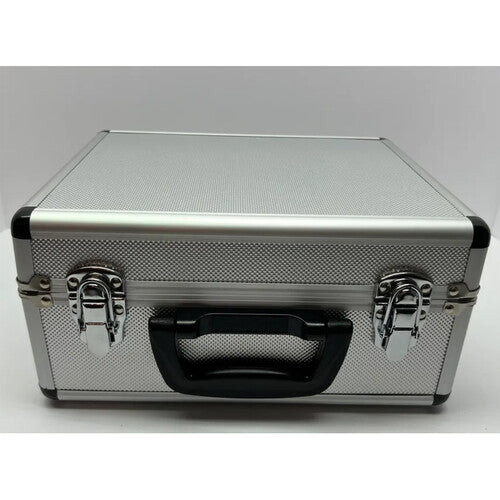

- Aluminum Case
- Shockmount
- Carrying Pouch
- Limited 1-Year Manufacturer Warranty
Pinnacle Microphones FAT HEAD II Specs
Microphone
| Primary Applications | Studio Recording |
| Form Factor | Stand/Boom Mount |
| Intended Sound Sources | Vocals, Speech/Voice Over, Acoustic Guitar, Electric Guitar, Electric Bass, Double Bass, Piano, Drums, Percussion, Overhead, Instrument, Horns, Strings, Choir, Orchestra, Room Ambiance |
| Sound Field | Mono |
| Capsule | Ribbon |
| Diaphragm | 1.75" / 44.45 mm (Ribbon) |
| Polar Pattern | Figure-8 |
| Orientation | Side Address |
| High-Pass Filter | Yes |
| Gain Adjustment | Yes |
Performance
| Frequency Range | 30 Hz to 15 kHz ±3 dB |
| Maximum SPL | 135 dB SPL |
| Impedance | 200 Ohms |
| Load Impedance | 1000 Ohms |
| Sensitivity | -54.4 dB |
| Signal-to-Noise Ratio | 70 dB |
| Equivalent Noise Level | 17 dB A-Weighted |
| Analog Output | 1 x XLR 3-Pin Male (on Mic) |
| Output Connectors (Digital) | None |
| OS Compatibility | None |
Physical
| Color | Black |
| Mounting | Shockmount (Included) |
| Mounting Thread Size | 5/8"-27 Female |
| Included Case | Hard Case |
| Included Filters | None |
| Dimensions | ø: 3 x L: 8.25" / ø: 76.2 x L: 209.55 mm |
Packaging Info
| Package Weight | 5.61 lb |
| Box Dimensions (LxWxH) | 12.1 x 10.4 x 6.5" |
