Description
Ocean Matrix OMX-HDMI-HDB Overview

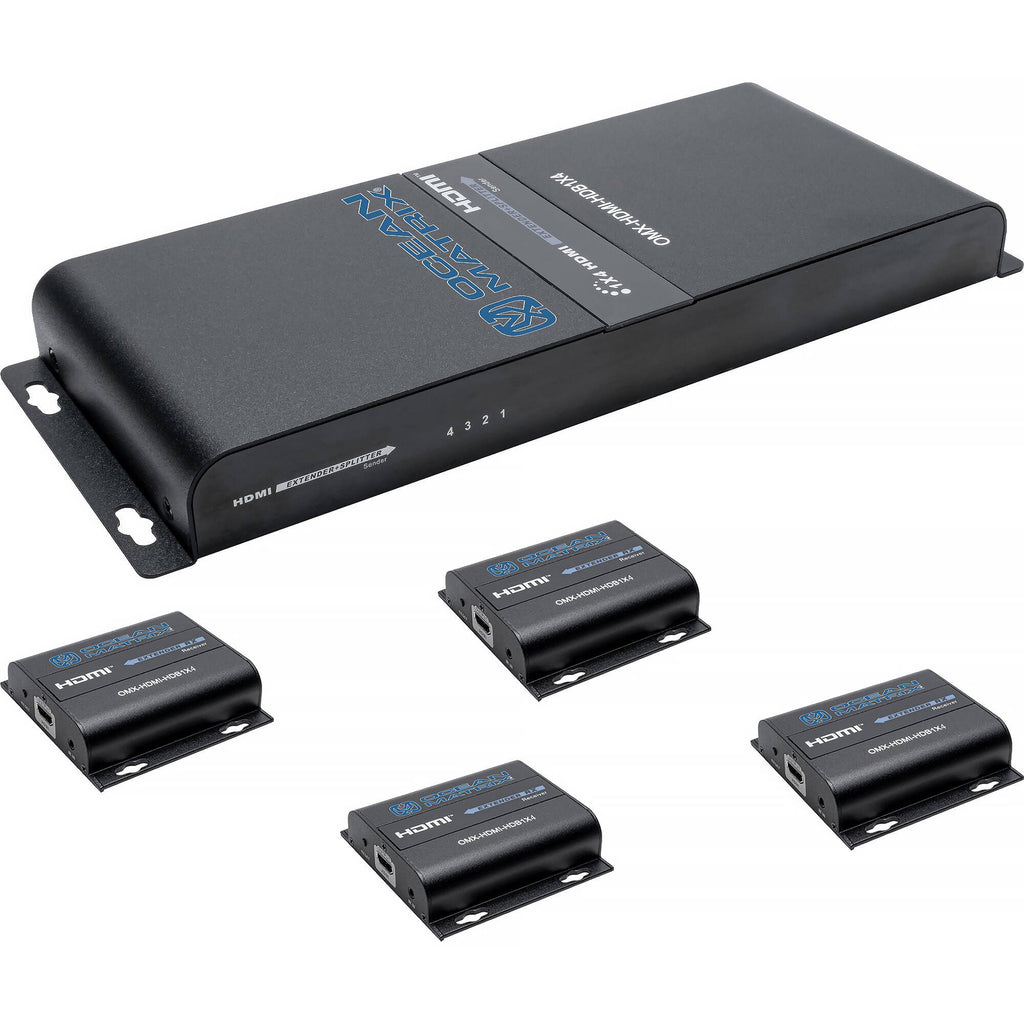

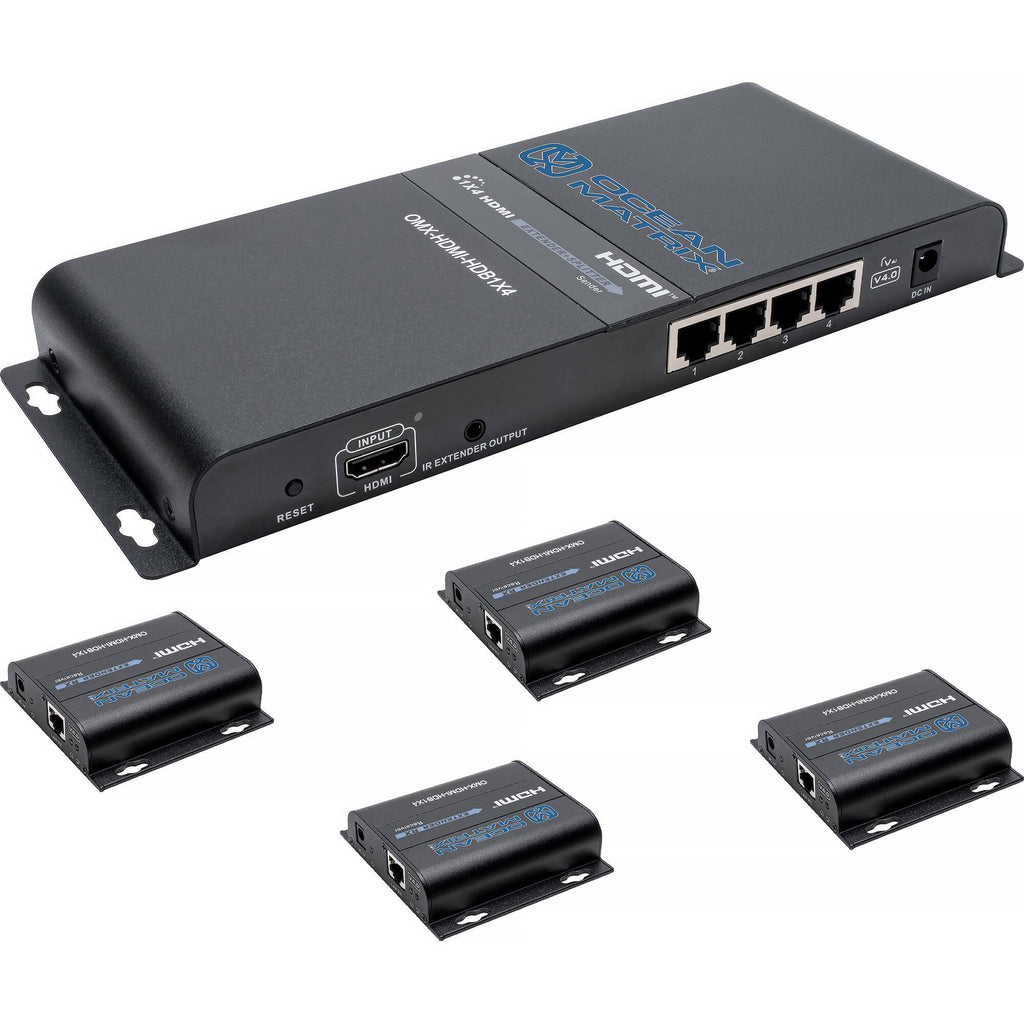

Extend and split your HDMI signal using the 1x4 HDMI 1080p Extender/Splitter from Ocean Matrix and local Cat 6 cable. This transmitter and receiver kit includes a transmitter with one HDMI input and four HDBaseT outputs for splitting and extending the HDMI signal. The four compact receiver units input the signal via HDBaseT and output to remote HDMI displays. It enables you to send a 1080p60 HDMI signal up to 394' over Cat 6 cable and features IR pass-through. You can power the units using the included power supplies.
Quick Features
- Splits a single HDMI input signal into four HDMI output signals identical to the input
- Extends HDMI signals up to 262' over Cat 5 cable, up to 328' over Cat 5e, and up to 394' over Cat 6
- Supports Full HD resolutions up to 1080p60
- Plug and play
- Rugged metal mountable housing
- Lightning, surge, and ESD protected
Items Included
- Ocean Matrix 1x4 HDMI 1080p Extender/Splitter (394')

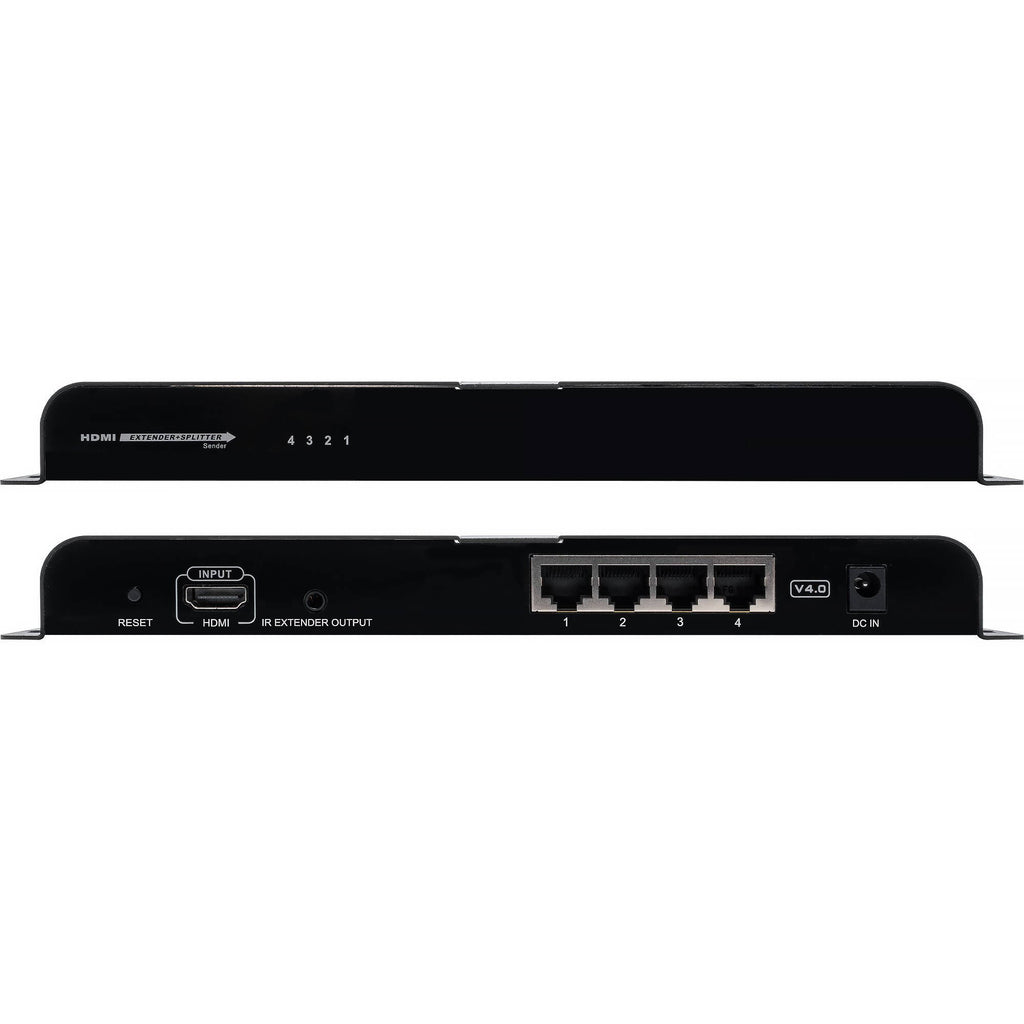

- Transmitter

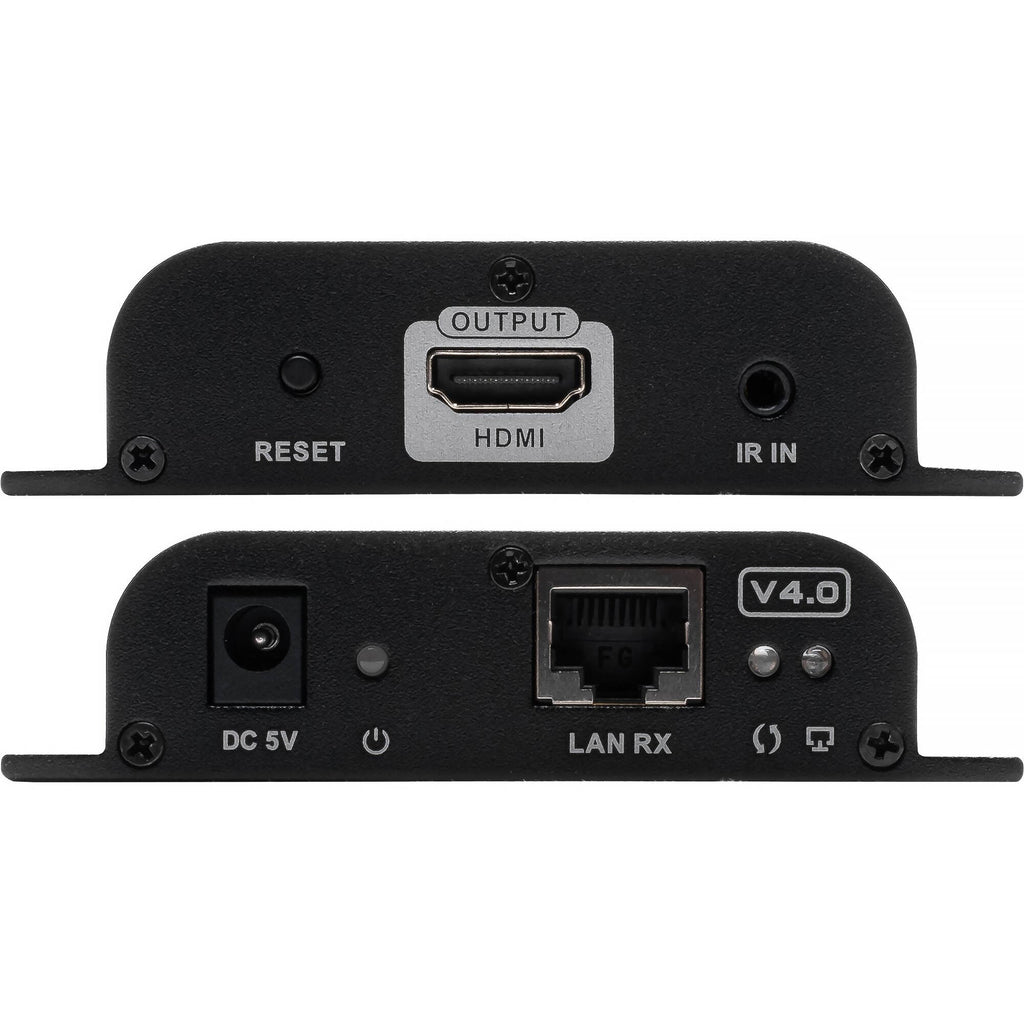

- 4 x Receiver

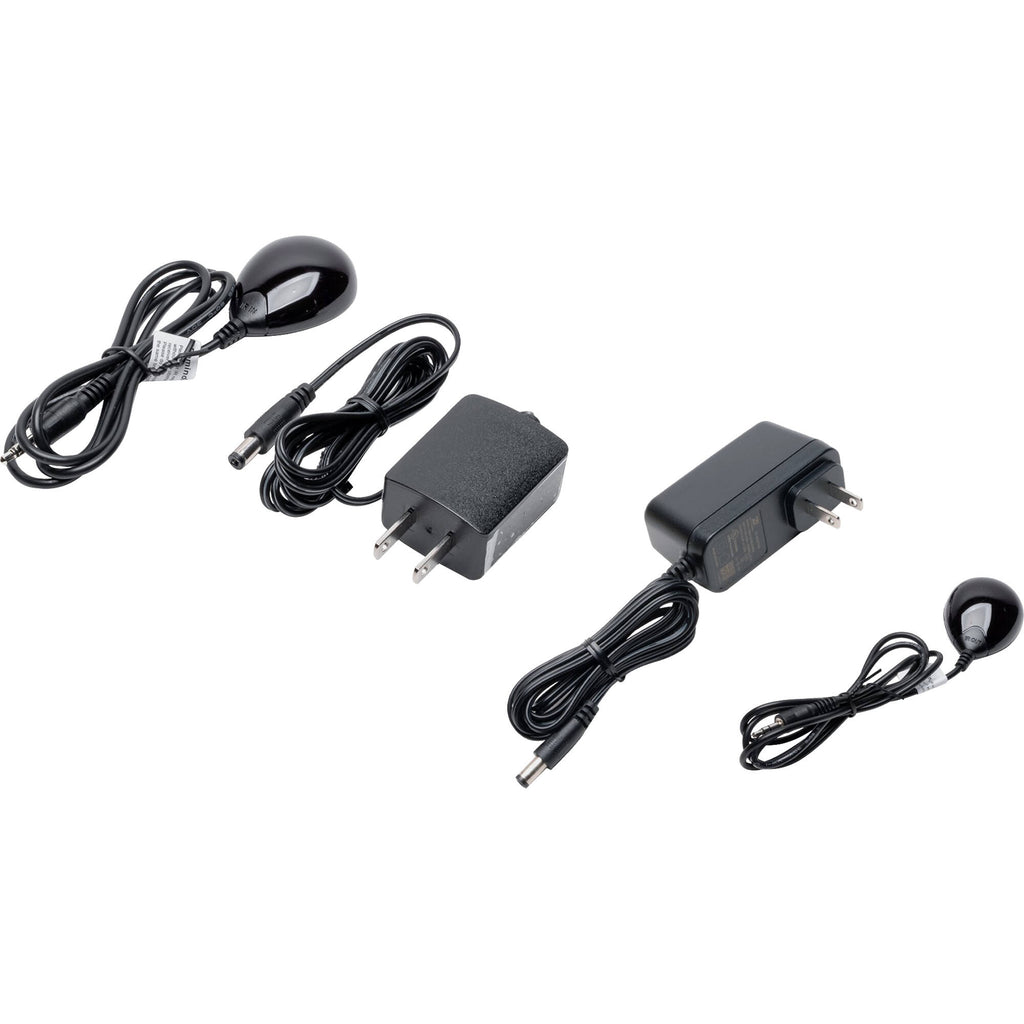

- 24V Power Adapter (Transmitter)
- 10 x Mounting Ear
- 5 x IR Blaster Cable
- IR Receiver Cable (20 to 60 kHz)
- 5 x 3-Pin Terminal Connector
- 5-Pin Terminal Connector
- Limited 1-Year Manufacturer Warranty
Additional Resources
Ocean Matrix OMX-HDMI-HDB Specs
Key Specs
| Inputs |
1 x HDMI (HDMI 1.3) Female
4 x RJ45 (HDBaseT) Female |
| Embedded Audio |
HDMI
|
| Outputs |
4x RJ45 (HDBaseT) Female
4x HDMI (HDMI 1.3) Female |
| Video Format |
HDMI
1080p: 50/60 fps 1080i: 50/60 fps 720p: 50/60 fps 576p: 50 fps 576i: 50 fps 480p: 60 fps 480i: 60 fps |
Interfaces
| Inputs |
1 x HDMI (HDMI 1.3) Female
4 x RJ45 (HDBaseT) Female |
| Embedded Audio |
HDMI
|
| Outputs |
4x RJ45 (HDBaseT) Female
4x HDMI (HDMI 1.3) Female |
| Other I/O |
1x 1/8" / 3.5 mm (IR) Output
4x 1/8" / 3.5 mm (IR) Input |
Standards
| HDR Support |
No
|
| HDCP Support |
Yes, Version 1.4
|
| EDID Support |
No
|
Transmission
| Max Transmission Distance |
1080p:
262.5' / 80 m (via Cat 5) 1080p: 328.1' / 100 m (via Cat 5e) 1080p: 393.7' / 120 m (via Cat 6) |
| Video Format |
HDMI
1080p: 50/60 fps 1080i: 50/60 fps 720p: 50/60 fps 576p: 50 fps 576i: 50 fps 480p: 60 fps 480i: 60 fps |
Power
| Power I/O |
1x Barrel (5 VDC at 2 A) Input
|
| Power Consumption |
Device: 5 VDC at 2 A (10 W)
|
| ESD Protection |
Yes
|
General
| Operating Conditions |
32 to 140°F / 0 to 60°C
|
| Material of Construction |
Metal
|
| Dimensions |
9.9 x 3.9 x 1.0" / 251.5 x 99.1 x 25.4 mm
|
| Weight |
1.3 lb / 590 g
|
Packaging Info
| Package Weight |
5.235 lb
|
| Box Dimensions (LxWxH) |
14.9 x 8.5 x 6.9"
|
