MSI PRO B850M-P WIFI AMD Micro-ATX Motherboard

Roll over image to zoom in

MSI PRO B850M-P WIFI AMD Micro-ATX Motherboard


	₹ 29025.0 includes GST and import duties.
	B2B customers can avail ₹ 4426.31 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	MSI
SKU:	7441397121109
MPN:	PRO B850M-P WIFI
UPC/HSN:	824142426722

Share this product

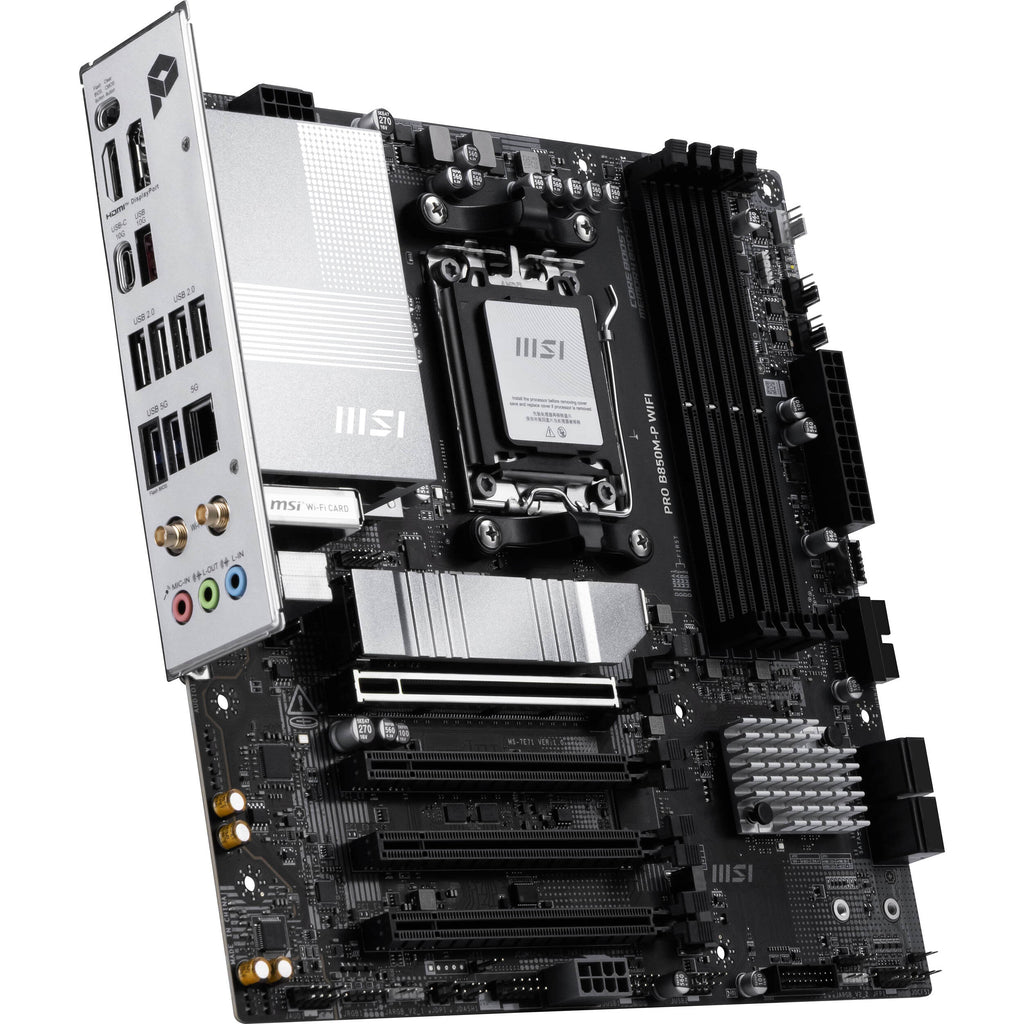

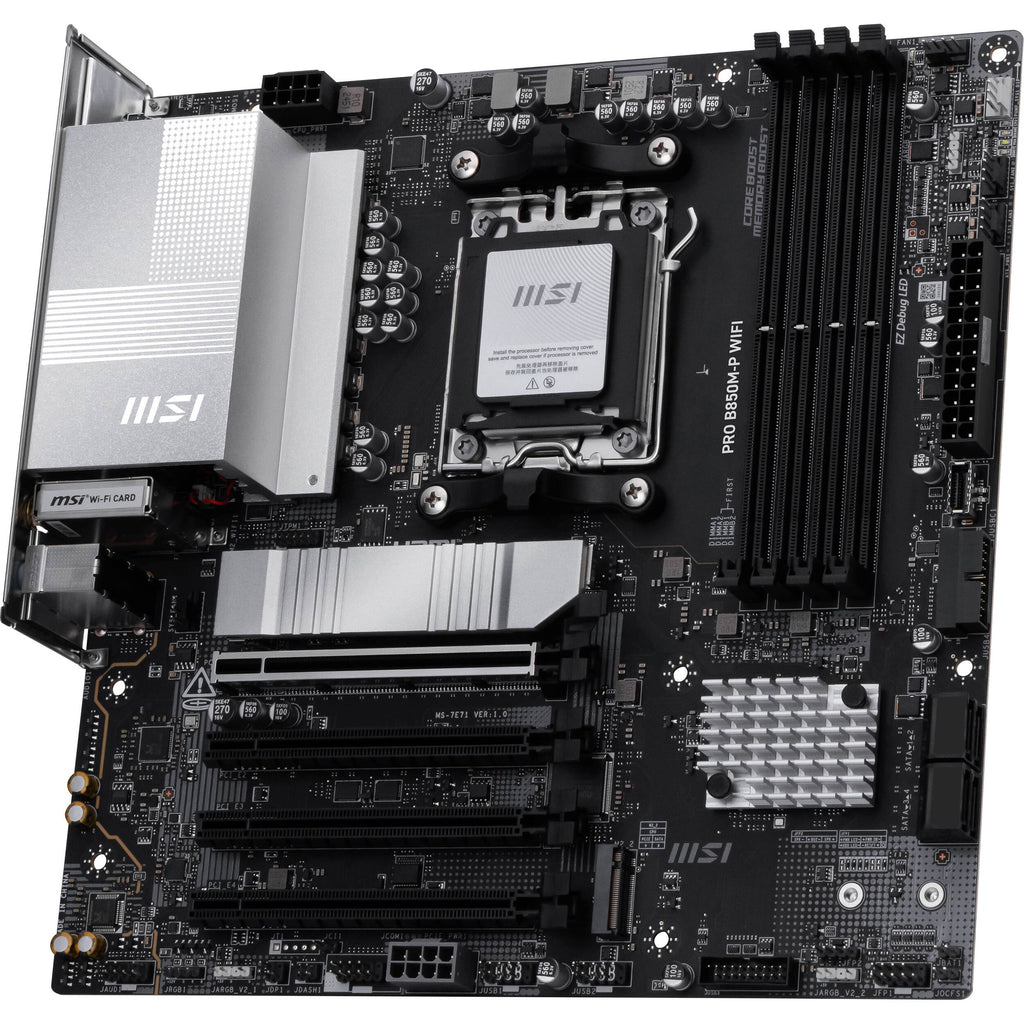

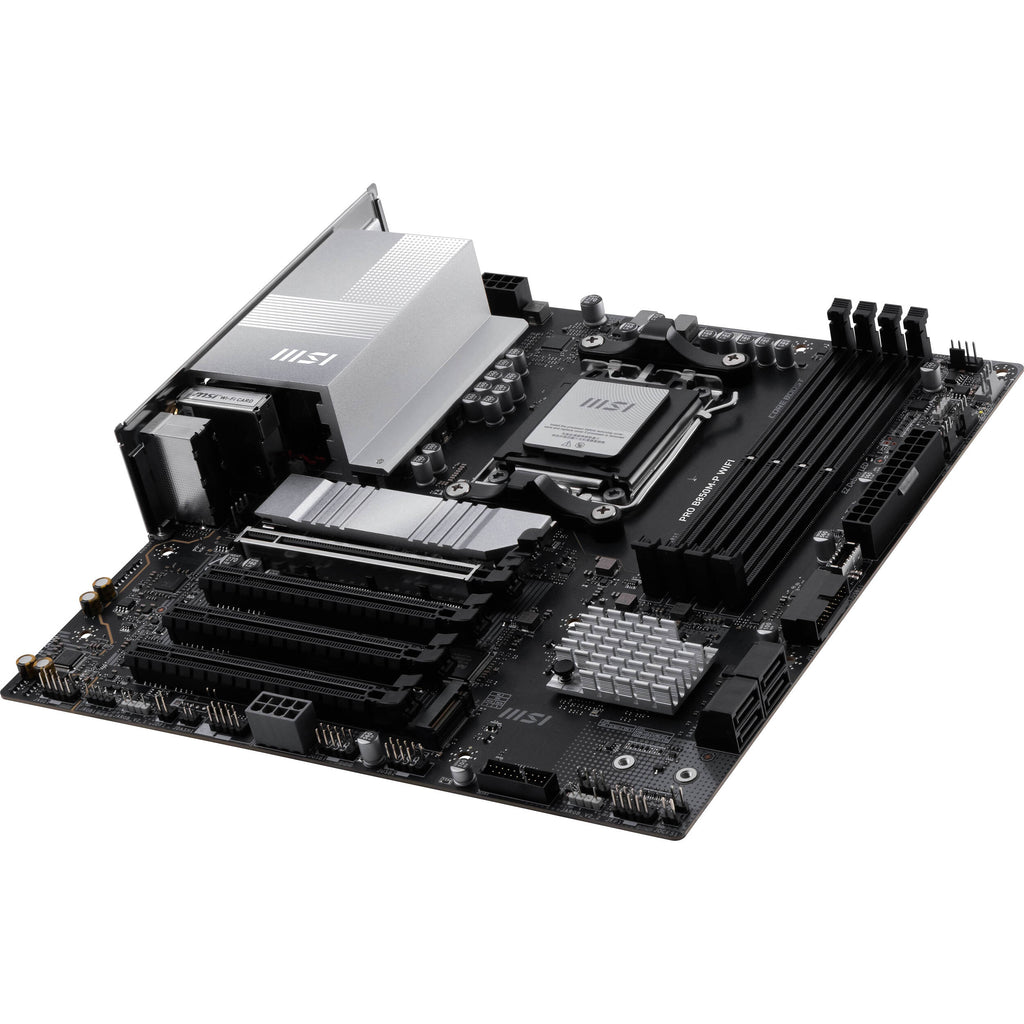

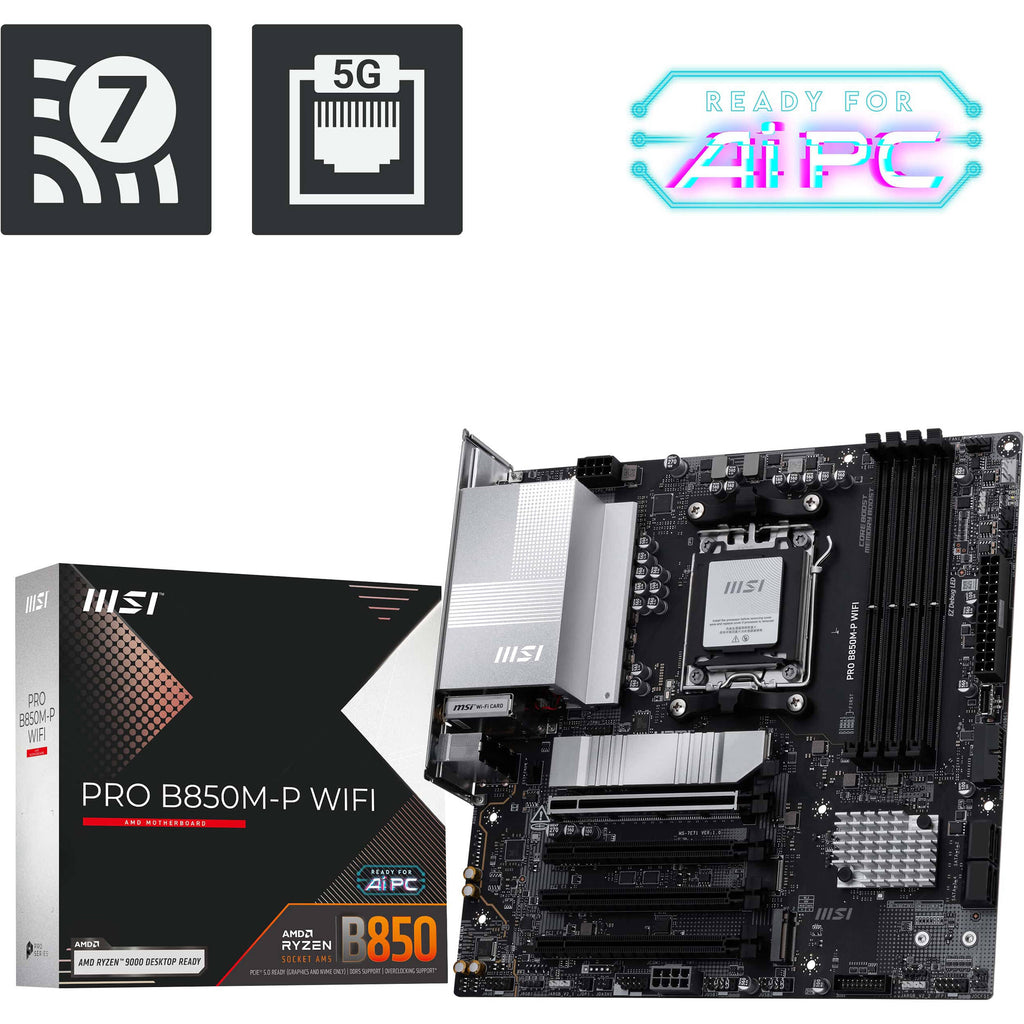

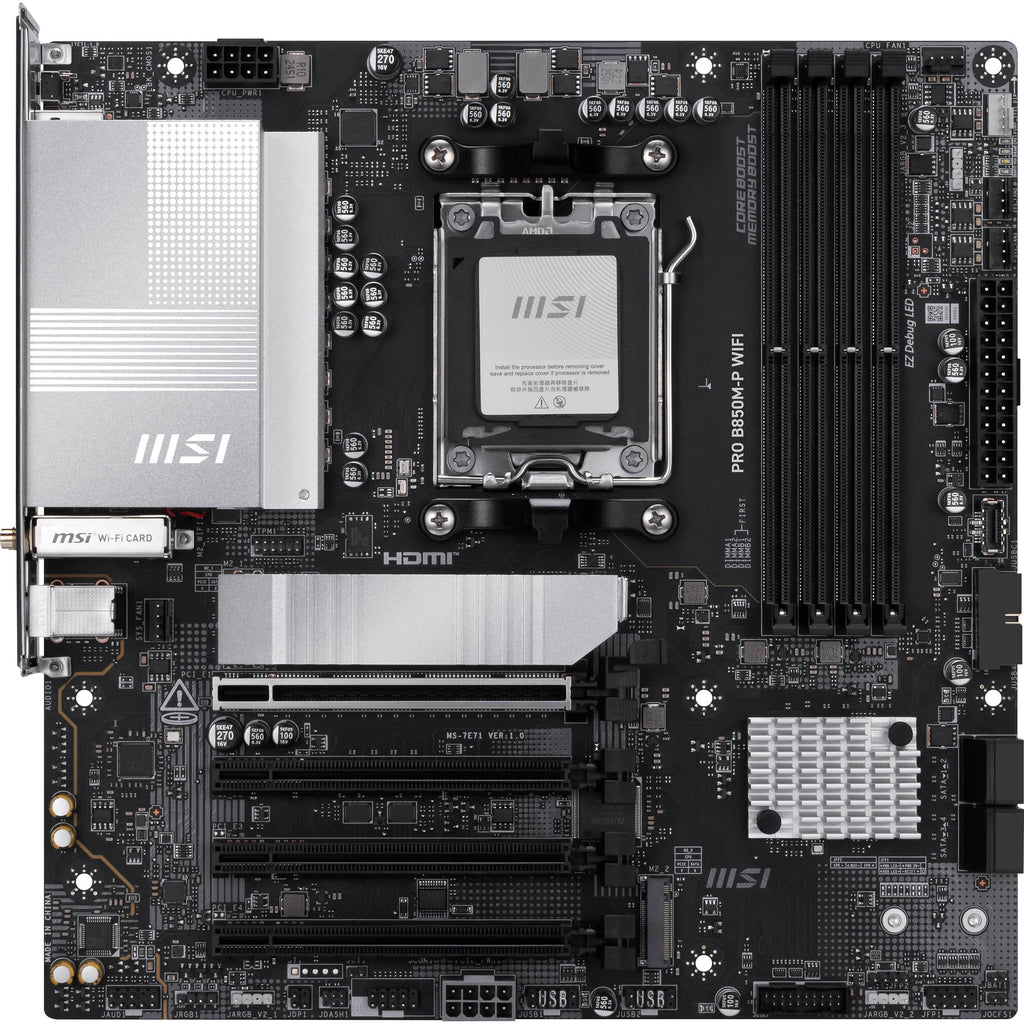

MSI B850M-P WiFi Overview

Lay the foundation for your next small form-factor gaming rig with the PRO B850M-P WIFI AMD Micro-ATX Motherboard from MSI. Featuring a premium design with support for overclocking, this motherboard delivers a comprehensive and versatile experience for gamers looking to optimize their setup.

Supporting the AMD AM5 socket and B850 chipset, you can install an AMD Ryzen 7000, 8000, or 9000 series processor and customize the performance to fit your needs. Up to 256GB of dual-channel 8200 MHz DDR5 memory may be installed in overclocked mode across four slots to deliver smooth multitasking. A PCIe 5.0 x16 expansion slot allows you to utilize Nvidia's 50-series graphics cards and still have access to additional PCIe 3.0 slots. In addition to four SATA III drives, you can install lightning-fast SSDs into the M.2 NVMe PCIe 5.0 slot and the M.2 NVMe PCIe 4.0 slots. The rear panel includes extensive connectivity, including one USB-C 3.2 Gen 2 port, one USB-A 3.2 Gen 2 port, two USB-A 3.2 Gen 1 ports, and four USB 2.0. Integrated Wi-Fi 7 (802.11b) support and a 5G Ethernet port let you connect to compatible high-speed networks. Windows 11 64-bit is required to take advantage of all the motherboard's features.

Performance

AI Ready

Designed for the future of AI computing, this motherboard is equipped with the power and connectivity needed for demanding AI applications.

Fast Storage

Kick load times to the curb. In addition to supporting four 6 Gb/s SATA III drives, the M.2 PCIe 5.0 slot can deliver up to 128 GB/s transfer speeds with compatible NVMe SSDs. Installed SATA and M.2 drives may be put in RAID 0, 1, or 10 modes.

Extensive Connectivity

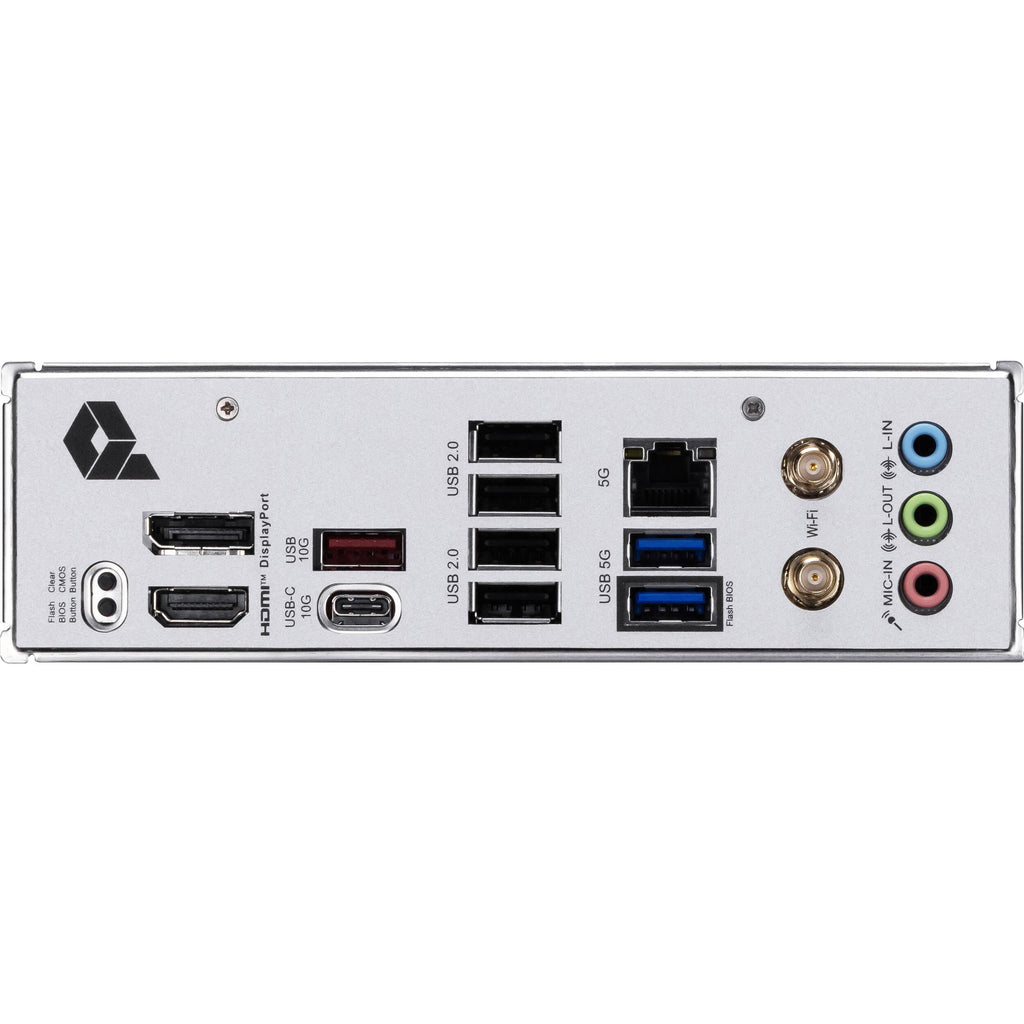

The rear panel includes one 10 Gb/s USB-C 3.2 Gen 2 port, one 10 Gb/s USB-A 3.2 Gen 2 port, two 5 Gb/s USB-A 3.2 Gen 1 ports, and four USB 2.0 ports. A DisplayPort output and HDMI port allow you to take advantage of processors with integrated graphics.

Front-panel headers support one 10 Gb/s USB-C port alongside four USB-A 5 Gb/s and four USB-A 2.0 ports.

Power System

The 7+2+1 phase power system features an aggressive VRM design with a digital CPU power system and Core Boost technology to help sustain heavy gaming loads.

Easy Overclocking

Easily boost your CPU performance with the press of a single button for instant overclocking through Game Boost. Support for XMP and AMD Expo technology simplifies memory overclocking.

Advanced Cooling

Extended Heat Sink

The surface enhances heat dissipation to help ensure that systems continually operate at high speeds.

M.2 Shield Frozr

Specially designed M.2 SSD heat sinks help to prevent speed throttling with intensive workloads.

Thermal Pad & Additional Choke Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores run at high performance.

System Cooling

Install up to three system fans and a water pump solution to optimize performance. Frozr AI automatically detects the CPU and GPU temperatures, adjusting the fan speeds accordingly.

Additional Features

AI LAN Manager

MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

Automatically prioritizes games above other applications
Allows you to change applications' traffic priority
Allows you to customize bandwidth for each application
Analyzes Wi-Fi signals to select the best source

Studio-Grade Audio

The 7.1 audio system provides clear surround sound with minimal distortion.

Mystic Light

Enhance your system with RGB lighting strips and other devices, which can be synced with Mystic Light?compatible peripherals such as keyboards and mice.

Durable Design

The 6-layer PCB includes 2 oz of thickened copper to ensure stable performance.

UPC: 824142426722

Items Included

MSI PRO B850M-P WIFI AMD Micro-ATX Motherboard
EZ Wi-Fi Antenna
EZ M.2 Clip II Remover
EZ M.2 Clip II
SATA Cable
2 x M.2 Screw / Standoff Sets
Limited 3-Year Manufacturer Warranty

Additional Resources

User Manual

5.2 MB

MSI B850M-P WiFi Specs

Key Specs

Chipset	AMD B850
CPU Socket	AM5
Memory Slots	4x 288-Pin
Memory Type Support	DDR5
M.2 Slots	2280
Expansion Slots	1x PCIe 5.0 x16 3x PCIe 3.0 x1
Wi-Fi	No
Form Factor	Micro-ATX

CPU

Chipset	AMD B850
CPU Socket	AM5

Back Panel I/O

USB	1x USB-C (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI 1x DisplayPort
Audio	3x 1/8" / 3.5 mm
Ethernet / Controller	1x 5GbE
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback, Clear CMOS

Memory

Memory Slots	4x 288-Pin
Memory Type Support	DDR5
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4x SATA III
M.2 Slots	1x M.2 (M Key) 2280/2260/2242 (PCIe 4.0 x4) 1x M.2 (M Key) 2280/2260/2242 (PCIe 4.0 x4 / SATA III)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10 (SATA)

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 3x PCIe 3.0 x1
USB	2x USB 2.0 Header (Supports 4 USB-A Port) 2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling	1x 4-Pin CPU 3x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 12V-2X6 (12VHPWR)
Security	Chassis Intrusion, TPM Module
LED Header	4x RGB
Diagnostics	Clear CMOS

BIOS

ROM

256 Mb

Front Panel I/O

AAFP

Audio

Audio Codec	Realtek ALC897 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	No
Bluetooth	No

Software

OS Compatibility

Windows

Physical

Form Factor	Micro-ATX
Dimensions	9.6 x 9.6" / 243.8 x 243.8 mm

Packaging Info

Package Weight	2.87 lb
Box Dimensions (LxWxH)	11.9 x 11.2 x 2.9"
