Description

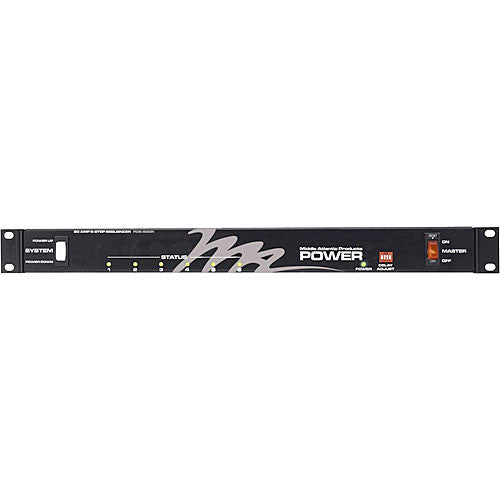

This PDS-620R 20-Amp Power Sequencing & Distribution Unit from Middle Atlantic is a power unit that provides 6-step sequencing to (6) rear outlets. An adjustable start-time delay allows this unit to be daisy chained with up to (3) sequencers acting as a single unit. This configuration is facilitated by a connection block located on the unit's rear panel.
Front-panel controls and LED indicators can be used to set and monitor sequencing intervals. The front panel also features a combination power switch/circuit breaker. The rear terminal block connection will also permit remote control functionality.
This model features (1) 20A circuit and (6) NEMA 5-20R outlets. It also includes (1) NEMA 5-20P cord termination.
- Power Sequencing & Distribution
- This unit provides 6-step sequencing to (6) rear outlets.
- Daisy-Chain Configuration
- Up to (3) of these units can be daisy chained together to function as a single unit.
- Control & Monitoring
- This unit can be controlled and monitored via the interface and LEDs located on the front panel.
- Remote Control
- A block terminal on the rear panel permits remote control of the unit.
- Power Sequencing & Distribution Unit
- Power Cord
- Limited Lifetime Warranty to Original Purchaser
| Construction | Metal |
| Finish | Black powder coat |
| Circuits | (1) 20A |
| Cord Termination | (1) NEMA 5-20P |
| Power Outlets | (6) NEMA 5-20R |
| Dimensions (HxWxD) | 1.75 x 19 x 8.75" 1U rack height 9' power cord |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 11.0 lb |
| Box Dimensions (LxWxH) | 21.5 x 14.5 x 4.0" |
