Description
Product Overview

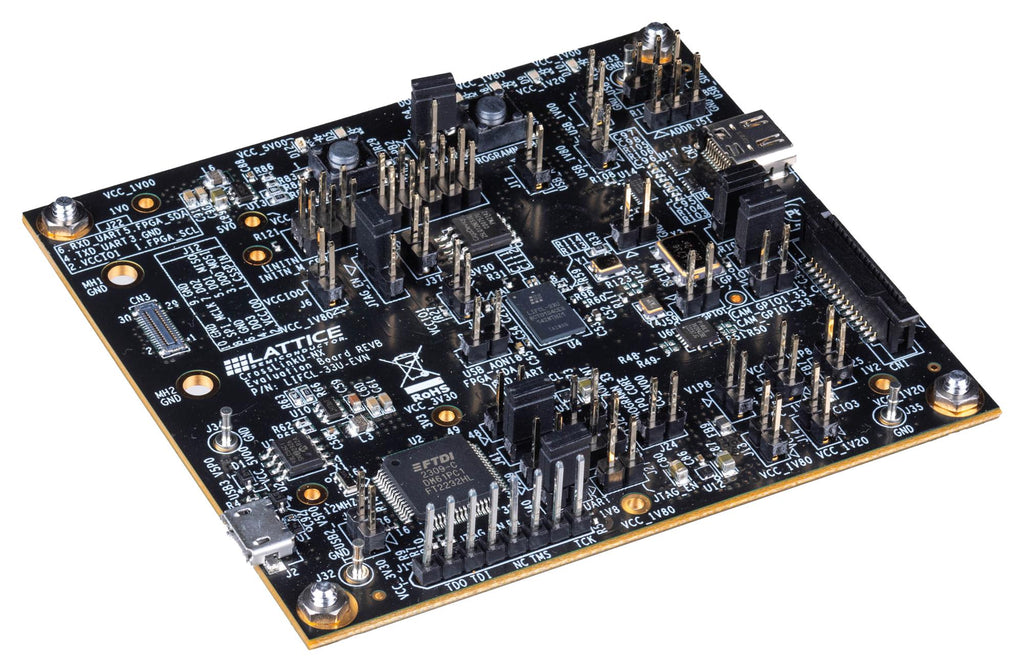

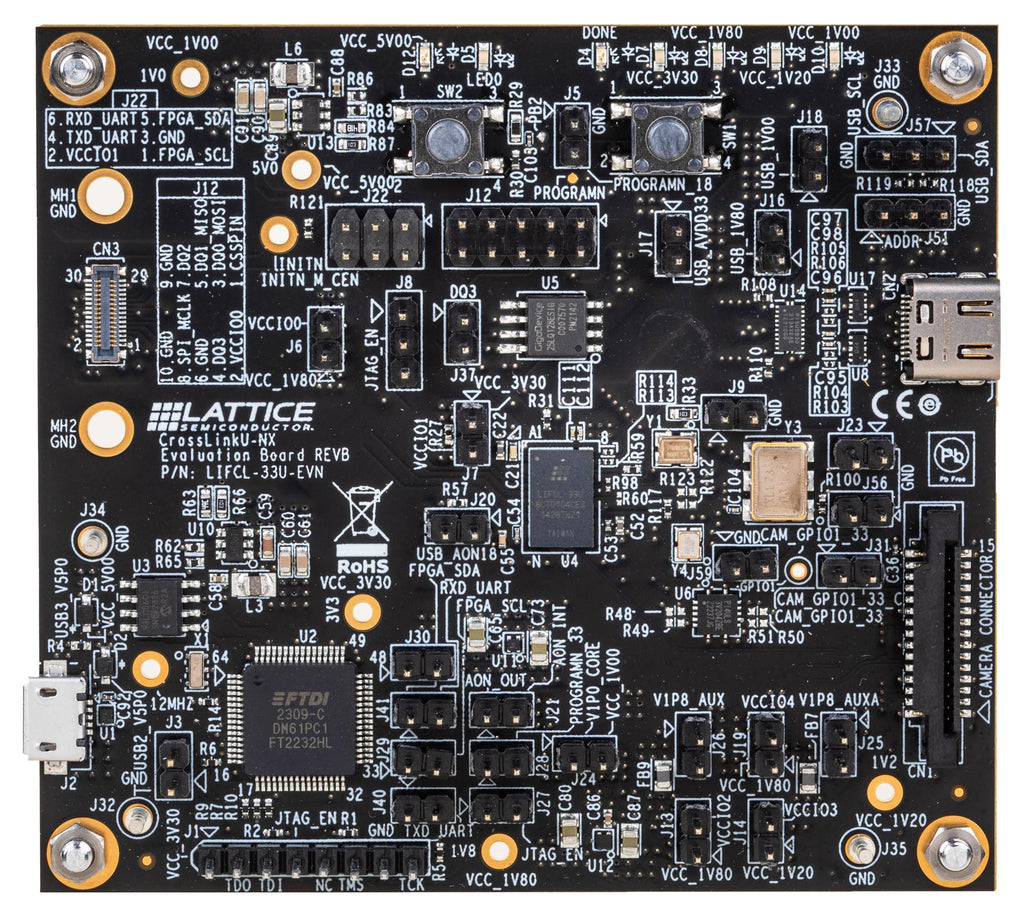

LIFCL-33U-EVN is a CrossLinkU-NX evaluation board. It is specifically designed as the first FPGAs with integrated USB functionality in its class that feature hardened USB 2.0 and USB 3.2 Gen 1 PHY (physical layer), low power standby with Always-On, and a complete set of reference designs to accelerate USB device implementation on FPGA. The board�s key component is the CrossLinkU-NX FPGA, which can receive input from a camera and sends video output over LIFCL-33U�s USB 3.0 interface through the USB Type-C connector. This board also features two PMOD (Peripheral Module) connectors through a daughter board for off board support.
- Supports MIPI CSI-2 receiver (Soft D-PHY) interface for camera data
- Implement two PMOD expansion headers available through daughter board
- Support SPI flash configuration and micro-USB connector for power and FPGA configuration
- Radiant programmer through USB/FTDI interface (JTAG or SPI)
- Boot from onboard flash and external SPI programming through header
Contents
Lattice CrossLinkU-NX evaluation board, Micro USB cable for programming (USB-A to Micro-B), USB3.1 Type C cable for aggregation(USB Type C to USB Type C), Quick start guide, Lattice Radiant® Software download information.
Product details
Other details
| Brand | LATTICE SEMICONDUCTOR |
| Part Number | LIFCL-33U-EVN |
| Quantity | Each |
| Technical Data Sheet EN |  |
