Description

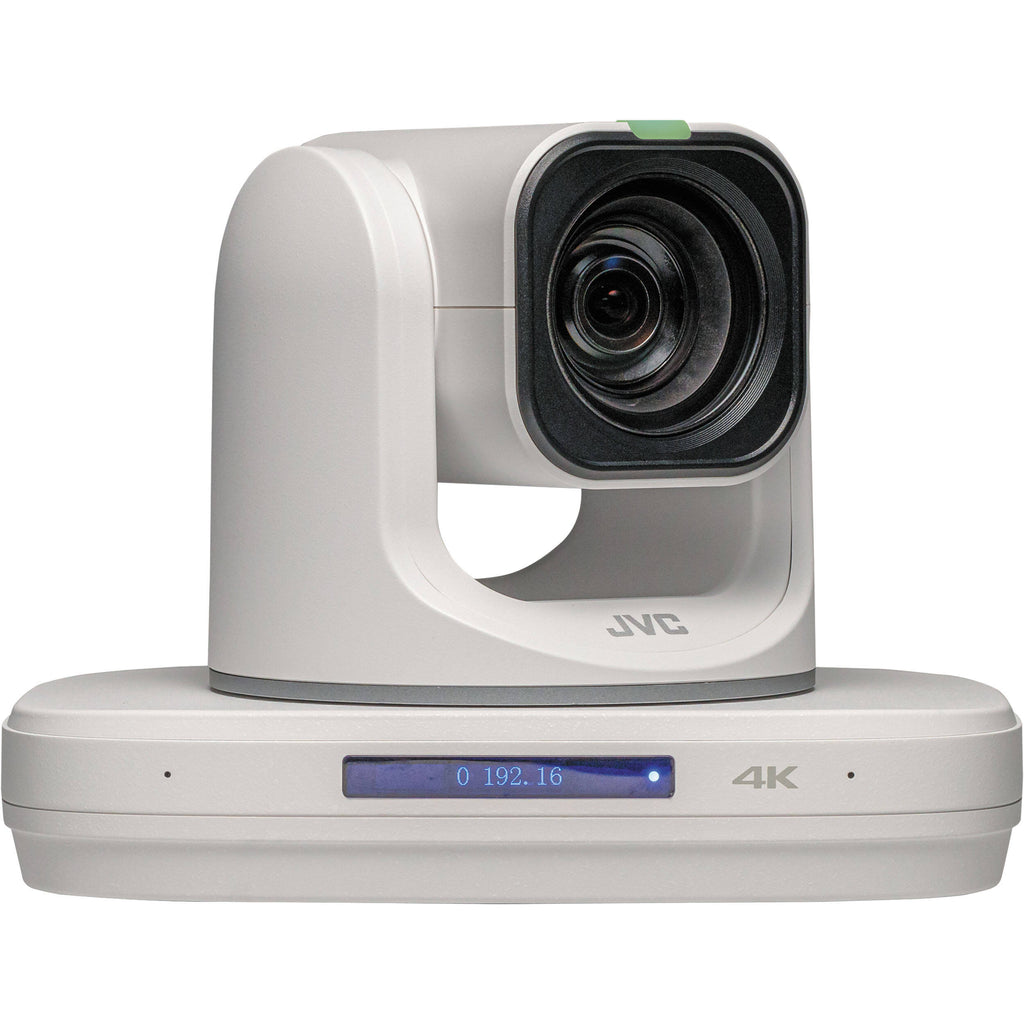

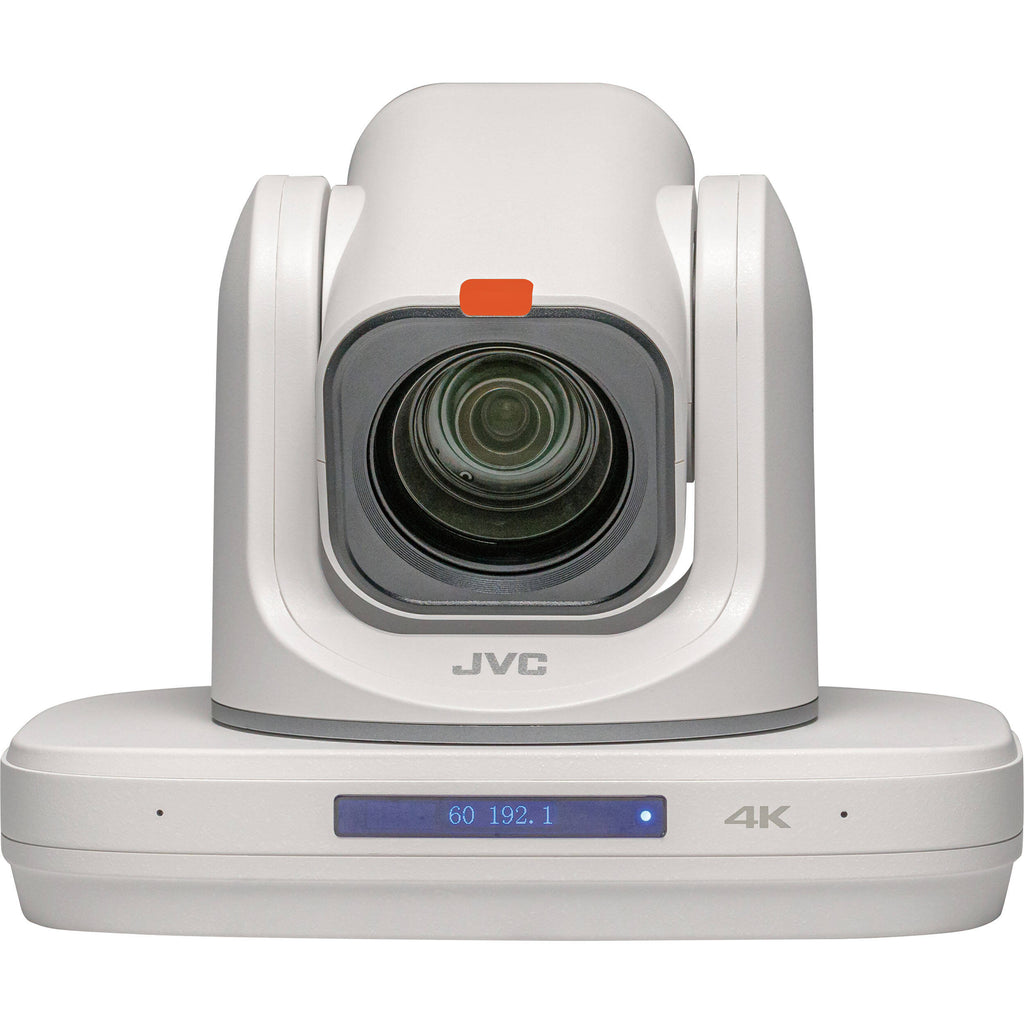

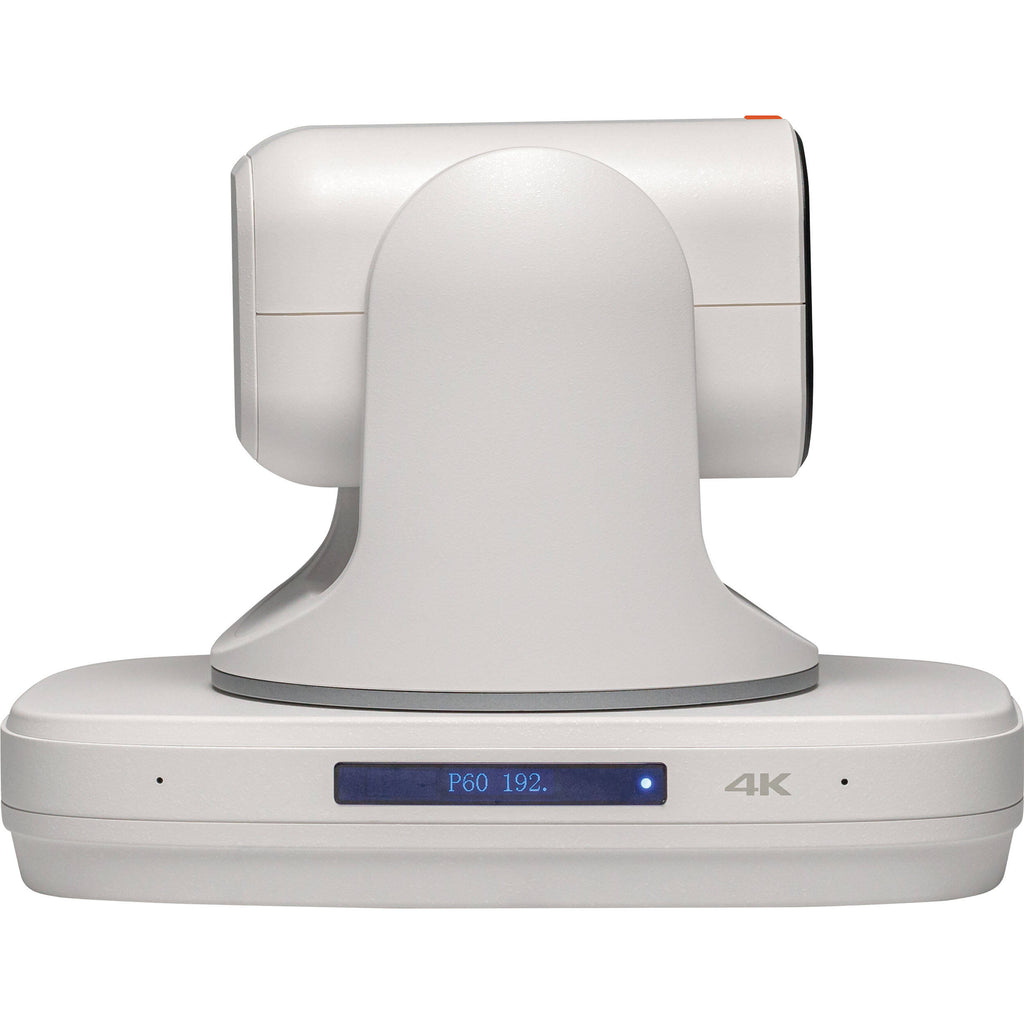

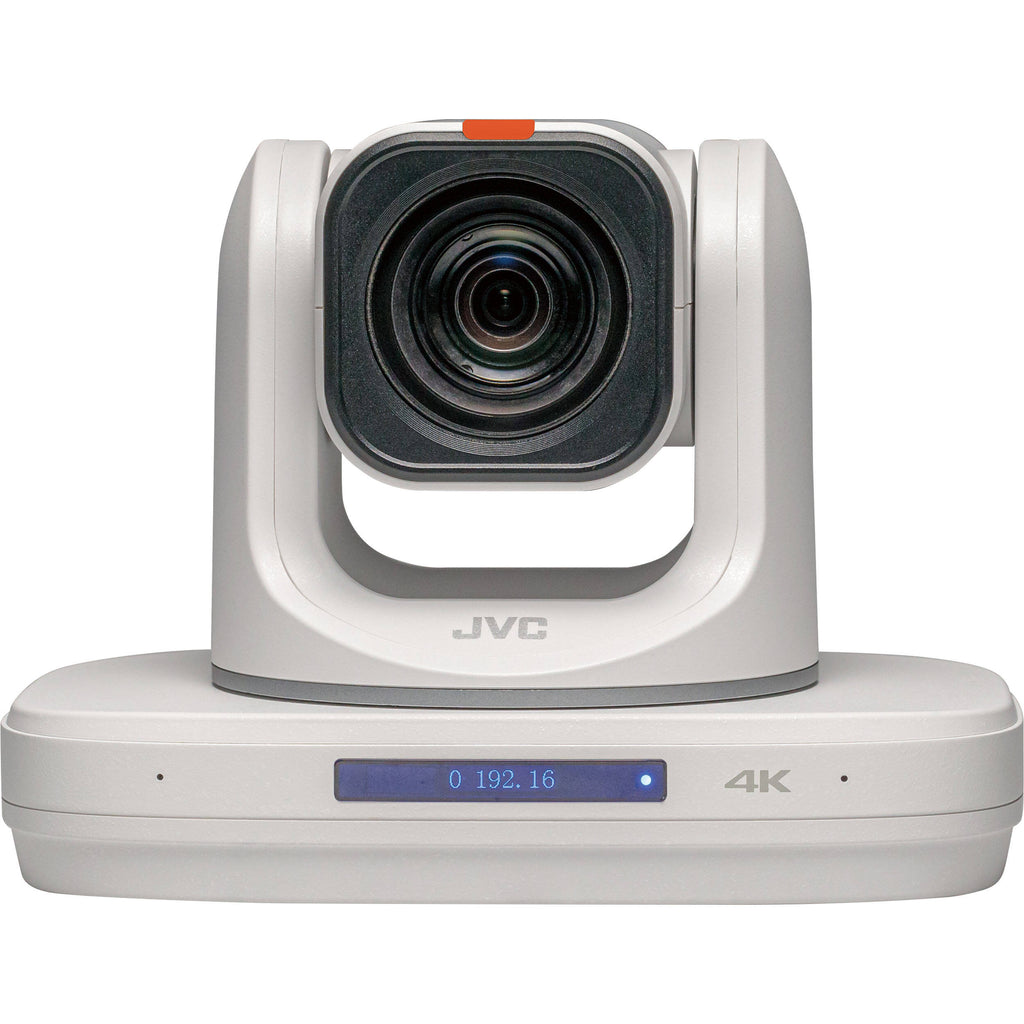

JVC KY-PZ510 Overview
Remotely control your camera in your house of worship, classroom, or web conference with this white KY-PZ510 4K PTZ Remote Camera with 12x Optical Zoom from JVC. This ultra wide angle PTZ features a 1/2.8" CMOS, 8.40 MP sensor to capture sharp and vibrant images in up to UHD 4K60 with an integrated 12x optical zoom. Multiple video outputs include HDMI, 3G-SDI, USB Type-C, and IP streaming. SMART Auto Tracking provides advanced subject movement and recognition tracking that allows you to follow a specific subject within the frame.
With support for H.264/H.265/MJPEG video compression, the camera transmits IP video streams using RTSP, RTMP, and SRT protocols. Move quickly between camera positions, with up to 255 presets, using IP RS-485, or RS-232 control with optional serial controllers, or utilize the included IR remote control. HEVC technology grants the camera multi-slice encoding options, which ensure higher quality video at lower bitrates for remote production.
A 3.5mm analog audio input allows you to bring in external audio from a mixer. When doing multi-camera productions, VITC (Vertical Interval Time Code) and NTP (Network Time Protocol) synchronization provide timecode and real-time clock sync options. The unit comes with a power adapter, or it can be powered using PoE (Power-over-Ethernet) on a supported network.
In the Box
- JVC KY-PZ510 4K PTZ Remote Camera with 12x Optical Zoom (White)
- Power Adapter
- IR Remote Control
- Wall Mount
JVC KY-PZ510 Specs
| Sensor Type | 1/2.8"-Type CMOS Sensor |
| Sensor Resolution | Effective: 8.4 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1/25 Second |
| Gain | 0 to 45 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| Focal Length | 3.4 to 41.7mm |
| Optical Zoom Ratio | 12x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 7.5 to 80° Vertical: 4.3 to 49.9° |
| Maximum Aperture | f/1.8 to 3.7 |
| External Recording Modes | HDMI 3840 x 2160 at 50/59.94 fps SDI/BNC 1920 x 1080p at 50/59.94 fps USB 3840 x 2160 at 29.97 fps |
| Embedded Audio | SDI: 2-Channel |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264, H.265, MJPEG, RTMP, RTMPS, RTSP, SRT, UDP 3840 x 2160 at 25p, 29.97p, 30p 1920 x 1080 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 1280 x 720 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 1024 x 576 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 720 x 480 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 720 x 408 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 640 x 480 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 640 x 360 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 480 x 320 at 25p, 29.97p, 30p, 50p, 59.94p, 60p 320 x 240 at 25p, 29.97p, 30p, 50p, 59.94p, 60p |
| Presets | 255 |
| Move Speed | Pan: 1.8 to 80.5°/sec Tilt: 1.5 to 49°/sec |
| Movement Range | Pan: 325° (-162.5 to 162.5°) Tilt: 120° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-422 RS-485 |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI 2.0 Output 1 x RJ45 Output 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1 x Block 2-Pin (RS-485) Input/Output 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output 1 x RJ45 (LAN, VISCA) Control Input |
| Built-In Speaker | No |
| PoE Support | PoE+ 802.3at |
| Power I/O | 1 x Barrel (12VDC) Input |
| Power Consumption | Device: 12 VDC 14.5 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 30 to 80% |
| Storage Humidity | 85% |
| Mounting | 1 x 1/4"-20 Female for Tripod 4 x M3 Female for Ceiling |
| OS Compatibility | Windows 10 macOS 12.4 *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| App Compatible | No *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Certifications | FCC Part 15 Class A *as per Manufacturer |
| Dimensions (W x H x D) | 11.6 x 9.5 x 9.3" / 29.5 x 24.1 x 23.6 cm |
| Weight | 7.9 lb / 3.6 kg |
| Package Weight | 8.075 lb |
| Box Dimensions (LxWxH) | 11.9 x 10 x 9.6" |
