Description
JVC VF-HP900 Overview
- 1Description
- 23D LUTs
- 3HDR Monitoring
- 4Camera Control
- 5Studio Configured Multicable

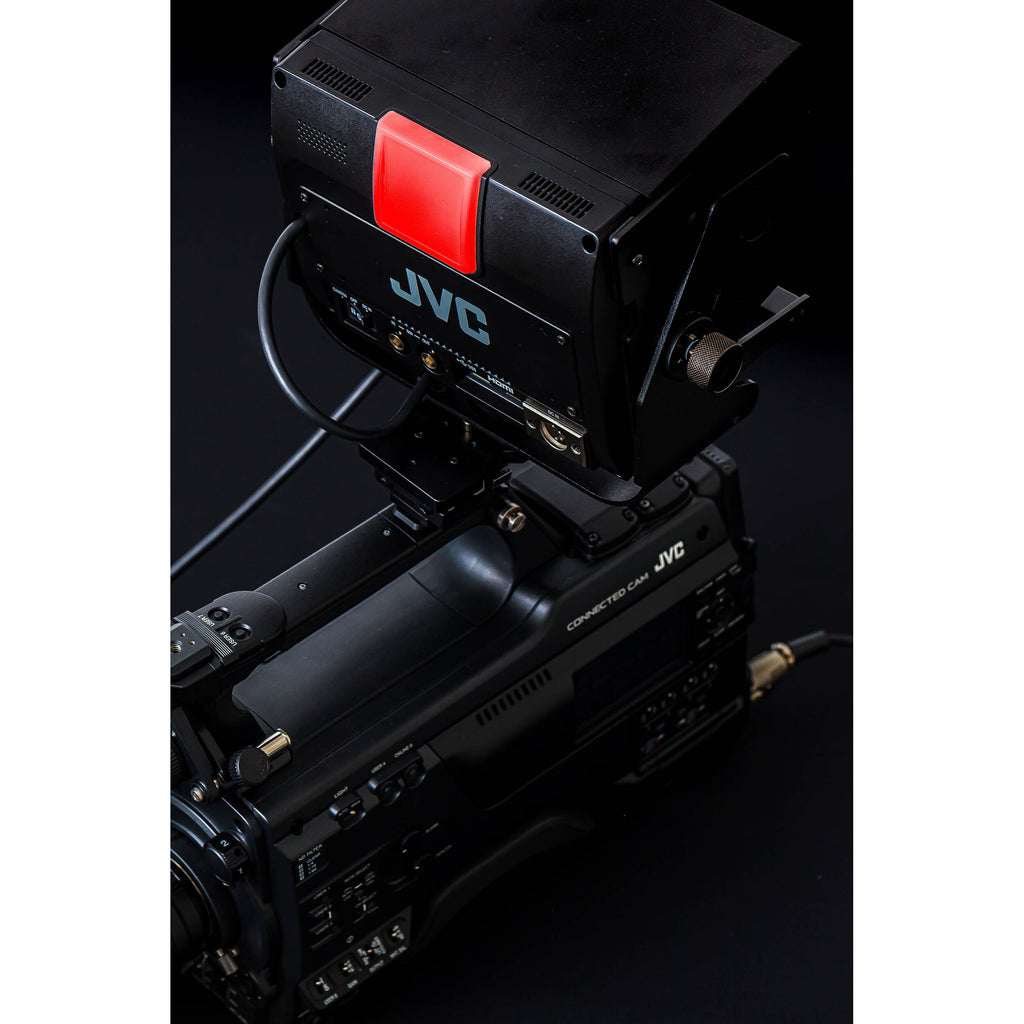

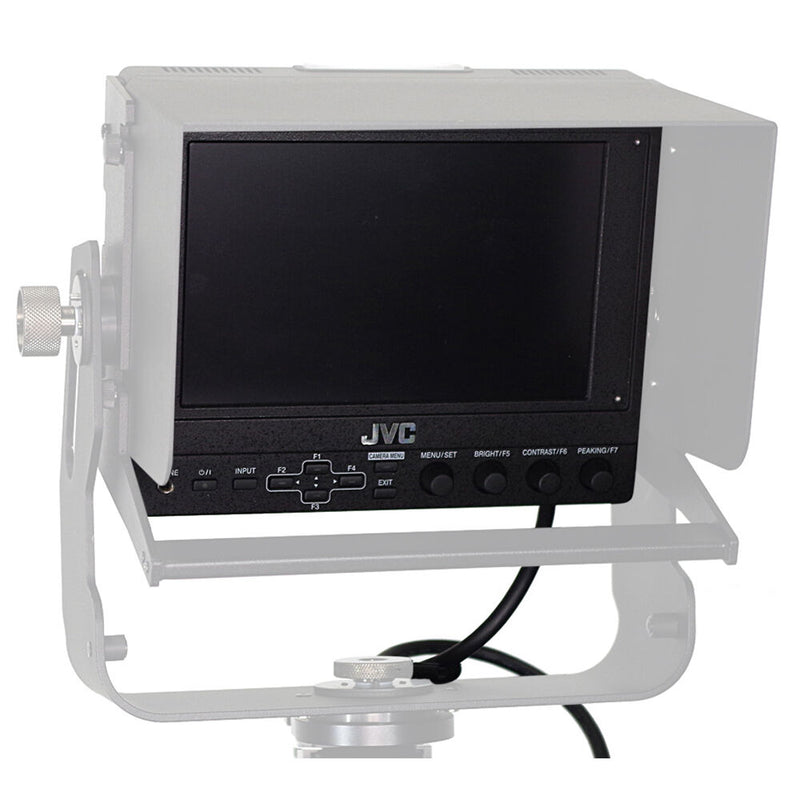

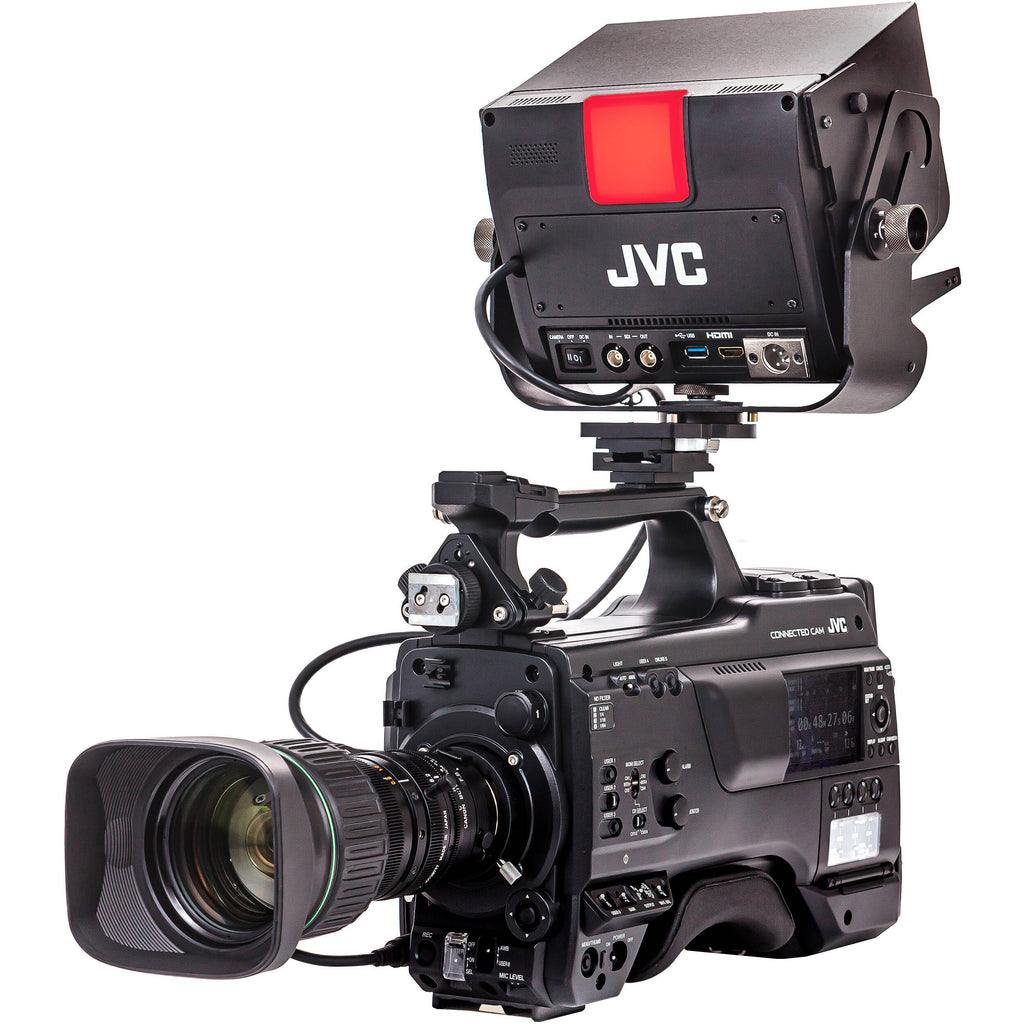

Monitor and control your GY-HC900 camera with the JVC 7" WUXGA Studio Viewfinder. This studio viewfinder connects to the GY-HC900 with a single multicable, carrying power, video, audio, and control signals simultaneously. When used with other cameras, the studio viewfinder utilizes a 4-pin XLR connector for power, multiple video inputs (3G-SDI, HDMI, DVI, and composite BNC), and a 3G-SDI video output. The VF-HP900 can store up to six 3D-LUTs and comes with J-LOG LUT preinstalled. At 7", this 1920 x 1200 studio viewfinder excels at providing fine details for precision focusing.
3D LUTs
The 7" WUXGA studio viewfinder can store up to six 3D-LUTs, including a preinstalled J-LOG LUT.
HDR Monitoring
The VF-HP900 can display ITU Rec.2100 in HLG and PQ for on-set HDR monitoring.
Camera Control
Use the buttons on the front panel of the VF-HP900 viewfinder to control your GY-HC900 camera's settings and menu.
Studio Configured Multicable
Draw power, monitor, and control GY-HC900 cameras using a single multicable.
UPC: 046838081491
In the Box
- JVC 7" WUXGA Studio Viewfinder for GY-HC900 Camcorder
- VF Cable
- 3 x Number Plate
- Protective Cover
- 4 x Protective Mounting Screw (M2)
- Shoe Mount
- Limited 1-Year Warranty
Table of Contents
- Description
- 3D LUTs
- HDR Monitoring
- Camera Control
- Studio Configured Multicable
JVC VF-HP900 Specs
Display
| Color/Monochrome | Color |
| Panel Type | LCD |
| Display Size | 7.0" / 17.8 cm |
| Screen Resolution | 1920 x 1200 |
| Horizontal Resolution (TV Lines) | 1200 TV Lines |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160° |
| Touchscreen | No |
| Maximum Brightness | 450 cd/m2 |
| Contrast Ratio | 1100:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) | 323 ppi |
I/O
| Video | 1 x BNC (3G-SDI) Input 1 x HDMI Type A Input 1 x DVI-I Input 1 x BNC (Composite) Input 1 x BNC (3G-SDI) Output |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Camera Connection | 26-Pin JVC |
| Power I/O | 1 x XLR 4-Pin (17 VDC) Input |
| Other I/O | 1 x USB 2.0 (USB Type-A) Input |
Optics
| Field of View | Horizontal: 160° |
Power
| DC Input Power | 10.5 to 17 VDC |
| Power Consumption | 15 W |
Environmental
| Operating Humidity | 30 to 80% (Recommended) |
| Operating Temperature | 32 to 104°F / 0 to 40°C (Recommended) |
General
| Mounting | 1 x Cold Shoe |
| Weight | 2.2 lb / 1 kg |
Packaging Info
| Package Weight | 3.54 lb |
| Box Dimensions (LxWxH) | 11.3 x 8 x 3.8" |
