Description

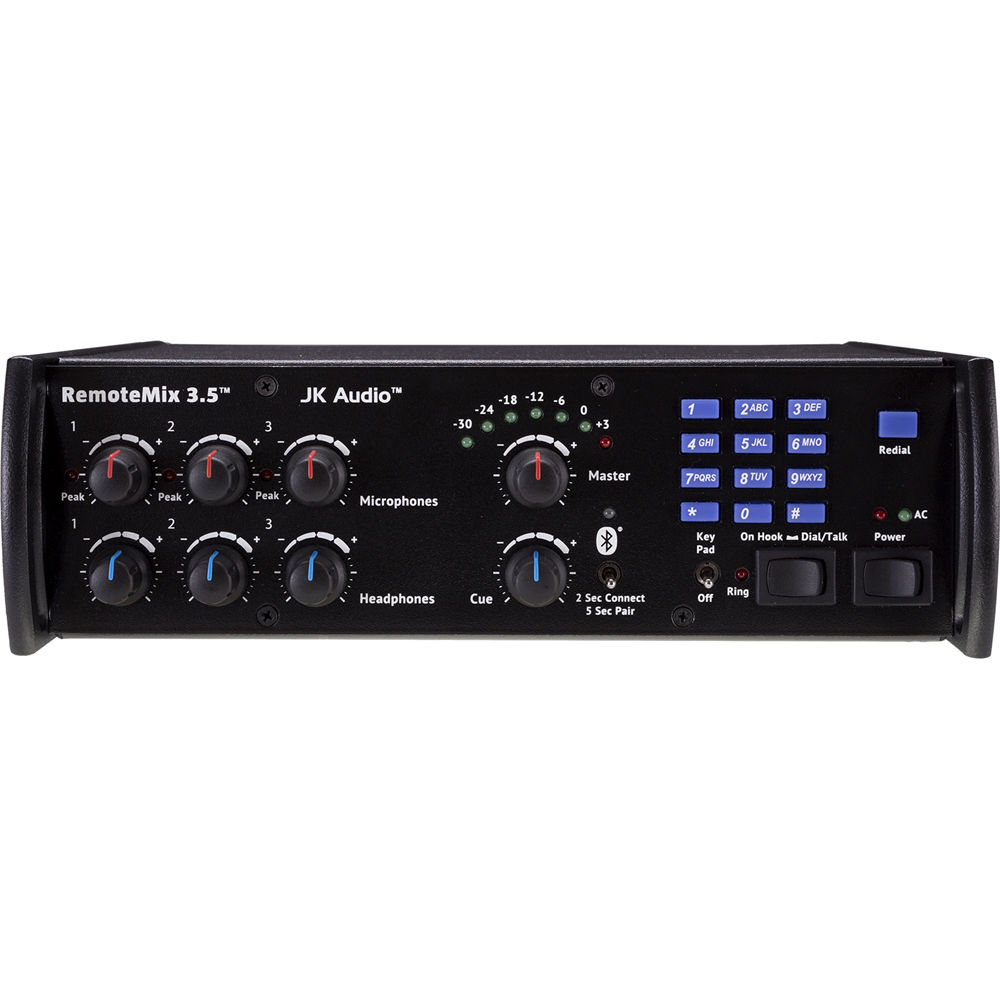

JK Audio RemoteMix 3.5 Overview
The RemoteMix 3.5 from JK Audio is a three-channel field mixer and headphone amplifier, as well as a universal communications interface. The unit features a phone line hybrid and keypad, a PBX handset interface, and both wired and wireless cell phone interfaces.
The mixer is perfect for sports remotes and can be used as a phone line hybrid, for calling in to a studio talk show hybrid. Or it can be used as a front-end mixer for the user's POTS, ISDN, IP or smartphone codec. Three 1/4" IFB (Interruptible Foldback ) headphone feeds are perfect for TV work - send and receive interview audio and pull IFB out of any business phone system, even a cell phone or notebook.
A soft limiter prevents overdriving the phone line interfaces, while the XLR output is pre-limiter and full range. Convenient 3.5 mm send and receive jacks are provided for recording a show, or mixing in an MP3 player. The Bluetooth interface will connect in hands-free mode, allowing a two-way 3.4 kHz telecom bandwidth connection. The Bluetooth interface can also connect in wireless headphone mode offering a 20 kHz audio bandwidth, listen-only connection.
- JK Audio RemoteMix 3.5 - Broadcast Field Mixer
- External Power Supply
- Detachable Power Cable
- 2.5 mm 3-Conductor Wireless Interface Cable
- 3.5 mm 4-Conductor Wireless Interface Cable
- 18" RJ22 Modular Handset Cord
- 60" RJ11 Phone Cord
- Limited 2-Year Manufacturer Warranty
-
Batteries & ChargersEssential
No additional resources available
JK Audio RemoteMix 3.5 Specs
| Inputs |
3 x XLR Microphone
1 x 1/8" (3.5 mm) TRS mini Stereo Line 1 x 1/4" TRS Headphone Cue |
| Input Impedance |
Microphone: 2k?
Line: 20k? Headphone Cue: 20k? |
| Nominal Input Level |
Microphone: -25 dBu (channel 3: Mic/Line pad switch = +6 dBu maximum)
Line: -10 dBm Headphone Cue: -10 dBu |
| Outputs |
1 x XLR (full 20 Hz to 20 kHz, +/-1.0 dB bandwidth)
1 x 1/8" (3.5 mm) Stereo Line 3 x 1/4" TRS Headphone |
| Output Impedance |
Stereo Line: 100?
Headphone: 8? |
| Output Level |
XLR: +16 dBu maximum
Stereo Line: -10 dBu nominal Headphone: 1/3 W per channel |
| Bluetooth |
Frequency Response
Headset: 300 Hz to 3400 Hz Headphone Mode: 30 Hz to 17 kHz |
| Phone Line |
Connector: RJ11C
PBX Interface: RJ22 Ringer: 0.5B REN Isolation: 1,500 VAC |
| Power Requirements |
100~240 VAC, 50/60Hz via included external power adapter or 2 x 9 VDC batteries
|
| Dimensions |
9.5 x 8 x 3" (241 x 203 x 76 mm)
|
| Weight |
3.8 lb (1.7 kg)
|
| Package Weight |
5.75 lb
|
| Box Dimensions (LxWxH) |
13.2 x 9.6 x 4.3"
|
