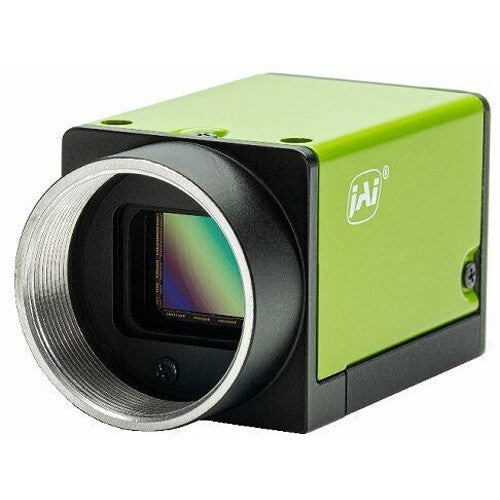

JAI Go-X 20MP Camera with Rolling Shutter (GigE Vision, Color)

Built for Non-Stop Operation

Go-X Series cameras are built to withstand the shock, vibration, and thermal demands of typical industrial environments so they can keep critical inspection systems running 24/7, 365 days a year.

Pre-Screened for Dust & Other Particles

Special dust prevention measures include clean room assembly, internal seals around the sensor compartment, and a pre-screening process to ensure every camera shipped delivers the best possible image quality via a clean, dust-free optical path.

Backside Illumination Technology

The Sony IMX183 STARVIS sensor has a back-side illuminated design that offers excellent light sensitivity with high quantum efficiency. With its rolling shutter technology and attractive price, this camera is ideal in vision systems looking at non-moving objects and where cost-efficiency is a key system design parameter.

At a Glance

• 20MP camera with 2.4 x 2.4-micron pixels and 1" optical format
• Sony IMX183 STARVIS CMOS image sensor with rolling shutter and back-side illumination technology for enhanced sensitivity
• GigE Vision interface supporting long cable lengths and network configurations
• Automatic Level Control (ALC) to maintain exposure in dynamic lighting conditions
• Can be powered over the interface (PoE) or from an optional external power supply via 6-pin Hirose connector
• Small and lightweight to mount easily on robotic arms, UAVs, and any other machine vision systems where motion or portability are vital
• Mounting holes to fit most existing installations with no re-tooling required
• Industrial grade performance with ratings of 80G shock, 10G vibration, and optimal thermal dissipation
• Includes new "Xscale" function supporting virtual, sub-pixel rescaling of output for greater binning flexibility or when matching the resolution and FOV of cameras in existing systems
• Includes color enhancement function and support for color conversion to sRGB, Adobe RGB, CIE XYZ, or custom RGB formats

JAI GOX-20409C-PGE-1 Specs

Type	Area Scan
Lens Mount	C-Mount
Interface	GigE Vision 1
Image Sensor	STARVIS IMX183
Sensor Resolution	5472 x 3648
Frame Rate	5 fps
Shutter Type	Rolling
Video Output	8-Bit

Power Source	PoE (Built-In), Plug-In Power (Not Included)
DC Input Power	10 to 57 VDC
Power Consumption	3.7 W

Mounting	Multiple M3 Threaded Holes
Color	Black / Green
Certifications	CE, EU, FCC, KC, RoHSChina, RoHS, WEEE
Operating Conditions	23 to 113°F / -5 to 45°C at 20 to 80% Humidity
Storage Conditions	-13 to 140°F / -25 to 60°C at 20 to 80% Humidity
Dimensions	2 x 1.1 x 1.1" / 51.5 x 29 x 29 mm
Weight	2.3 oz / 65 g
