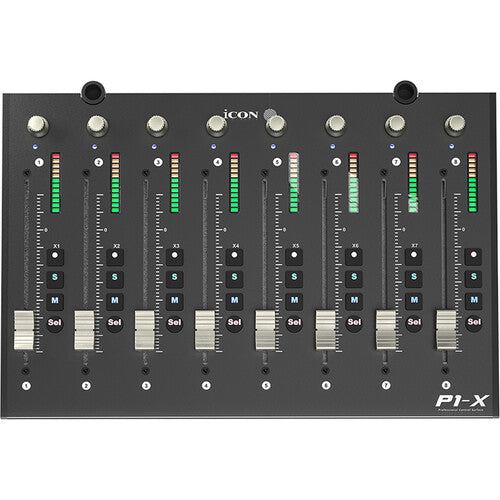

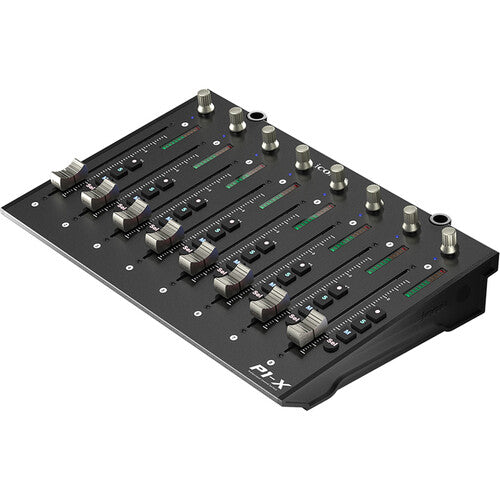

Icon Pro Audio P1-X DAW Control Expander for P1-M

Add additional tactile channel control to your P1-M DAW control surface with the P1-X DAW Control Expander from Icon. This 8-channel extender module provides an additional eight 100mm faders and eight encoder knobs, providing hands-on access to additional channels quickly and easily without having to change banks as often on the P1-M.

• Incorporate the P1-X DAW Control Expander to unlock unparalleled potential for your P1-M. Each P1-X module boasts eight touch-sensitive motorized channel faders with 12-bit resolution, complemented by eight dual-function encoder knobs, and essential mute, solo, select, and record buttons.
• With the optional D4 OLED display (available separately), you gain access to crucial channel information, including names, pan positions, and various control parameters for each channel. Craft a truly personalized control surface, tailored precisely to your preferences and requirements.
• As with the P1-M, the P1-X features the super-stable Cortex-M7 at 500 MHz ARM chip, which will ensure the machines will offer you reliability and durability along with ground breaking functionality for many years to come.
• The unit connects to your Mac/Windows computer via USB-C; a USB-C cable and power adapter are included.
• Please remember that the expandability of the P1-X relies on your Digital Audio Workstation�s capabilities. Refer to your DAW�s manual to determine the number of extenders supported. Elevate your audio prowess with the P1-X DAW Control Expander, and unleash an entirely new level of control in your music production journey.

• Functions as an extender for the iCON Pro Audio P1-M MIDI DAW controller
• 8 touch-sensitive motorized faders with 12-bit resolution
• Extremely hard wearing, durable, and versatile
• Optional D4 OLED display (available separately) shows channel name, control values, and channel colors. (DAW dependent)
• Attractive, modern LED meters featuring precise, clear, and eye-catching level indicators
• 8 smooth-action dual-function encoder knobs (Rotate and Enter)
• Illuminated buttons for channel control including Mute, Solo, and Record

• Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software
• Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Luna, Reaper, Reason, Samplitude, Studio One, and Tracktion Waveform
• iMap software downloadable from product page on website
• USB-C high-speed connectivity
• Firmware upgrade available via USB C connection and iMap software
• Superior build quality and robust metal casing with Kensington lock port
• Superb reliability with Cortex-M7 at 500 MHz ARM chip



Icon Pro Audio P1-XSpecs

Compatibility

Icon P1-M

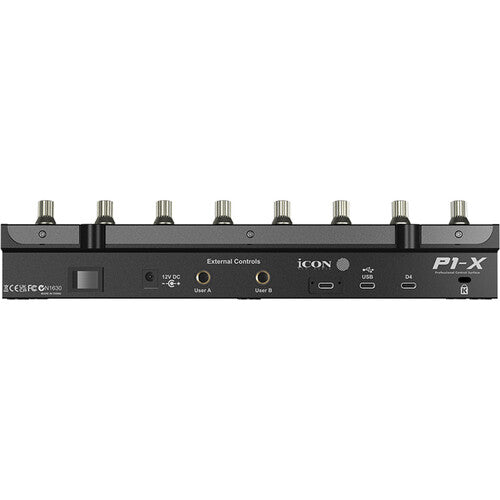

USB I/O	1 x USB-C Female Input/Output
Video I/O	1x USB-C Output
Connections	2 x 1/4" / 6.3mm Footswitch Connectors

Mobile App Compatible

No

Power Source	AC Adapter with Power Brick (Included)
DC Input Power	12 VDC at 2.5 A
Operating Current	2 A (Maximum)

Color	Black
Cable Length	Not Specified by Manufacturer
Dimensions	11.8 x 8 x 2.4" / 300 x 204 x 61 mm
Weight	3.33 lb / 1.51 kg

Package Weight	4.895 lb
Box Dimensions (LxWxH)	17.5 x 10.2 x 4.5"
