Description
Hikvision EKI-K82T86A Overview

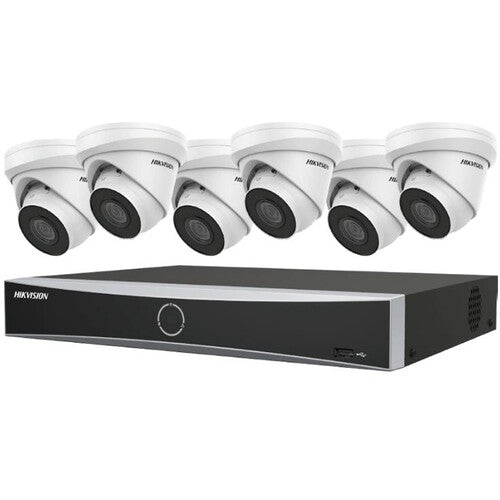

Monitor your property with the EKI-K82T86A 8-Channel 12MP NVR with 2TB HDD & Six 8MP Turret Cameras Kit from Hikvision. This NVR enables you to record from and manage up to 8 cameras. It is equipped with a SATA port that supports an HDD capacity up to 10TB (2TB preinstalled). H.265+, H.265, H.264+, and H.264 video codecs keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.
The included IP67-rated turret cameras capture 8MP resolution video at 15 fps from a 2.8mm fixed lens that delivers a 108° horizontal field of view. EXIR 2.0 technology provides up to 98' of night vision, while a built-in microphone enables audio pick up.
NVR Features
Recording resolution up to 12MP
1 x VGA and 1 x HDMI
HDD storage expandable to 10TB
8-channel synchronous playback
Motion Detection 2.0 for accurate human and vehicle analysis (8 channels)
Face detection and analytics include face picture comparison, human face capture, and face picture search
Up to 16 face picture libraries, along with up to 20,000 face pictures in total
1-channel human face capture
4-channel face picture comparison alarm
Turret Camera Features
EXIR 2.0 technology for visibility in low-light conditions
IR cut filter for day and night functionality
Image settings include: rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance
Region of interest supports one fixed region for main stream
Analytics include: motion detection, video tampering alarm, and exception
General functions include: anti-flicker, heartbeat, mirror, password protection, and password reset via email
Up to 6 channels in simultaneous live view
Up to 32 users with 3 host levels (admin, operator, and user)
Additional features include: privacy mask for 4 regions, 120 dB wide dynamic range, ?52 dB S/N ratio, backlight compensation, highlight compensation, 3D-DNR, environment noise filtering, and reset key
Compatible with Internet Explorer, Firefox, and Chrome
UPC: 842571152418
Items Included
- Hikvision EKI-K82T86A 8-Channel 12MP NVR with 2TB HDD & Six 8MP Turret Cameras Kit
- 6 x Hikvision ECI-T28F2 8MP Outdoor Network Turret Camera with Night Vision
- DS-7608NXI-K1/8P NVR with 2TB HDD
- Limited 36-Month Manufacturer Warranty
Additional Resources
No additional resources available
Hikvision EKI-K82T86A Specs
NVR
| IP Video Input |
8
|
| Bandwidth |
Incoming: 80 Mb/s
Outgoing: 80 Mb/s |
| HDMI Output Resolution |
3840 x 2160 (30 Hz)
2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 1024, 1280 x 720, 1024 x 768 (60 Hz) |
| VGA Output Resolution |
1920 x 1080, 1280 x 1024, 1280 x 720 (60 Hz)
|
| Video Output Mode |
HDMI/VGA Independent Output
|
| Audio Output |
1-Channel, RCA (Linear, 1 Kilohm)
|
| Two-Way Audio |
1-Channel, RCA (2 V p-p, 1 Kilohm via Audio Input)
|
| Decoding Formats |
H.265+, H.265, H.264+, H.264
|
| Recording Resolution |
12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
|
| Synchronous Playback |
8 Channels
|
| Decoding Capability |
AI On: 1-Channel at 12 MP, 1-Channel at 8 MP, 3-Channel at 4 MP, 6-Channel at 1080p (30 fps)
AI Off: 1-Channel at 12 MP, 2-Channel at 8 MP, 4-Channel at 4 MP, 8-Channel at 1080p (30 fps) |
| Stream Type |
Video, Video, Audio
|
| Remote Connection |
128
|
| Network Protocols |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
|
| Network Interface |
1 x RJ45 1000M Self-Adaptive Ethernet Port
|
| PoE Interface |
8 x RJ45 100M Self-Adaptive Ethernet Ports
|
| PoE Power |
?75 W
|
| PoE Standard |
IEEE 802.3af/at
|
| SATA |
1 x SATA Interface
|
| HDD Capacity |
10 TB
|
| HDD Included |
2 TB
|
| USB |
2 x USB 2.0
|
| Alarm |
Optional: 4/1
|
| Power Supply |
48 VDC, 1.875 A
|
| Power Consumption |
?10 W (Without HDD & PoE Off)
|
| Operating Temperature |
14 to 131°F / -10 to 55°C
|
| Operating Humidity |
10 to 90%
|
| Certifications |
FCC, CE
|
| Dimensions |
12.6 x 9.4 x 1.9" / 320 x 240 x 48 mm
|
| Weight |
2.2 lb / ?1 kg (Without HDD)
|
Camera
| Image Sensor |
1/2.8" Progressive Scan CMOS
|
| Maximum Resolution |
3840 x 2160
|
| Minimum Illumination |
Color: 0.01 Lux (f/2.0 with AGC)
B&W: 0 Lux with IR |
| Shutter Speed |
1/100,000 to 1/3 Seconds
|
| Day/Night |
IR Cut Filter
|
| 3-Axis Adjustment |
Horizontal: 0 to 360°
Vertical: 0 to 75° Rotation: 0 to 360° |
| Lens |
2.8mm
|
| Field of View |
Horizontal: 108°
Vertical: 60° Diagonal: 127° |
| Lens Mount |
M12
|
| Aperture |
f/2.0
|
| DORI Distance |
Detect: 266' / 81 m
Observe: 105' / 32 m Recognize: 52.5' / 16 m Identify: 26.2' / 8 m |
| IR Range |
98' / 30 m
|
| IR Wavelength |
850 nm
|
| Video Compression |
Main Stream: H.265+, H.265, H.264+, H.264
Sub-Stream: H.265, H.264, MJPEG |
| H.264 Profile |
Main, Baseline, High
|
| H.265 Profile |
Main
|
| Video Bit Rate |
32 Kb/s to 16 Mb/s
|
| Frame Rate |
Main Stream: 15 fps at 3840 x 2160, 20 fps at 2592 x 1944, 30 fps at 2688 x 1520, 1920 x 1080, 1280 x 720
Sub-Stream: 30 fps at 1280 x 720, 640 x 480, 640 x 360 |
| Bit Rate Control |
CBR, VBR
|
| Region of Interest |
One Fixed Region for Main Stream
|
| Audio |
Mono
|
| Environment Noise Filtering |
Yes
|
| Audio Sampling Rate |
8 / 16 kHz
|
| Audio Compression |
G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC
|
| Audio Bit Rate |
64 kb/s G.711ulaw/G.711alaw, 16 kb/s G.722.1/G.726, 32 to 160 kb/s MP2L2, 16 to 64 kb/s AAC
|
| Security |
Password Protection, Complicated Password, HTTPS Encryption, 802.1X Authentication (EAP-MD5), Watermark, IP Address Filter, Basic, and Digest Authentication for HTTP/HTTPS, WSSE and Digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, Security Audit Log, Host Authentication (MAC Address)
|
| Simultaneous Live View |
Up to 6 Channels
|
| API |
ONVIF Profiles G and S, ISAPI, SDK
|
| Network Protocols |
TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP
|
| User/Host Level |
Up to 32 Users at 3 Host Levels (Admin, Operator, User)
|
| Client |
iVMS-4200, Hik-Connect
|
| Supported Web Browsers |
Internet Explorer 10 & 11 (Plug-In Required), Chrome 57 or higher, Firefox 52 or Higher
|
| Wide Dynamic Range |
120 dB
|
| SNR |
?52 dB
|
| Day and Night |
Day, Night, Auto, Schedule
|
| Image Enhancement |
BLC, HLC, 3D-DNR
|
| Image Settings |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
|
| Privacy Masking |
4 Regions
|
| Communication Interface |
1 x RJ45 100M Self-Adaptive Ethernet Port
|
| Storage |
Supports microSD/SDHC/SDXC Cards up to 256 GB
|
| Built-In Microphone |
Yes
|
| Reset |
Reset Key
|
| Basic Event |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
