Description

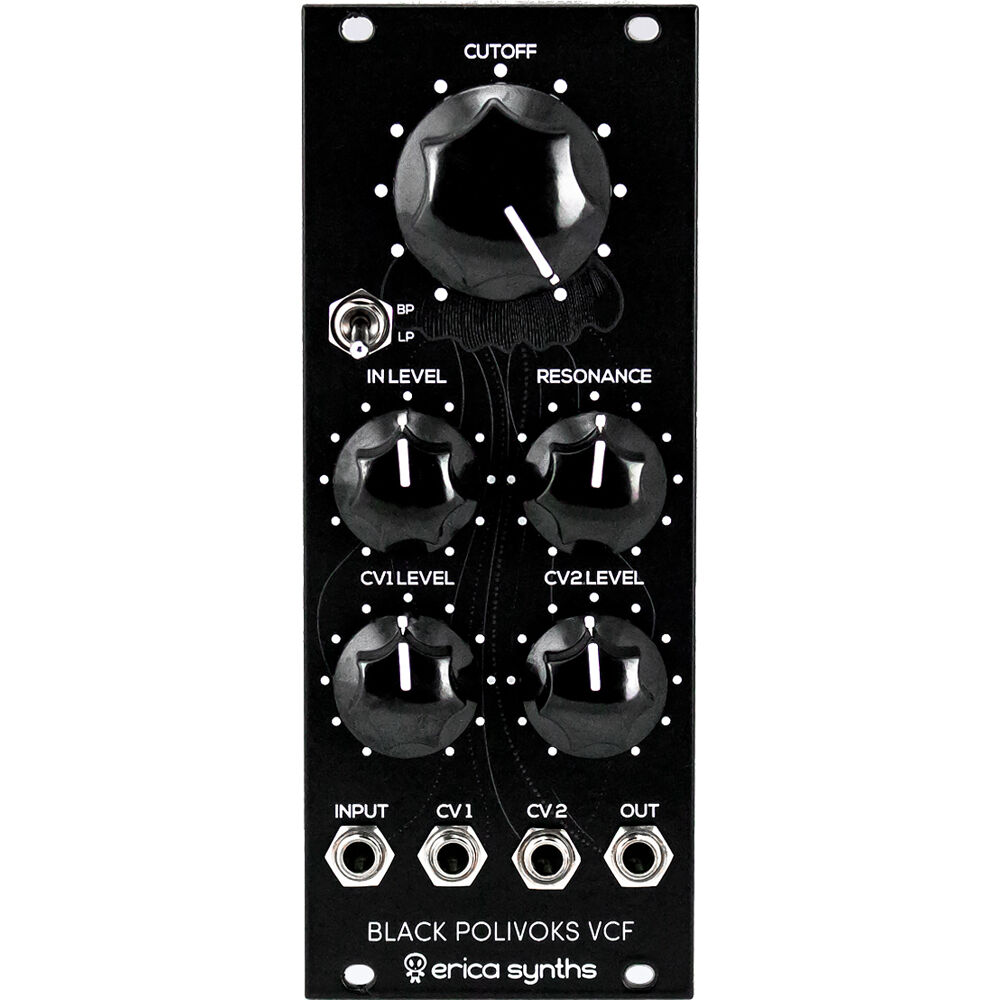

Erica Synths Polivoks VCF V2 Overview
Modular synthesizer enthusiasts looking for an authentic emulation of the famous Russian Polivoks synthesizer will be impressed with the erica synths Black Polivoks VCF V2, a Eurorack compatible module that's based off of the original Formanta Radio Factory Polivoks (BP/LP) filter.
The module uses the original Russian ICs with a modified design, which makes it more compatible with contemporary modular synthesizers. The modifications include independent buffered inputs, an extended cutoff knob, silent filter mode switching (BP/LP), and an output stage to eliminate signal inversion. The result is a much punchier bass sound and very smooth controls. The module includes a ribbon power cable and mounting screws.
- Authentic emulation of famous Russian synth, the Formanta Radio Factory Polivoks
- Uses original Russian ICs K140UD12
- Independently buffered inputs
- Extended cutoff knob
- Silent switching between BP and LP modes
- Output stage added to prevent signal inversion
- Power Consumption: 11mA at +12V; 11mA at -12V
- Module Depth: 1" / 25mm
Items Included
- Erica Synths Black Polivoks VCF V2 Eurorack Module (10 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not Included
- Essential Eurorack Cases
Additional Resources
Erica Synths Polivoks VCF V2 Specs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Input (Eurorack Compatible)
1x 1/8" / 3.5 mm TS Unbalanced Mono Output (Eurorack Compatible) |
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
No
|
| Eurorack Current Consumption |
11 mA on +12 V Rail
11 mA on -12 V Rail |
| Horizontal Pitch |
10 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
Number of Filters: 1
Characteristic: Analog Type: Low-Pass, Band-Pass Slope: 1-Pole/6 dB (BPF) / 2-Pole/12 dB (LPF) Controls: Cutoff, Resonance |
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Input (Eurorack Compatible)
1x 1/8" / 3.5 mm TS Unbalanced Mono Output (Eurorack Compatible) |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Input
|
| Control Voltage Level |
±10 V
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
| Maximum Input Level |
20 V p-p
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
11 mA on +12 V Rail
11 mA on -12 V Rail |
| Color |
Black
|
| Horizontal Pitch |
10 HP
|
| Included Accessories |
No
|
| Package Weight |
0.39 lb
|
| Box Dimensions (LxWxH) |
7.8 x 4.2 x 2.5"
|
