Description
Digigram ALP222e Overview

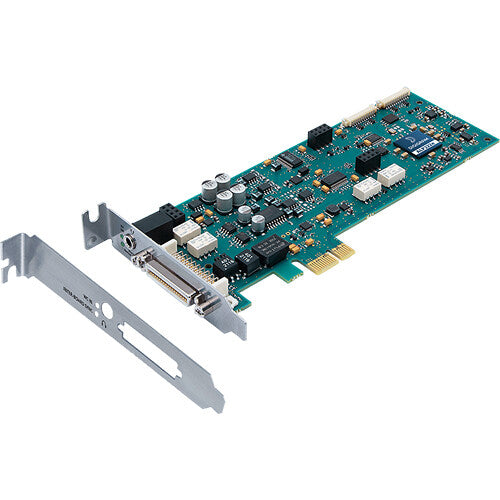

The Digigram ALP222e is a low-profile PCIe stereo sound card engineered for continuous 24/7/365 operation in professional PC-based audio systems. Designed for reliability in mission-critical environments, it supports both Windows and Linux platforms and delivers analog and digital audio connectivity with renowned Digigram sound quality. Its compact form factor fits easily into workstations, servers, or industrial PCs, making it suitable for broadcast, production, transportation, public safety, and utility applications.
Built for Continuous Professional Operation
The ALP222e combines stable low-latency drivers with multicard and multiclient support, allowing up to eight ALP-series cards to operate in the same system. An onboard 8x8 channel mixer provides zero-latency routing and mixing between physical and software inputs and outputs, giving integrators and system designers flexible signal management. With analog and AES3 digital I/O, inter-board synchronization, and a headphone output, the card adapts to a wide range of installation and custom-integration scenarios.
Flexible Integration and Control
Designed for both standard and custom applications, the ALP222e includes a connector for a breakout cable or custom wiring, plus support for Digigram's control API. It offers stereo AES3 digital I/O alongside balanced analog channels, synchronization options including AES11, wordclock, and GPIO connections for external control. A low-profile design with two brackets ensures compatibility with a wide range of chassis types.
UPC: 641094214746
- Digigram ALP222e Low-Profile PCIe Stereo Sound Card
- Breakout Cable
- Limited 2-Year Manufacturer Warranty
No additional resources available
Digigram ALP222e Specs
Key Specs
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
2x XLR 3-Pin Line Input
2x XLR 3-Pin Line Output 1x 1/8" / 3.5 mm TRS Headphone Output |
| Digital Audio I/O |
XLR 3-Pin AES3 Input
XLR 3-Pin AES3 Output |
| Host Connection |
PCIe
|
| Power Requirements |
PCIe
|
General
| Display |
No
|
| Built-In DSP |
No
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
No
|
| Built-In Microphone |
No
|
| Input Level Adjustment |
via Software
|
Signal Processing
| Pad |
No
|
| Gain/Trim Range |
Line:
-88 dB to +39 dB (in 0.5 dB Steps) |
| High-Pass Filter |
No
|
| Solo/Mute |
No
|
Connectivity
| Analog Audio I/O |
2x XLR 3-Pin Line Input
2x XLR 3-Pin Line Output 1x 1/8" / 3.5 mm TRS Headphone Output |
| Phantom Power |
No
|
| Digital Audio I/O |
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output |
| Host Connection / USB |
PCIe
|
| Host Connection Protocol |
PCIe
|
| USB (Non-Host) |
No
|
| Sync I/O |
1x XLR 3-Pin AES11 Input
1x BNC Word Clock Input 1x BNC Word Clock Output |
| Network I/O |
No
|
| MIDI I/O |
No
|
| Expansion Slots |
No
|
| Wireless |
No
|
Performance
| Frequency Response |
20 Hz to 20 kHz
|
| Maximum Input Level |
+24 dBu
|
| Maximum Output Level |
+24 dBu
|
| Headphone Output Power |
20 mW into 600 Ohms
|
| Impedance |
Line Inputs:
> 10 Kilohms Line Outputs: < 100 Ohms Headphone Outputs: 600 Ohms |
| SNR |
Line Inputs:
> 110 dBA Line Outputs: > 115 dBA |
| THD+N |
Line Inputs:
< -96 dB (at 18 dBu, 1 kHz) Line Outputs: < -101 dB (at 18 dBu, 1 kHz) |
Digital Audio
| Sample Rates |
Up to 192 kHz
|
| Sample Rate Conversion |
On All Inputs
|
| Bit Depths |
8 / 16 / 24 / 32-Bit
|
| Sync Sources |
AES11, AES3, Internal, Word Clock
|
Audio Storage & Playback
| Media/Memory Card Slot |
No
|
Compatibility
| OS Compatibility |
Windows 10 or Later / Linux
|
| Mobile Device Compatibility |
No
|
| Required Hardware |
PCIe Card Slot
|
Power
| Power Requirements |
PCIe
|
Physical
| Dimensions |
6.6 x 2.7 x 0.8" / 168 x 69 x 20 mm
|
Packaging Info
| Package Weight |
1.745 lb
|
| Box Dimensions (LxWxH) |
12.6 x 5.6 x 3.9"
|
