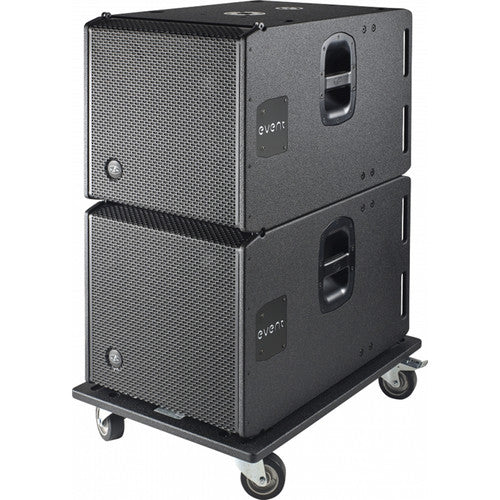

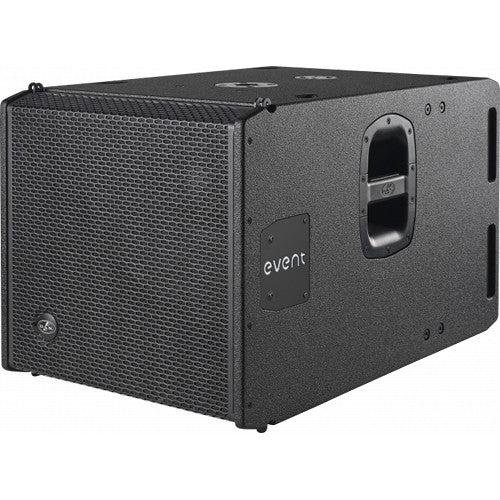

D.A.S Audio Event-115A Powered 15" Bass Reflex Subwoofer System

For Live Sound and Mobile Applications

15" Woofer

Frequency Response: 40 to 125 Hz

Class-D Amplifier: 1200W Peak

The D.A.S. Event-115A is a powered, 15" bass-reflex subwoofer system designed to provide extended bass response to the Event-26A full-range line array cabinets and is well suited for rental houses, bars, clubs, mobile DJs, or any pro audio application. The Event-115A utilizes a 1200W Class-D amplifier to power the 15" woofer to provide a frequency response of 40 to 125 Hz with a peak SPL output of 131 dB.

The birch plywood enclosure is finished with black ISO-flex paint and includes handles (one per side) for ease in transport. The rear panel offers two combo XLR-1/4" inputs, two XLR loop-thru outputs, a level control, and an integrated DAScontrol DSP with presets, EQ, limiting, filter, and alignment delay. The top panel offers a pole-mount socket for use with 35mm speaker poles for mounting full-range speakers as well as matching rigging points that are compatible with the Event-26A. Additionally, the D.A.S. Event-115A features a PowerCon input and pass-thru to daisy-chain power to multiple subwoofers and ships with a power cable.

Active front-loaded subwoofer 1 x 15" DAS 15FW4 loudspeaker High-efficiency Class-D amplifier with SMPS Dual-voltage mains for use anywhere in the world Easy system configuration thanks to DAScontrol High-end 24-bit DSP with LCD screen Compatible with Event-26A rigging hardware

Configuration	Active Subwoofer
Enclosure Type	Bass-Reflex Subwoofer
Total Power Capacity	1200 W Peak 600 W RMS
Amplifier Class	Class-D

MF Driver	None
LF Driver	1 x 15" / 381 mm Woofer

Frequency Range	40 Hz to 125 Hz -10 dB
Maximum SPL	131 dB
Input Sensitivity	Line Input: +18 dBu
I/O Impedance	Line Input: 20 Kilohms

Audio I/O	2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Input 2 x XLR 3-Pin Male Balanced Thru/Output
Network I/O	None
USB	None
Wireless Connectivity	None

EQ	None
Parametric EQ	Yes
Semi-Parametric EQ	Yes
Alignment Delay	Yes
Phase Adjustment	Yes

AC Input Power	90 to 250 VAC, 50 / 60 Hz
AC Power Connector	1 x powerCON Input 1 x powerCON Output
Current Consumption	120 VAC: 3.6 A 230 VAC: 1.8 A

Mounting	Integrated Rigging 1.4" / 35 mm Pole Socket (Top)
Handles	1 x Each Side
Construction Material	Plywood
Dimensions	19.1 x 18.9 x 18.9" / 485.1 x 480.1 x 480.1 mm
Weight	81 lb / 36.7 kg
