Countryman E2 Overview
- 1 Description
- 2 Nearly Invisible
- 3 Pure Sound
- 4 Sub-Miniature Connector
- 5 Sensitivity

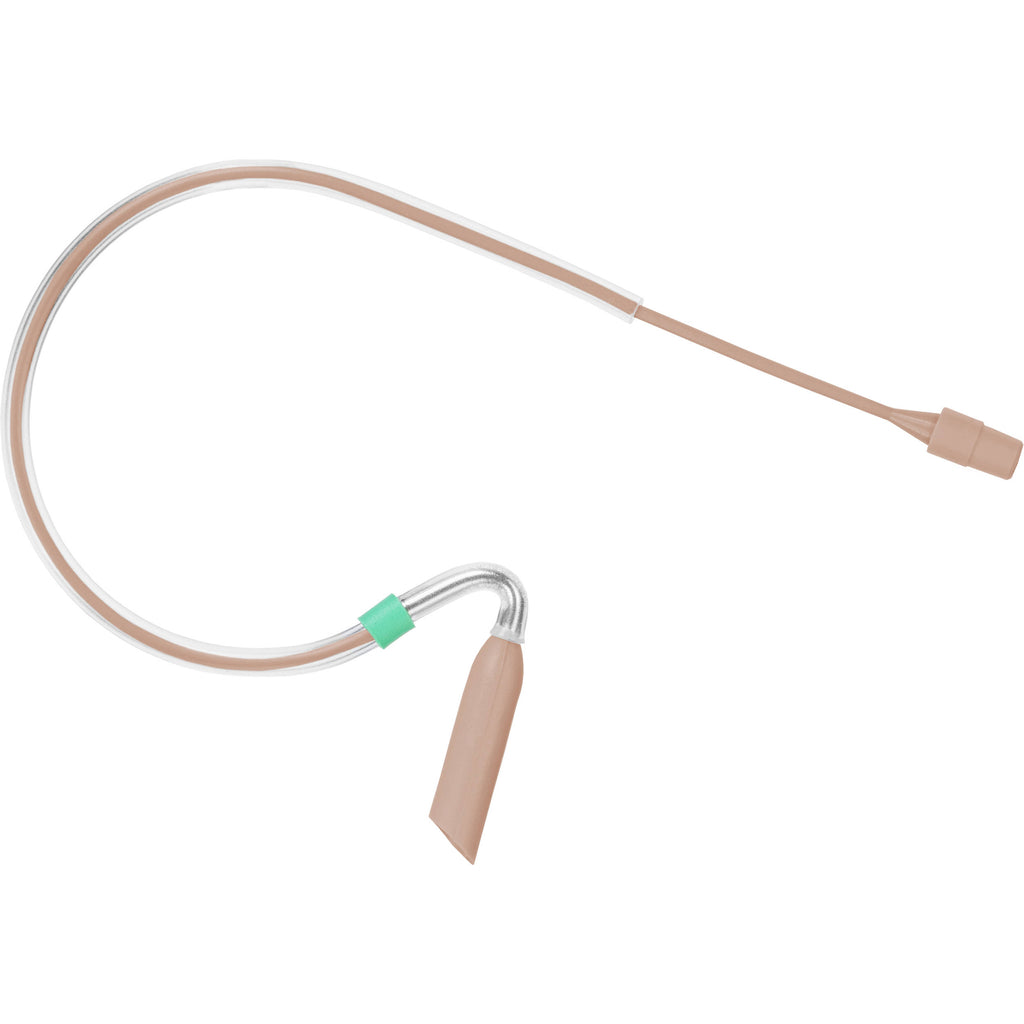

The tan E2 Unidirectional Earset Microphone with Detachable Cable and 3.5mm Connector from Countryman is an over-the-ear earset, similar to a classic E6 earset, but with a shorter boom designed to work with Senal wireless microphone systems. It provides suitable isolation at the mouth, but with less visibility than an E6 omni earset, and can be used to capture audio for strong vocals applications.
With an equalizing circuit built into the audio connector, the frequency response is tuned so you can experience full-bodied bass and precise highs that are warm and natural. The element, boom, and sub-miniature connector are all easily hidden on the user's face. The boom position near the ear helps to eliminate breath pops and vocal plosives on the mic. The detachable cable terminates to a 3.5mm connector for direct connection to a Senal Series bodypack transmitter (sold separately).
Nearly Invisible
The E2 Earset redefines pure sound in a virtually invisible package. It offers better ease of use than a lavalier or podium microphone.
Pure Sound
There are two aspects of the E2 design that make it possible to capture sound so far away from the mouth: strong off-axis rejection and precisely tuned frequency response. For on-axis interference, the frequency response tuning in the connector of the E2 allows you to fully capitalize on the proximity boosting effect of the mic to achieve even stronger isolation in the voice band.
Sub-Miniature Connector
Like the connector for the industry-standard E6, the connector for the E2 is built tougher and more water resistant than previous models.
Sensitivity
Lower gain, for powerful vocals requiring the highest overload.
In the Box
- Countryman E2 Unidirectional Earset Microphone with Detachable Cable and 3.5mm Connector (W6 Band, Tan)
- Detachable Cable
- Black Cable Clip
- White Cable Clip
- Windscreen
- Protective Cap
- Carrying Case
- Limited 1-Year Warranty
Table of Contents
- Description
- Nearly Invisible
- Pure Sound
- Sub-Miniature Connector
- Sensitivity
Countryman E2 Specs
Microphone
| Form Factor | Headworn |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | Condenser |
| Polar Pattern | Hypercardioid |
| Windscreen | Foam (Included) |
Performance
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 140 dB SPL RMS |
| Sensitivity | 1.0 mV/Pa |
| Equivalent Noise Level | 39 dB A-Weighted |
Connectivity
| Output Connectors | 1 x 1/8" / 3.5 mm 3-Pin |
| Cable Length | 0 to 5' / 0.00 to 1.52 m |
Power
| Operating Voltage | 1 to 2 V (Phantom Power) |
| Operating Current Consumption | 500 µA |
Physical
| Color | Tan |
| Mounting | Over-Ear (Single) |
| Weight | 0.07 oz / 2 g |
