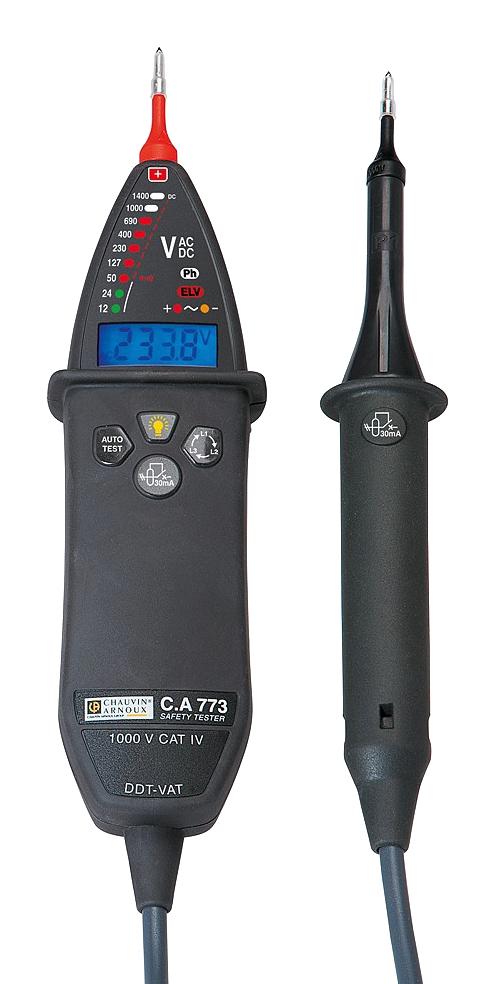

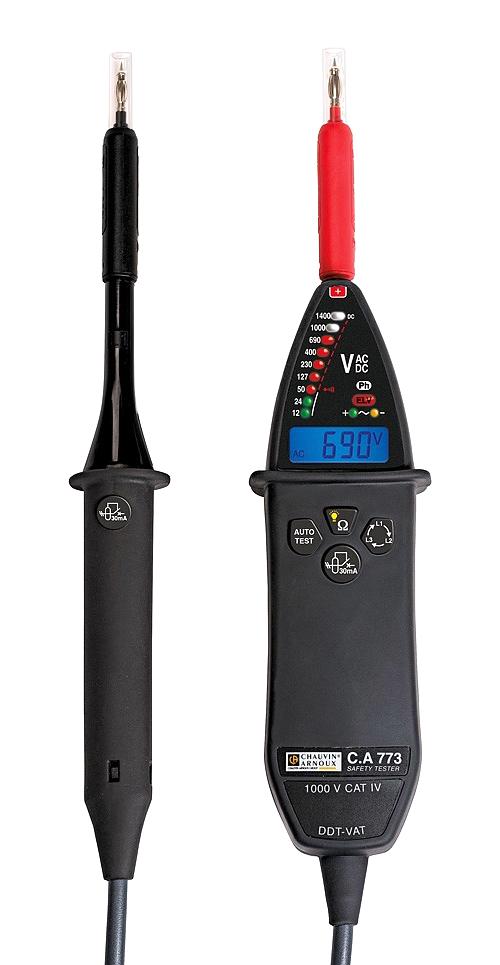

CHAUVIN ARNOUX P01191773 Voltage Tester, CA 773, 12V to 1kV, LED, -15 °C, 45 °C CA 773

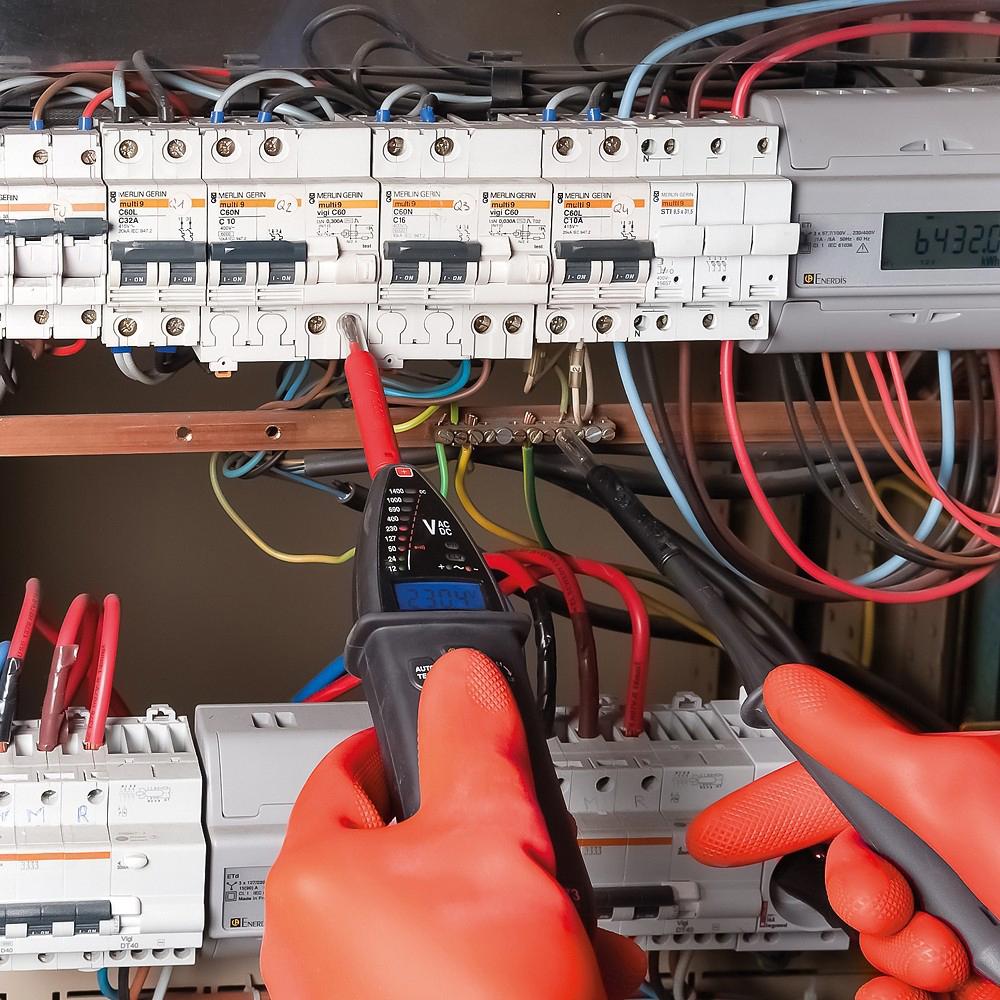

P01191773 is a C.A 773 voltage absence tester. It is an essential tool for electricians to check that no voltage is present before working on any electrical installation connected to the network. Compliant with IEC 61243-3, it can be used to work on any 1,000 V CAT IV, indoors or outdoors.

• Voltage detection, LED display + backlit digital display: 12VAC ? U ? 1000VAC � 12VDC ? U ? 1,400VDC
• Frequency: DC, 162/3 to 800Hz
• Stray voltage detection
• Unipolar phase detection (a single contact)
• Two-pole phase-sequence testing with 2-wire method = a third hand is not required
• Continuity test with audible and visual indication (R <lt/> 100 ohm)
• Extended continuity test with visual indication for R <lt/> 0.5ohm to 2.999Kohm
• RCD trip test
• Complies with EN 61243-3 & IEC 61010 1000 V CAT IV, Removable lead and test probe
• Climatic conditions: -15°C to +45°C (class N), battery life <gt/> 2,500 x 10s measurements

Contents

C.A 773 voltage absence tester, 1 x operating manual in 5 languages, 2 x 1.5V LR06/AA batteries, 1 x set of removable test probes Ø 2mm with crystal safety cover, 1 x probe-tip protection, 1 x strap.

Notes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
