Description

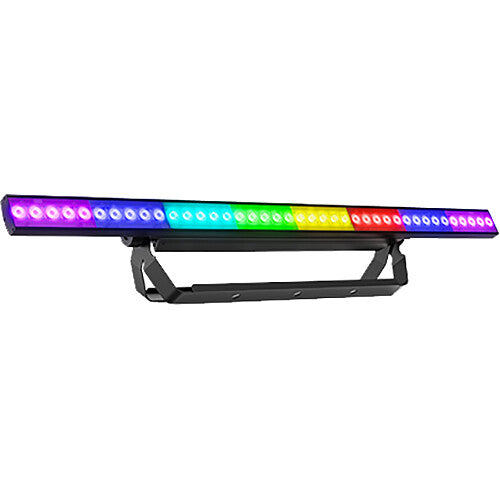

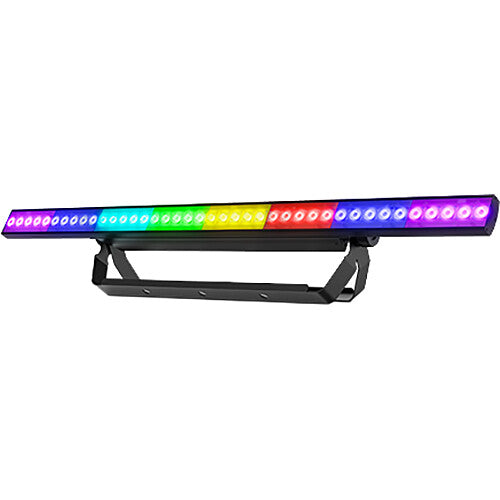

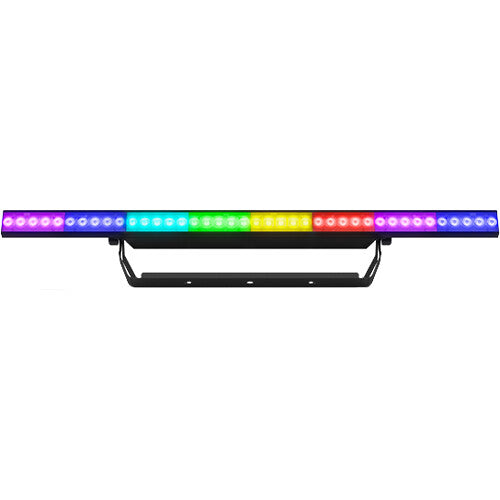

CHAUVET DJ COLORstrip Pix ILS Overview

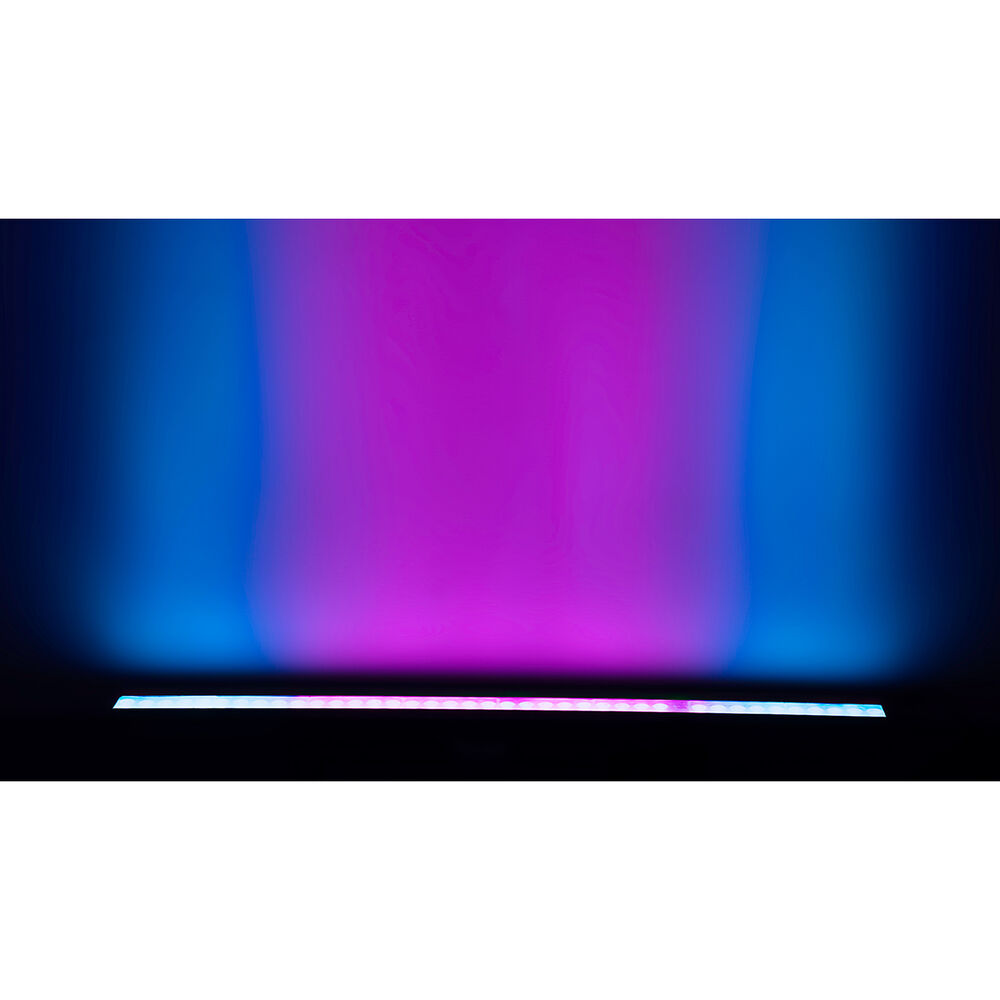

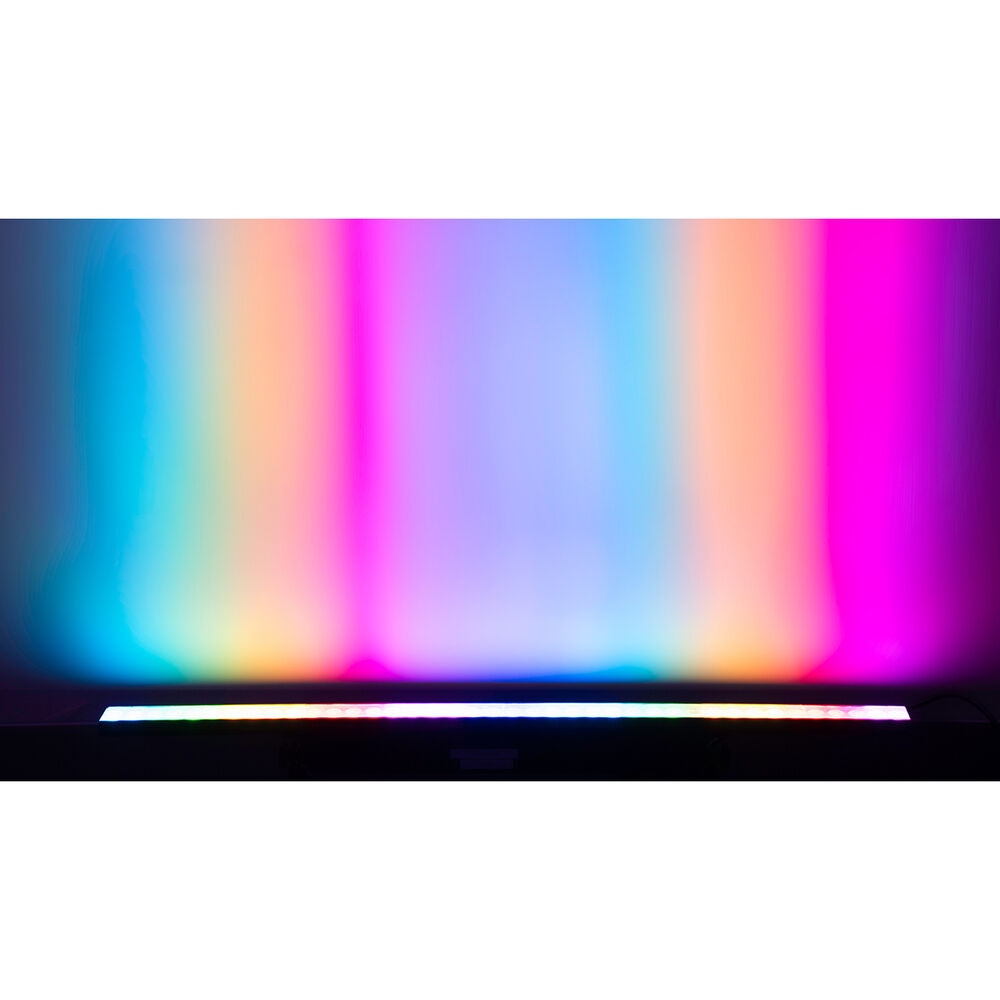

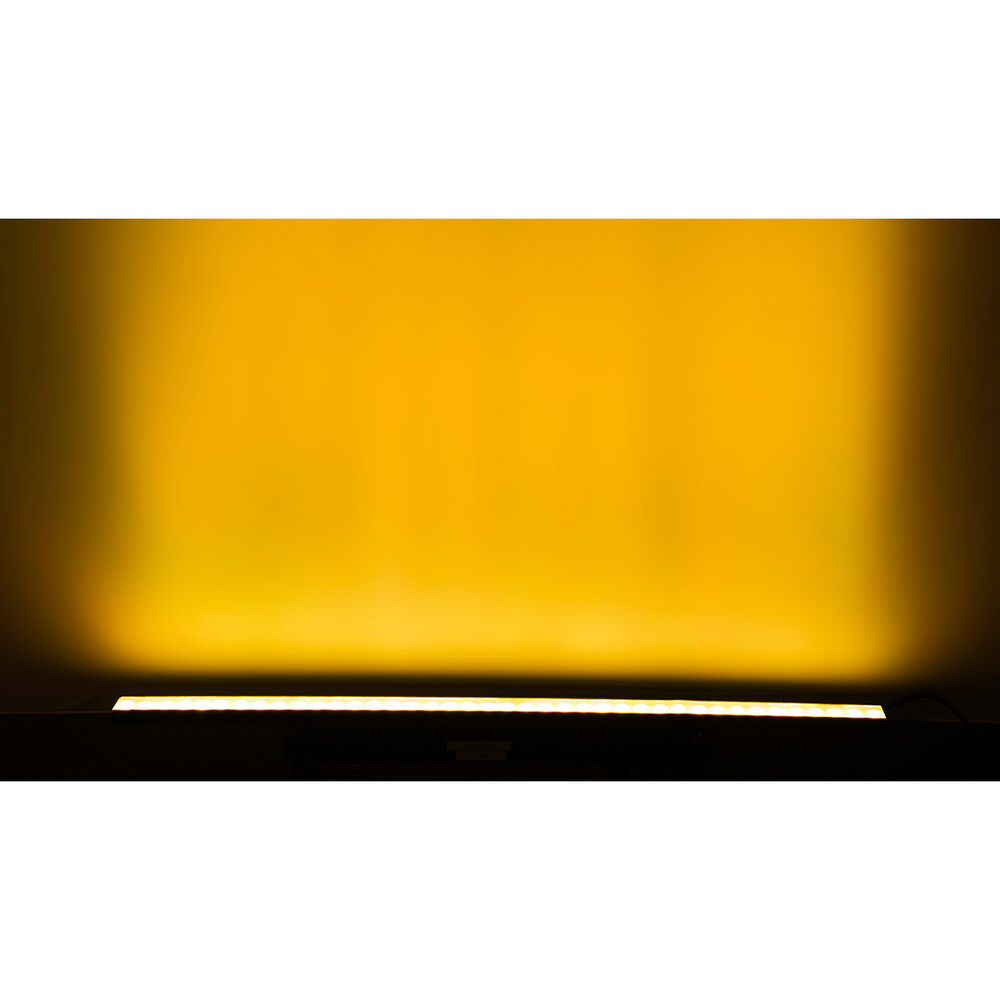

Create coordinated lighting effects that stand out with the Chauvet DJ COLORstrip PIX ILS, a full-sized linear LED strip light that's well suited for pixel-mapping, uplight, or eye-candy effects for live-entertainment applications such as DJing concerts, night clubs, and other venues. The fixture features 40 RGB (2W / 0.8A) LEDs that produce a powerful wash light source with a beam angle of 14? and a field angle of 24?. Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types.
Control the fixture with DMX, the optional IRC-6 remote control or the optional D-Fi USB for wireless DMX. Utilize the primary/secondary mode to connect multiple fixtures for large coordinated light shows with preprogrammed color mixing and color-chase effects. Multiple units can be daisy-chained together to save on power cabling. The COLORstrip Pix ILS includes an integrated hanging bracket, which doubles as a floor stand. The fixture comes with a power cord.
- Full-size LED strip light can work for pixel-mapping, uplight, or great eye-candy effects
- ILS compatibility for use in the ILS ecosystem
- Creates dazzling effects by linking multiple units together to make runway chases
- D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi USB sold separately)
- Creates amazing animations and video effects with individual LED control
- Ideal for quiet applications due to silent operation and no moving parts
- Wireless, non-DMX operation is available with the optional IRC-6 remote
- Easily transports in the optional CHS-60 VIP gear bag
Items Included
- CHAUVET DJ COLORstrip Pix ILS RGB LED Linear Wash Light
- Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
CHAUVET DJ COLORstrip Pix ILS Specs
| Fixture Type |
Linear/Bar Light
|
| Light Source |
40x Color LED - 2 W / 0.8 A
|
| Colors |
Blue, Green, Red
|
| Pixel Configuration |
40x Zone
|
| Beam Angle |
14?
|
| Control Protocols |
DMX512, ILS
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 79 W / 1.2 A
230 VAC, 50 Hz: 77 W / 0.8 A |
| Mounting |
Dual/Scissor Yoke
|
| Fixture Type |
Linear/Bar Light
|
| Light Source |
40x Color LED - 2 W / 0.8 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Red
|
| Pixel Configuration |
40x Zone
|
| Photometrics |
461 fc / 4967 Lux at 78.7" / 2 m
|
| Lumen Output |
1491 Lumens
|
| Beam Angle |
14?
|
| Field Angle |
24?
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic
|
| Operating Modes |
Automatic, DMX, Primary/Secondary, Sound-Active, Static Color
|
| Strobe Rate |
0 to 25 Hz
|
| Gobos |
No
|
| Control Protocols |
DMX512, ILS
|
| DMX Channel Modes |
4 Mode(s):
3 / 8 / 120 / 122-Channel |
| Remote Control |
IR Remote (with Optional Equipment)
D-Fi USB (with Optional Equipment) |
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output 1 x USB-A Remote Input |
| Wireless |
Proprietary Wireless / IR
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x IEC
Output: 1x Edison |
| Fuse |
T 2 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 79 W / 1.2 A
230 VAC, 50 Hz: 77 W / 0.8 A |
| Power Linking |
7 Units at 120 VAC
10 Units at 230 VAC Total Current: 8 A |
| Environmental Resistance |
No
|
| Mounting |
Dual/Scissor Yoke
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Max Housing Temperature |
104?F / 40?C
|
| Cooling |
Convection
|
| Certifications |
CE, RoHS
|
| Dimensions |
38.9 x 6.2 x 2" / 98.8 x 15.7 x 5.1 cm
|
| Weight |
6.2 lb / 2.8 kg
|
| Package Weight |
8 lb
|
| Box Dimensions (LxWxH) |
41.5 x 8.5 x 3"
|
