Description
CHAUVET DJ 4BAR Flex Q ILS Overview
- 1Description
- 2Versatile Configuration
- 3Wireless Control
- 4Rich Colors and Programming

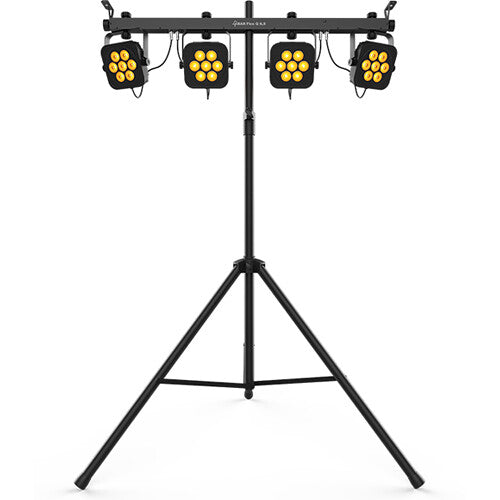

The 4Bar Flex Q ILS LED RGBA All-in-One Wash Lighting System from CHAUVET DJ combines four adjustable RGBA LED par lights into a single lighting system. The fixture features flexible mounting possibilities and wireless control options including CHAUVET DJ's Integrated Lighting System (ILS). Easily incorporated into almost any light show, the 4Bar Flex Q ILS is a powerful tool for venue owners, DJs, and other entertainers.
Versatile Configuration
A variety of mounting options enables the 4Bar Flex Q ILS system to be easily integrated into any light show setup. The pass-through hole bypasses the need for additional rigging hardware and is compatible with most tripods and speaker stands. Setup possibilities are maximized by two integrated L-brackets. Four additional fixtures can be rigged to the top of the bar.
Wireless Control
Multiple connectivity options allow the fixture to flexibly link to the rest of your coordinated light shows. The built-in Integrated Lighting System (ILS) provides seamless interaction between other fixtures in the ILS ecosystem, while wireless master/slave or DMX control is enabled through D-Fi USB compatibility. The included IRC-6 remote and wireless footswitch allow for IR connection, and a 4-button control panel on the rear of the fixture offers direct control input.
Rich Colors and Programming
Quad-color LED technology allows for precise color rendering in any situation. The RGBA produces vibrant color mixing across a wide spectrum while also delivering accurate natural-looking color temperatures. Choose from static colors, automated programs, or sound-activated light shows.
UPC: 781462223519
In the Box

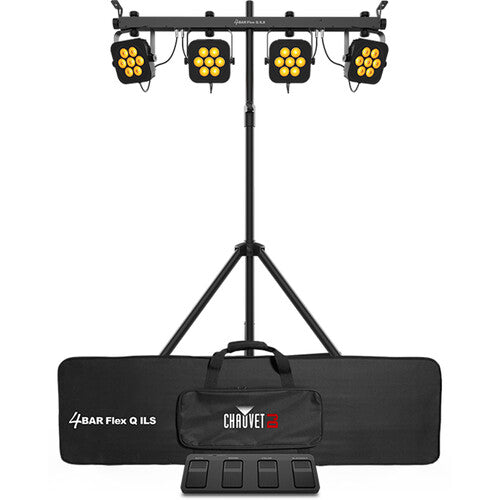

- CHAUVET DJ 4Bar Flex Q ILS All-in-One RGBA LED Wash Lighting System
- Power Cord
- Carrying Bag
- Wireless Footswitch Controller
- CHAUVET DJ IRC-6 Infrared Remote Control 6
- Limited 2-Year Manufacturer Warranty
Guides & Manuals
Table of Contents
- Description
- Versatile Configuration
- Wireless Control
- Rich Colors and Programming
CHAUVET DJ 4BAR Flex Q ILS Specs
Key Specs
| Fixture Type |
PAR
|
| Number of Included Heads/Lights |
4
|
| Light Source |
PAR:
28x Color LED - 3.5 W / 1.3 A |
| Colors |
PAR:
Amber, Blue, Green, Red |
| Beam Angle |
14°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 80 W / 1.2 A
230 VAC, 50 Hz: 78 W / 0.6 A |
| Mounting |
Mounting Bracket, Tripod Stand & Top Bar
|
Light
| Fixture Type |
PAR
|
| Number of Included Heads/Lights |
4
|
| Light Source |
PAR:
28x Color LED - 3.5 W / 1.3 A |
| Expected Lamp Life |
50,000 Hours
|
| Colors |
PAR:
Amber, Blue, Green, Red |
| Photometrics |
219 fc / 2353 Lux at 6.6' / 2 m (per Fixture)
|
| Beam Angle |
14°
|
| Field Angle |
23°
|
| Shutter / Strobe |
Electronic
|
Performance
| Operating Modes |
Automatic, DMX, Program, Sound-Active, Static Color
|
| Macros / Programs |
12x Auto-Program
1x Sound-Active |
| Effects |
Strobe (Variable Speed)
|
| Strobe Rate |
0 to 20 Hz
|
| Gobos |
No
|
Control
| Control Protocols |
DMX512
|
| DMX Channel Modes |
3 Mode(s):
4 / 6 / 19-Channel |
| Display / Controls |
LCD / 4-Button
|
| Remote Control |
IR Remote (with Included Equipment)
Footswitch (with Included Equipment) D-Fi USB (with Optional Equipment) |
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output |
| Wireless |
IR
*Built-In |
| Wireless Range |
Footswitch:
100' / 30.5 m |
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x IEC
Output: 2x IEC |
| Fuse |
F 2.5 A
|
| Power / Current Consumption |
120 VAC, 60 Hz: 80 W / 1.2 A
230 VAC, 50 Hz: 78 W / 0.6 A |
| Power Linking |
6 Units at 120 VAC
13 Units at 230 VAC |
Physical
| Mounting |
Mounting Bracket, Tripod Stand & Top Bar
|
| Included Accessories |
1x Power Cable
1x Case (Light/s) 2x Controller |
| Exterior Color |
Black
|
| Max Housing Temperature |
104°F / 40°C
|
| Cooling |
Convection
|
| Certifications |
CE, RoHS, UKCA
|
| Dimensions |
45.7 x 12.8 x 4.7" / 116.1 x 32.5 x 11.9 cm (with Bracket)
43.3 x 11.6 x 2" / 110 x 29.5 x 5.1 cm (without Bracket) |
| Weight |
12.2 lb / 5.5 kg (System)
|
Packaging Info
| Package Weight |
21 lb
|
| Box Dimensions (LxWxH) |
51.5 x 14.75 x 6"
|
