Description
Product Overview

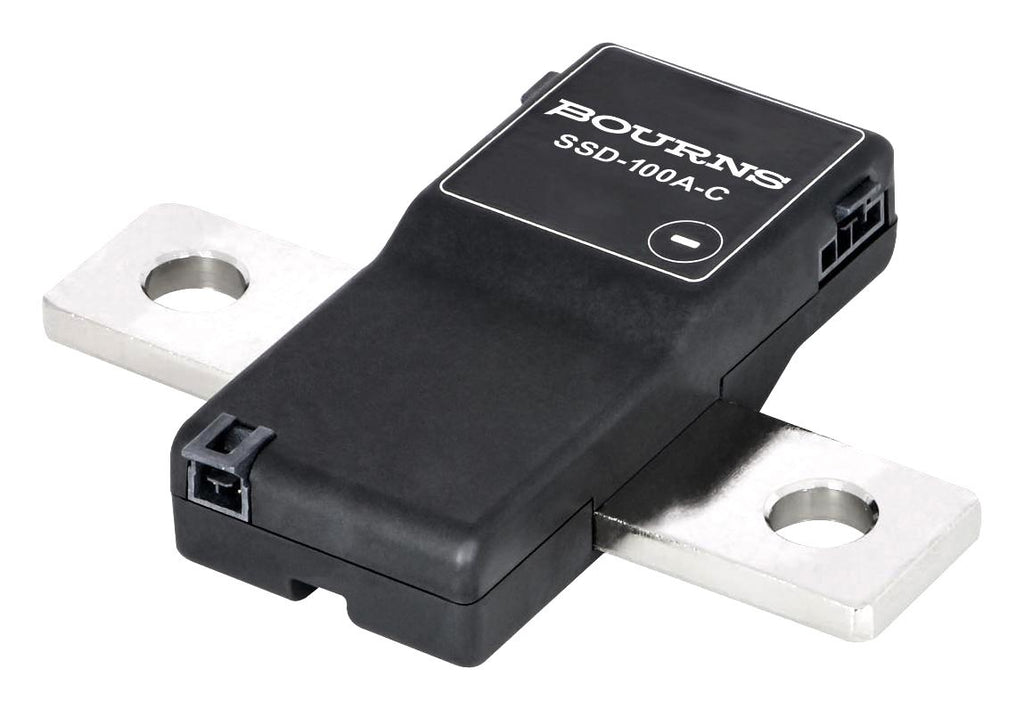

SSD-100A-C is a SSD series shunt sensor. Applications include battery systems, renewable energy, motor drives, EV charging stations.
- ±100A nominal current, +2kA/-1kA peak current, advanced non-linear temperature compensation
- 300µohm shunt resistance, <±0.1% initial accuracy
- 5KHz bandwidth, 24bit isolated shunt current sensor with CANbus interface
- Supply voltage range from 5 to 60VDC, internal and external CRC data error detection
- ±1200VDC maximum DC bus voltage measurement
- 1500VDC 1000VAC RMS galvanic isolation
- 3500VAC RMS 1 minute dielectric strength
- 0.1% tolerance, 24bit ADC with buffered analogue inputs
- ECC flash memory with autocorrect single bit errors
- Operating ambient temperature range from -40°C to +115°C
Product details
Other details
| Brand | BOURNS |
| Part Number | SSD-100A-C |
| Quantity | Each |
| Technical Data Sheet EN |  |
