Description
Blonder Tongue RMDA 86A Overview

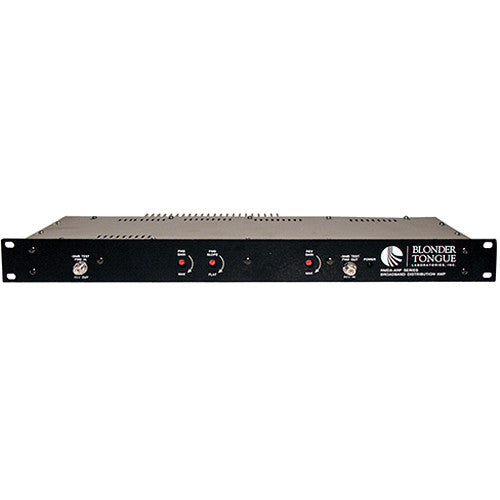

The RMDA 86A-30 Two-Way RF Distribution Amplifier from Blonder Tongue is a two-way broadband distribution amplifier that utilizes push-pull hybrid technology with two forward and one return channel hybrids. It is designed to serve as a distribution amplifier in MATV, SMATV, or CATV applications, or to use as a headend launch amplifier. It features 32 dB of gain forward and 22 dB active gain on the return. It boasts a forward frequency range of 54 to 860 MHz and a return range of 5 to 40 MHz. The return path is field configurable for either active or passive operation.
The RMDA 86A-30 has built-in variable gain controls on both the forward and return paths. A forward path variable slope control is provided inter-stage as is the variable gain control. Additionally, a fixed forward equalizer and forward and reverse attenuator plug-ins can be installed for further signal conditioning at the input. 30 dB back-matched test ports are provided for monitoring both forward and reverse signal levels without interrupting service.
Blonder Tongue RMDA 86A Specs
| Frequency Range | Forward: 54 to 860 MHz Return Path: 5 to 40 MHz |
| Channel Loading | Forward: 129 Return Path: 5 |
| Flatness | Forward: ±1 dB Return Path:±0.5 dB |
| Gain | Forward: 32 dB Return Path: 22 dB (Active) / -1.5 dB (Passive) |
| Noise Figure | Forward: 8.5 dB Return Path: 6 dB |
| Output Level | Forward: 34 / 42 dBmV Return Path: +48 dBmV |
| Test Port Level | Forward: -30, ±2 dB Return Path: -30, �2 dB |
| Gain Control Range | Forward: 10 dB Return Path: 18 dB |
| Slope Control Range | Forward: 8 dB |
| Composite Triple Beat | Forward (-CTB): -58 dB Return Path (-CTB): -66dB |
| Composite Second Order | Forward (-CSO): -59 dB Return Path (-CSO): -70 dB |
| Cross Modulation | Forward (-XMOD): -58 dB Return Path (-XMOD): -60 dB |
| Hum Modulation | Forward: -70dB Return Path: -65dB |
| Impedance | All Ports: 75 ohm |
| Return Loss | Forward (Input / Output): 14 dB Return Path (Input / Output): 15 dB |
| Number of Hybrids | Forward: 2 Return Path: 1 |
| Hybrid Technology | Push-pull |
| Connectors | Not specified by manufacturer |
| Power Supply | 117 VAC: 60 Hz, 26 W 26 VAC: 60 Hz, 1.0 A |
| Operating Temperature | -4 to 140 / -20 to 60°C |
| Rack Height | 1 RU |
| Dimensions | 19 x 1.8 x 5.1 / 483 x 44 x 130 mm |
| Weight | 6 lb / 2.7 kg |
| Package Weight | 7.6 lb |
| Box Dimensions (LxWxH) | 25 x 9.2 x 3.2" |
