Description

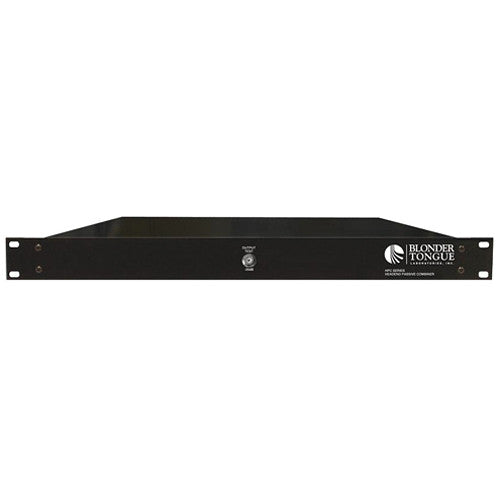

Blonder Tongue HPC Overview
The 24-port Headend Passive Combiner from Blonder Tongue is designed for use in a headend to combine the outputs from up to 24 single channel devices such as modulators and processors. It supports a frequency range of 5 to 1000 MHz.
Designed to provide high isolation, low net combing loss and featuring RFI shielding to minimize egress or ingress interference
Front-panel, 20 dB test port on 75 ohm F type connector allows testing unit without service interruption
1RU rackmoutable chassis
In the Box
- Blonder Tongue Headend Passive Combiner (24-Port)
- Limited 3-Year Manufacturer Warranty
Blonder Tongue HPC Specs
Performance
| Maximum Insertion Loss | 5 to 40 MHz: 17.2 dB 40 to 450 MHz: 17.5 dB 450 to 750 MHz: 19 dB 750 to 1000 MHz: 20 dB |
| Minimum Isolation | 5 to 40 MHz: 30 dB 40 to 450 MHz: 32 dB 450 to 750 MHz: 30 dB 750 to 1000 MHz: 28 dB |
| Test Port | 5 to 40 MHz: 20+ / -0.5 dB 40 to 450 MHz: 20+ / -0.5 dB 450 to 750 MHz: 20+ / -0.5 dB 750 to 1000 MHz: 20+ / -0.5 dB |
| Input Return Loss | 5 to 40 MHz: 20 dB 40 to 450 MHz: 20 dB 450 to 750 MHz: 20 dB 750 to 1000 MHz: 18 dB |
| Output Return Loss | 5 to 40 MHz: 20 dB 40 to 450 MHz: 20 dB 450 to 750 MHz: 18 dB 750 to 1000 MHz: 18 dB |
| Impedance | 75 ohm |
General
| Connectors | Inputs: 24 x F type female Output: 1 x F type female Test Port: 1 x F type female |
| Rack Height | 1 RU |
| Dimensions | 19 x 8 x 1.8" (483 x 203 x 44 mm) |
| Weight | Not specified by manufacturer |
Packaging Info
| Package Weight | 6.4 lb |
| Box Dimensions (LxWxH) | 23.6 x 12.1 x 3.9" |
