Description
Blonder Tongue BIDA-550-30 Overview

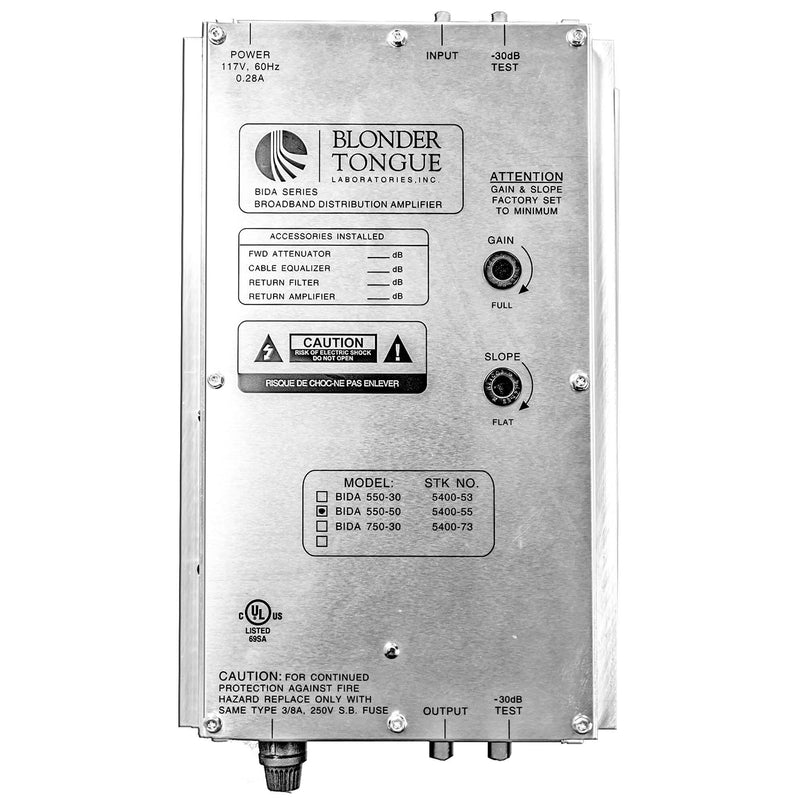

This BIDA 5400 Series Indoor Distribution Amplifier from Blonder Tongue is designed for CATV, SMATV, and MATV multi-channel signal distribution systems with cable drops as a signal source with a 47-550 MHz range and 33 dB gain. A return path bandwidth of 5-30 MHz can be configured as either an active or passive return for varying gain values. One RF input and one RF output connects to your distribution system. Two -30 dB test ports can test your signal quality without interrupting service.
Features at a Glance
- Hybrid IC circuitry for high output with low distortion
- Front panel gain and slope controls for easy adjustments
- Field installable options provide two-way capability (passive or active)
- Accessible input and output test points permit in-service testing
- Aluminum chassis for improved heat dissipation
- External fuse for easy replacement
- LED pilot light
In the Box
- Blonder Tongue BIDA 5400 Series Indoor Distribution Amplifier (550 MHz, 30 dB)
- Limited 1-Year Warranty
Blonder Tongue BIDA-550-30 Specs
General
| Compatibility | Not Specified by Manufacturer |
| Frequency Range | 47 to 550 MHz |
| Gain | 33 dB |
| Gain Control Range | 15 |
| Flatness | ± 0.75 dB |
| Slope Control Range | 10 |
| Input Return Loss | 14 dB |
| Output Return Loss | 14 dB |
| Noise Figure | 7.0 |
| Number of Channels | 77 |
| Output Level | 36/44 dBmV |
| Composite Triple Beat | -64 |
| Cross Modulation -XMOD | -64 |
| Composite Second Order | -64 |
| Impedance | 75 Ohms |
| Hum Modulation | -70 dB |
| Test Port Level | -30 dB, ±2 dB |
| Test Port Return Loss | 20 dB |
Power
| Power Source | AC Input |
| AC Input Power | 105 to 130 VAC, 60 Hz at 0.38 A |
Environmental
| Operating Temperature | -4 to 140°F / -20 to 60°C |
Physical
| Cable Length | Not Specified by Manufacturer |
| Dimensions | 11.5 x 7.13 x 2.68" / 292.1 x 181.1 x 68.07 mm |
| Weight | 5.75 lb / 2.61 kg |
Packaging Info
| Package Weight | 6.65 lb |
| Box Dimensions (LxWxH) | 14.6 x 11.2 x 4" |
