Description
Product Overview

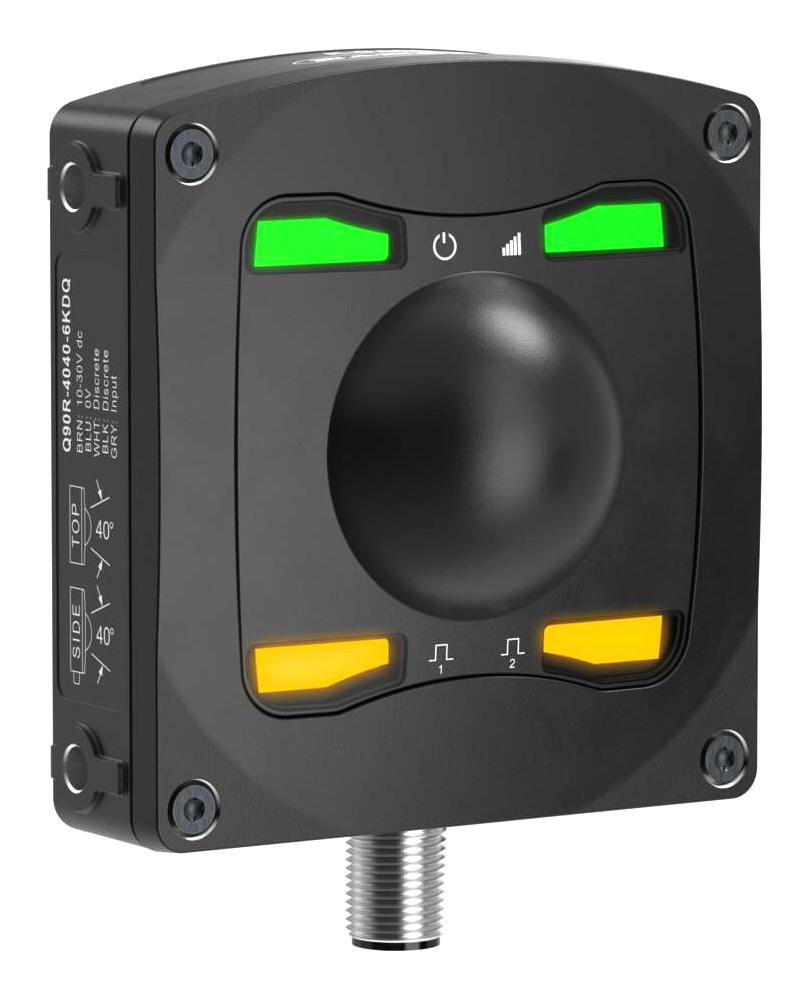

Q90R-4040-6KDQ is a Q90R R-GAGE® series, high power multipurpose radar sensor. This industrial radar sensor uses high-frequency radio waves from its internal antenna to detect and measure the distance to objects in its field of view. The Q90R detects a wide variety of materials including metal, liquids, or organic materials. Use the supplied software, IOLink, or a remote input wire to configure the sensor to sense objects within a specified distance while ignoring objects beyond. The sensing functions are immune to wind, fog, steam, and temperature changes and resistant to rain and snow.
- Input voltage range from 10 to 30Vdc, 60GHz operating frequency
- IP67, IP69K rating, fixed FOV type, 5-pins
- PFM output, PC configurable
- Remote teach, washdown rated, clear object detection, timing (hold/delay), quick disconnect
- 2 NPN/PNP configurable discrete (switched) outputs
- Flat mount housing, aluminium primary housing material
- Integral QD connection, M12 quick disconnect type
- 20000mm max sensing distance, compact, rugged IP69K housing withstands harsh environments
- FMCW radar detects moving and stationary objects
- Operating temperature range from -40°C to 65°C
Product details
Other details
| Brand | BANNER ENGINEERING |
| Part Number | Q90R-4040-6KDQ |
| Quantity | Each |
| Technical Data Sheet EN |  |
