Description

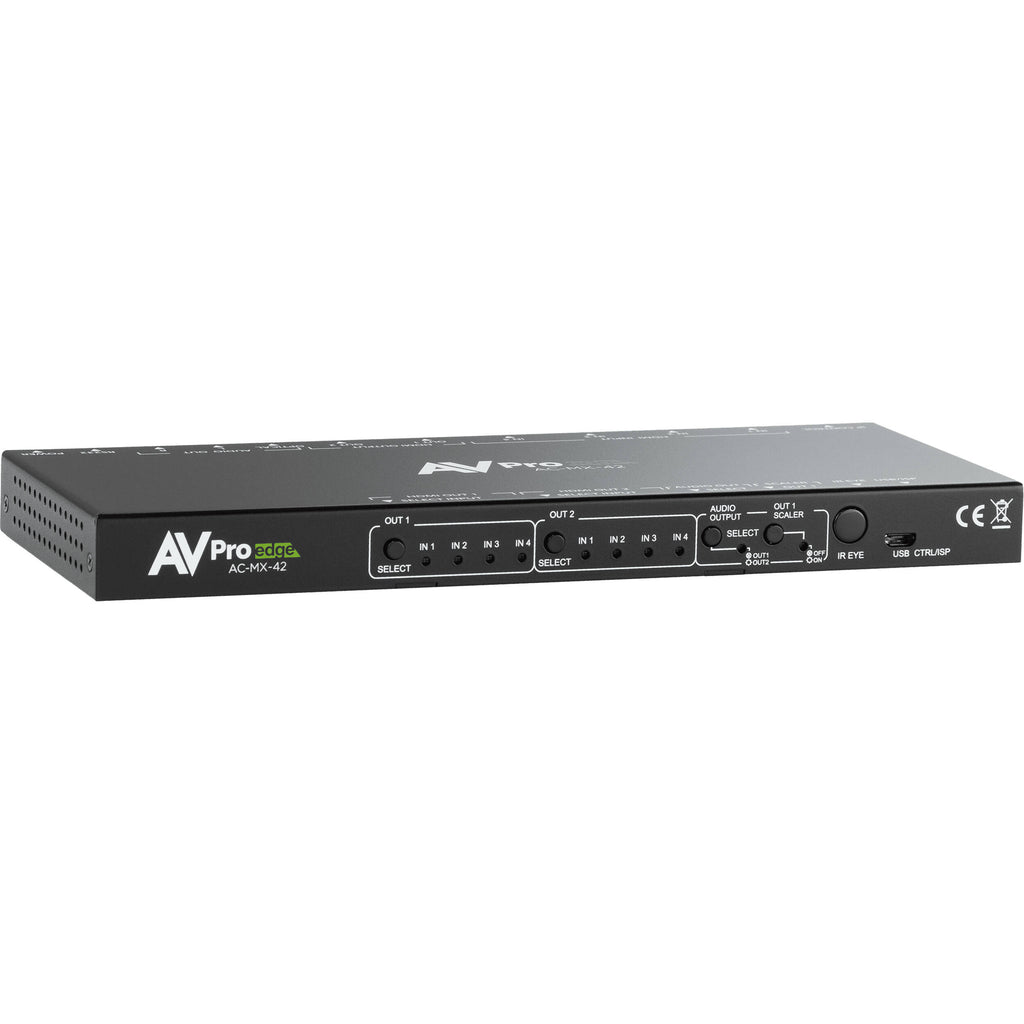

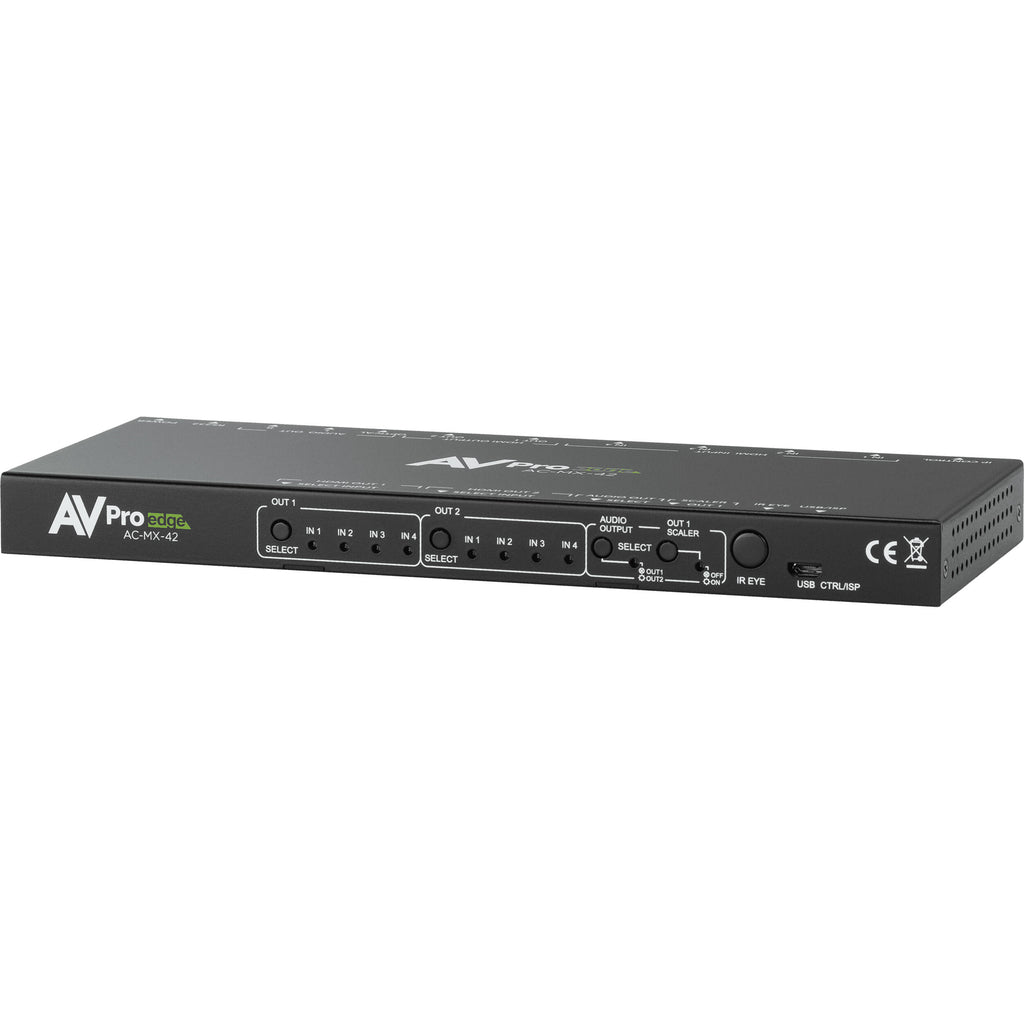

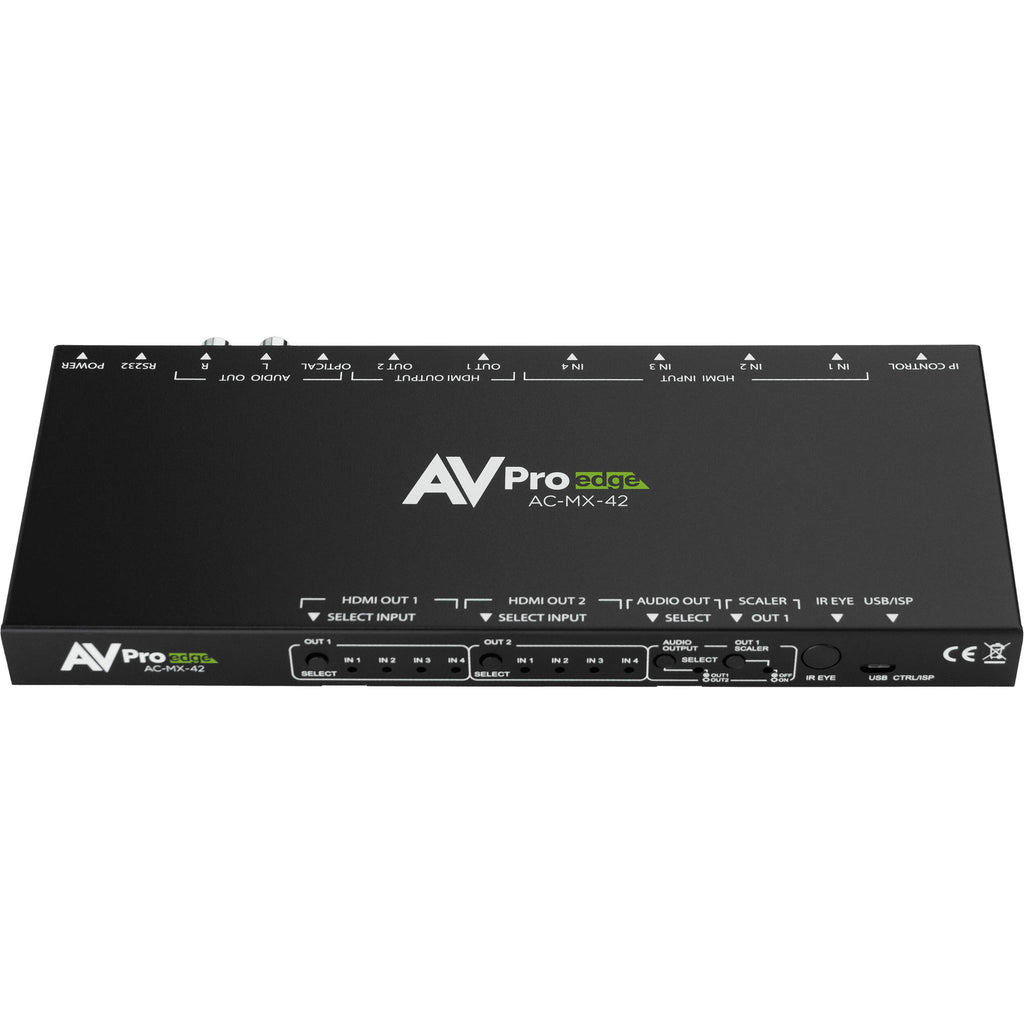

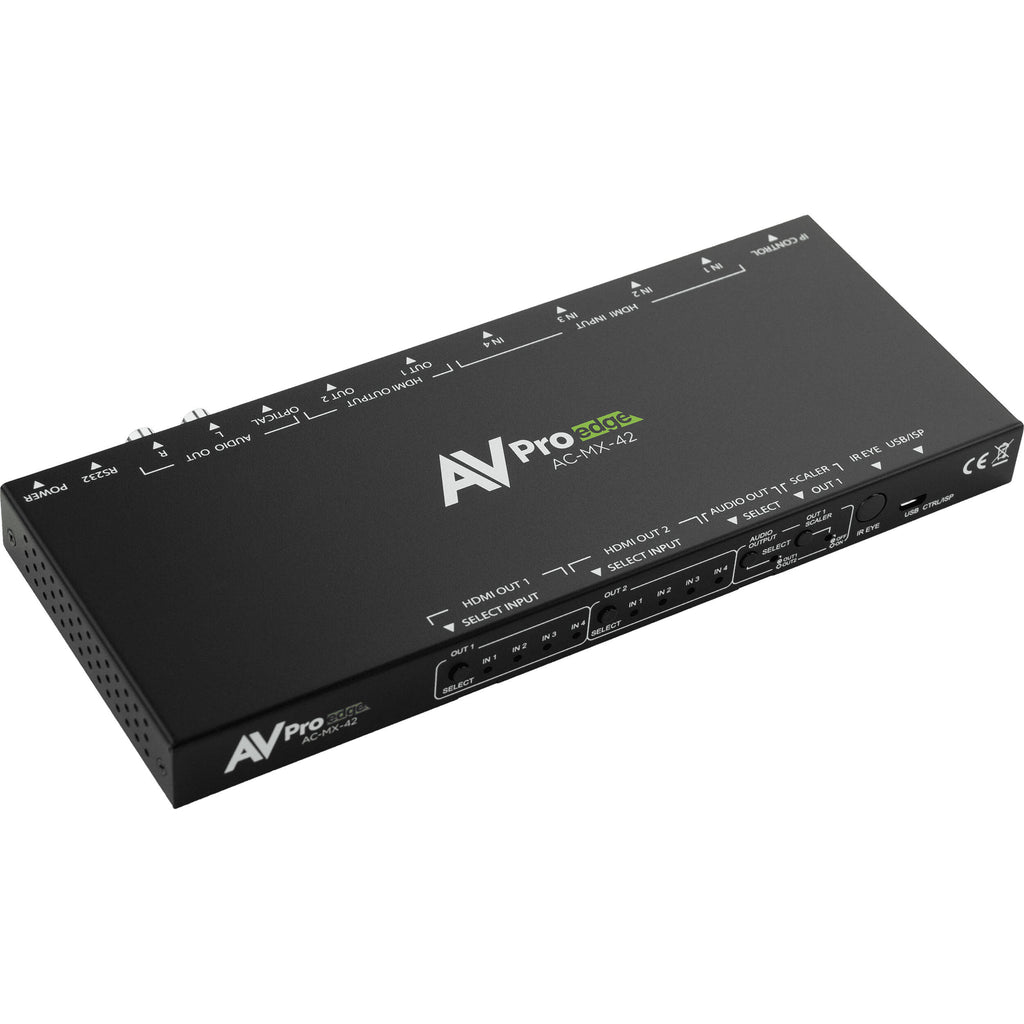

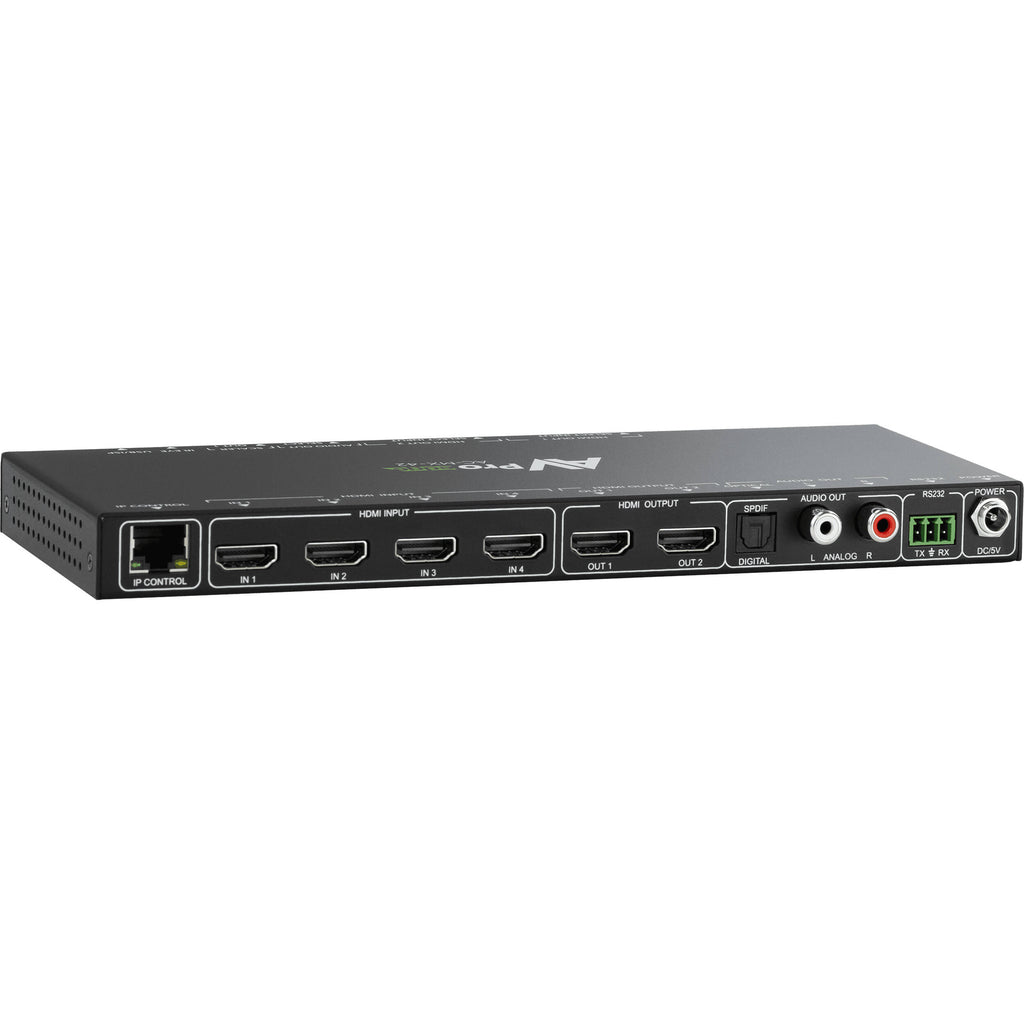

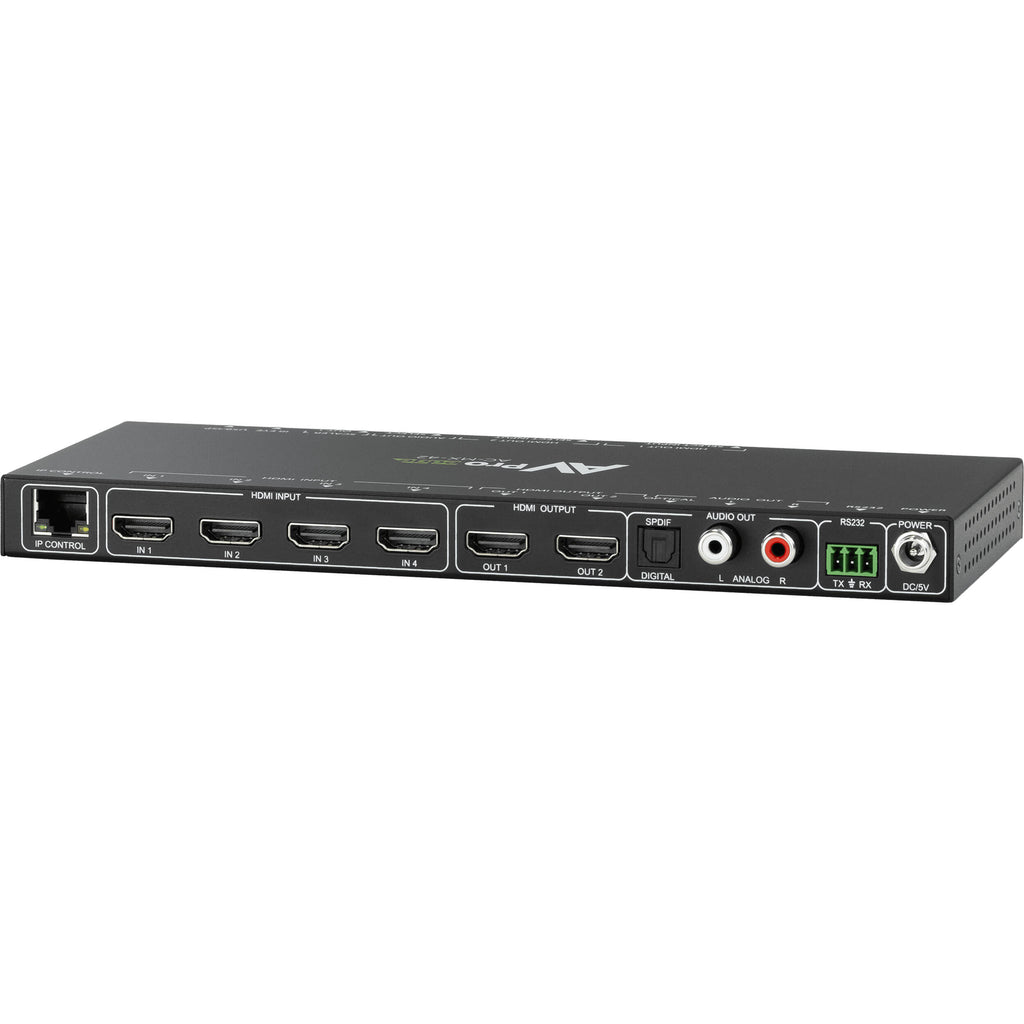

AVPro Edge AC-MX Overview
The 4x2 HDMI 8K60 Matrix Switcher from AVPro Edge is a 4K matrix and auto-switch/AVR bypass unit with four HDMI inputs and two HDMI outputs. The unit is designed to support up to HDMI 2.1, HDCP 2.3, 8K60, 4K10, and up to 40 Gb/s of video bandwidth. It allows you to display Blu-ray, UHD Blu-ray, satellite receiver, game consoles, and computer sources on connected displays.
This unit is suitable for bypassing AVRs and allows you to bypass uncompressed HDMI to the display, while running down-scaled video into a legacy AVR. The auto-switching feature allows you to feed a video signal into video conference coded and provides the option to output both auto-switches together or auto-switch only a single output.
The 8K/4K up-scaling/down-scaling enables you to downscale 8K sources to 1080p, and it also supports advanced EDID management. The dual audio de-embedding allows you to extract 2-channel audio from the L/R port, and the digital optical TOSLINK output supports 7-CH LPCM, Dolby Digital, Dolby Digital+, DTS, and DTS Master audio signals.
Key Features
In the Box
- AVPro Edge 4x2 HDMI 8K60 Matrix Switcher
- IR Remote Control
- 5V/2A Locking Power Supply
- 3-Pin Terminal Connector
- Mounting Ear Set
- Limited 10-Year Warranty
AVPro Edge AC-MX Specs
| Switching Type | IR Remote, Software |
| Video Input Connectors | 4 x HDMI (HDMI 2.0) Female |
| Input Video Format | HDMI (10/12-Bit) 8K: 60 fps DCI 4K: 120 fps 1080p |
| Embedded Audio Input | HDMI |
| Video Output Connectors | 2 x HDMI (HDMI 2.0) Female |
| Output Video Format | HDMI (10/12-Bit) 8K DCI 4K UHD 4K 1080p |
| Audio Output Connectors | 1 x TOSLINK Stereo S/PDIF Female 1 x 2RCA Stereo Analog Female |
| Output Audio Format | S/PDIF Analog |
| Embedded Audio Output | HDMI |
| Other I/O | 1 x RJ45 LAN 2 x 3-Pin Euroblock RS-232 |
| HDCP Support | Version 2.3 |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma, Advanced HDR |
| DTS Compatibility | DTS, DTS-HD Master Audio |
| Dolby Compatibility | Dolby Digital, Dolby Digital Plus |
| Power Connector | 1 x Barrel (5 VDC at 2 A) Input |
| Power Consumption | Device: 100 to 240 VAC (7 W) |
| Operating Temperature | 23 to 125°F / -5 to 51°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 5 to 90% |
| Weight | 1 lb / 0.5 kg |
| Package Weight | 1.97 lb |
| Box Dimensions (LxWxH) | 12.3 x 7.3 x 2.8" |
