Description
Product Overview

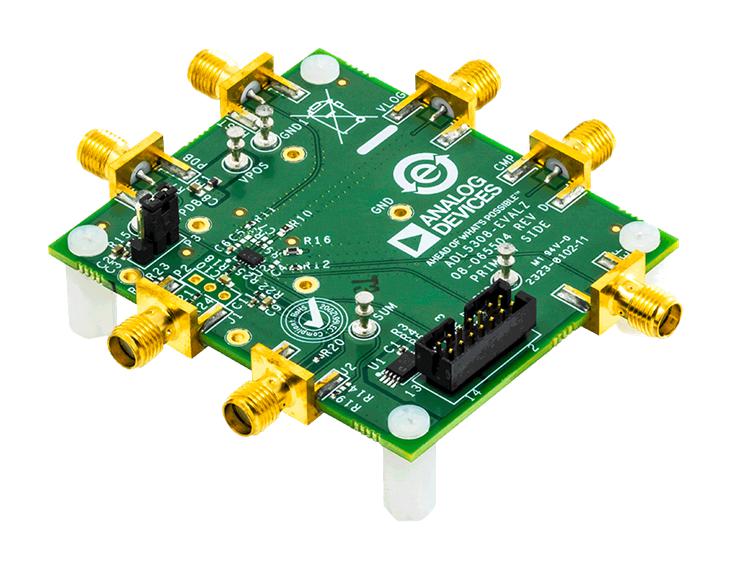

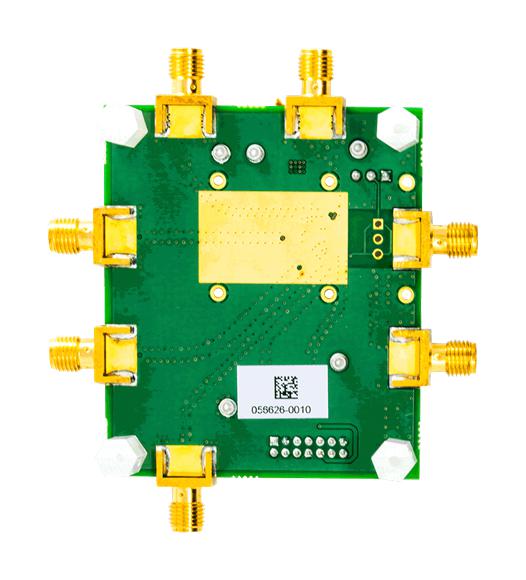

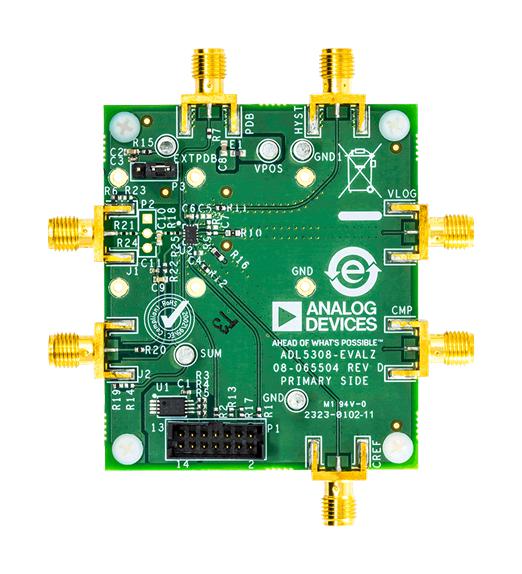

ADL5308-EVALZ is an evaluation board allows evaluation of the ADL5308 fast response 188dB range (10pA to 25mA) logarithmic converter IC. The ADL5308 is a monolithic logarithmic transimpedance amplifier, optimized for measurement of low frequency, and wide dynamic range signal power in fibre optic systems. It produces an output voltage proportional to the logarithm of the ratio between the input current at pin INP, and an internal reference current. The reference current can also be supplied externally through the IREF interface. The logarithmic slope and intercept are both factory-trimmed to a nominal value of 200mV/dec and 10pA respectively. Both can be adjusted through the I2C interface.
- Full-featured evaluation board for the ADL5308
- Supports external electrical input or on-board photodiode (PD) for optical input
- On-chip or external PD bias (PDB)
- Comparator reference and output connectors with adjustable hysteresis
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | ADL5308-EVALZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 37341.11 |
| 3-5 | ₹ 36960.07 |
| 5-10 | ₹ 36198.01 |
| 10+ | ₹ 35435.95 |
Bulk discount will be automatically applied during checkout based on quantity.
