Description
Product Overview

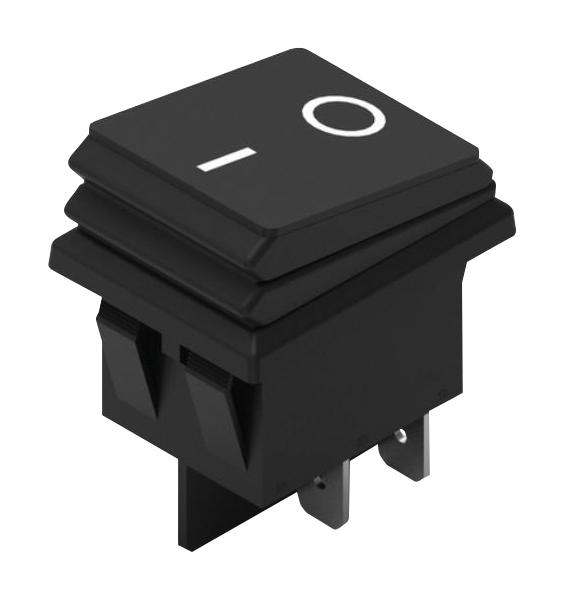

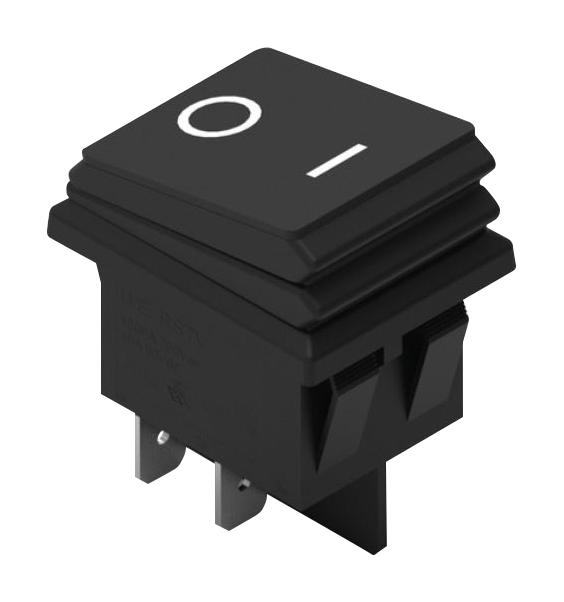

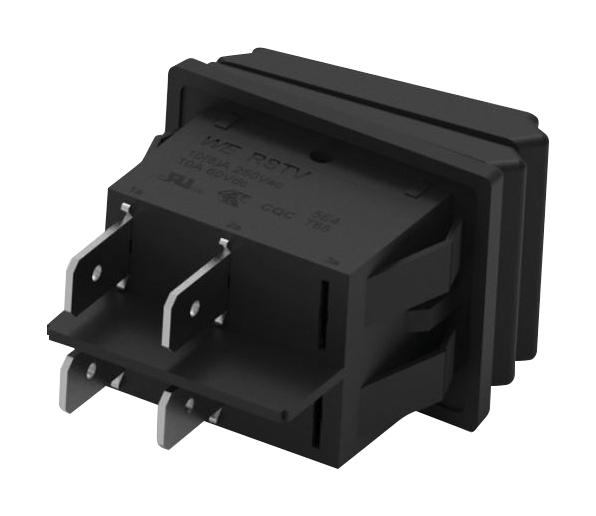

471023262152 is a WS-RSTV IP65, 30.2x22.2mm, panel cut-out with 0.25 quick connect terminal rocker switch.
- PC with silicone rubber actuator material, UL94 V-2 actuator flammability, black actuator colour
- PA66 frame material, UL94 V-2 frame flammability
- Carbon steel spring material, copper alloy spring holder material
- Silver moveable contactor plating, copper alloy moveable contact material
- Copper alloy stationary contact material, silver stationary contact plating
- Silver terminal plating, 10A rated current resistive load at (250VAC)
- 8A rated current motor load at (250VAC), 48A inrush current motor load at (250VAC)
- 50mohm max contact resistance, 100Mohm min insulation resistance at (500VDC)
- 50000 cycles electrical life, DPST schematic
- Operating temperature range from 0°C upto +85°C
Product details
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 471023262152 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1790.78 |
| 3-5 | ₹ 1772.51 |
| 5-10 | ₹ 1735.96 |
| 10+ | ₹ 1699.42 |
Bulk discount will be automatically applied during checkout based on quantity.
