| ₹ 2841.99 includes GST and import duties. | |
| B2B customers can avail ₹ 433.4 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

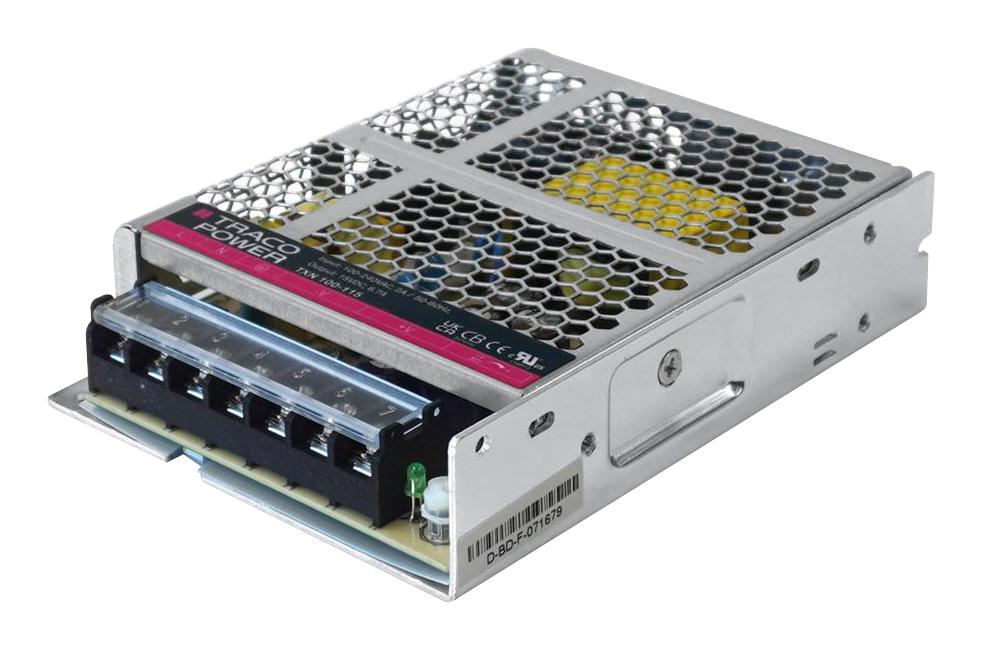

TXN 100-105 is a TXN 100 series, cost efficient, metal enclosed AC/DC power supply and is designed for industrial applications. With a low-profile metal case and screw terminal block connection, it is easy to install in any equipment. The TXN power supply is completely convection cooled. Internal EMC filter, high IO-isolation and wide temperature range qualify it for numerous industrial applications. This power supply has universal input and comply with the latest industrial standard IEC/EN/UL 62368-1, European EMC standards and the Low Voltage Directive (LVD).
- 80W maximum output power, 5VDC (4.5 - 5.5VDC) output voltage
- 16000mA maximum output current, 83% typical efficiency
- Compact metal case with screw terminal block
- Universal input 90-264VAC
- Compliance to EN 61000-3-2
- Short circuit, overvoltage and overload protection
- 3-year product warranty
- 65KHz typical switching frequency (PWM), 3000VAC isolation test voltage (input to output, 60s)
- Aluminium (chassis) housing
- Operating temperature range from -30°C to +70°C
Product details
Other details
| Brand | TRACO POWER |
| Part Number | TXN 100-105 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2785.15 |
| 3-5 | ₹ 2756.73 |
| 5-10 | ₹ 2699.89 |
| 10+ | ₹ 2643.05 |
Bulk discount will be automatically applied during checkout based on quantity.
