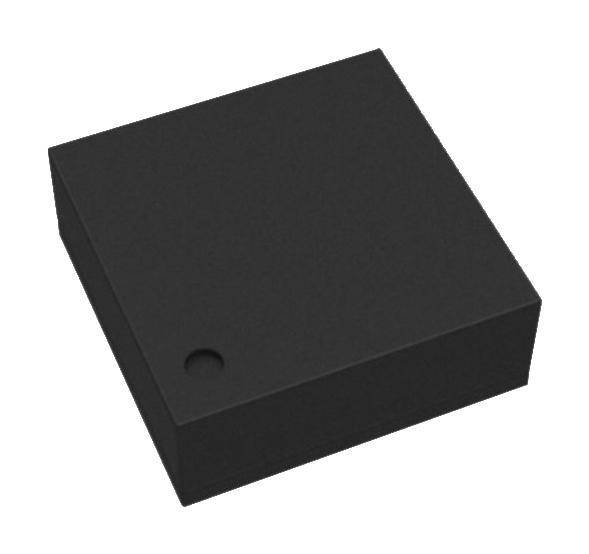

STMICROELECTRONICS STM32MP257DAL3 Microprocessor, 32 Bit, 64 Bit, 144 I/O's, STM32, 1.5GHz, 3.6V Supply, -40 to 125°C, VFBGA-361

STM32MP257DAL3 is a MPU with dual Arm Cortex-A35 at 1.5GHz, Cortex-M33 at 400MHz, 3xEthernet (2+1 switch), 3xFD-CAN, LVDS/DSI, H.264, 3D GPU, AI/NN. The Cortex®?A35 processor uses a highly efficient 8-stage in-order pipeline that has been extensively optimized to provide full Armv8-A features while maximizing area and power efficiency. STM32MP25xA/D devices also embed a Cortex®-M33 32bit RISC core operating at up to 400MHz frequency. The Cortex®-M33 core features a FPU single precision which supports Arm® single-precision data-processing instructions, and data types. The Cortex®-M33 supports a full set of DSP instructions, TrustZone®, and a MPU which enhances application security. The STM32MP25xA/D devices also embed a Cortex®-M0+ 32bit RISC core operating at up to 200MHz frequency (16MHz when running from backup regulator). This processor is located in the SmartRun domain, and can be used to ensure -low-power peripheral activity when all other processors and domains are stopped.

• Basic security, 1.5GHz CPU1, 900MHz GPU and dual-core Cortex-A35 FPU Neon TrustZone, 1500MHz CPU
• CPU cache:2x (32+32)Kbyte (L1 data+instruction), 512Kbyte (L2 unified) Cortex-A35 FPU Neon TrustZone
• Performance/frequency: 900MHz, up to 150Mtriangle/s or 900Mpixel/s (GPU), 900MHz, 1.35 TOPS (NPU)
• Embed a 3D graphic processing unit (VeriSilicon®, OpenGL ES 3.1, Vulkan 1.3, OpenCL 3.0, OpenVX 1.3)
• Graphic processing unit provide neural processor unit (VeriSilicon®, TensorFlowLite, ONNX, Linux NN)
• 128Kbytes (only for Cortex-A35) ROM, Cortex-M33 FPU TrustZone, 16Kbyte data and instruction cache
• H264/VP8 up to 1080p60 decoder (VDEC), JPEG 500Mpixel/s encoder (VENC), up to 128Kbytes video RAM
• Timers: advanced, general purpose, basic, low power, SysTick, RTC, watchdog
• Communication peripherals: SPI, I2C, I3C, USART, UART, LPUART, SAI, PCIE, USB, SPDIFRX, FDCAN
• Junction temperature range from -40 to 125°C and 361 ball VFBGA 10x10 pitch 0.5mm package
