Description
Product Overview

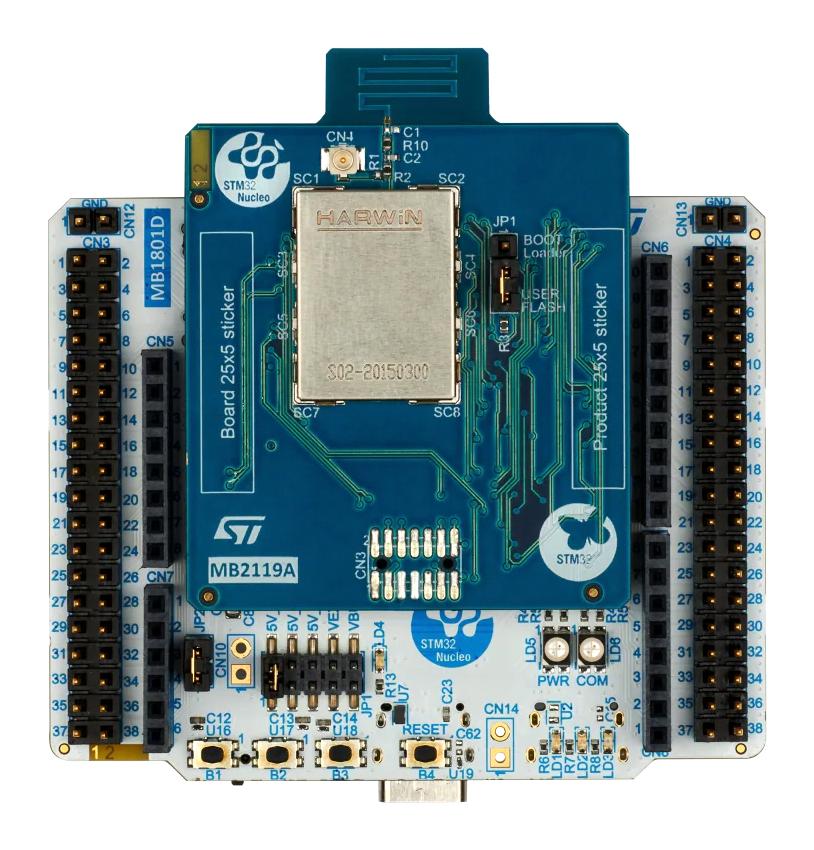

NUCLEO-WB07CC is a STM32 Nucleo-64 RF development board with STM32WB07CCV6 MCU BlueNRG 256k. This Bluetooth® Low Energy wireless and ultra-low-power board embedding a powerful and ultra-low-power radio compliant with the Bluetooth® Low Energy SIG specification v5.4. The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
- Ultra-low-power wireless STM32WB07CC microcontroller based on the Arm® Cortex®?M0+ core
- 256Kbytes of flash memory and 64Kbytes of SRAM in a VFQFPN48 package
- MCU RF board: 2.4GHz RF transceiver supporting Bluetooth® specification v5.4, built?in PCB antenna
- Three user LEDs and three user and one reset push-buttons
- Board connectors: USB Type-C®, ARDUINO® Uno V3 expansion connector
- Board connectors: ST morpho headers for full access to all STM32 I/Os
- Flexible power-supply options: ST-LINK USB VBUS or external sources
- On-brd STLINK-V3EC debugger/programmer w/ USB re-enumeration: mass storage, Virtual COM, debug port
- Comprehensive free software libraries and examples available with the STM32CubeWB0 MCU Package
- Support of a wide choice of IDEs including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
Product details
Other details
| Brand | STMICROELECTRONICS |
| Part Number | NUCLEO-WB07CC |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3845.05 |
| 3-5 | ₹ 3805.81 |
| 5-10 | ₹ 3727.34 |
| 10+ | ₹ 3648.87 |
Bulk discount will be automatically applied during checkout based on quantity.
