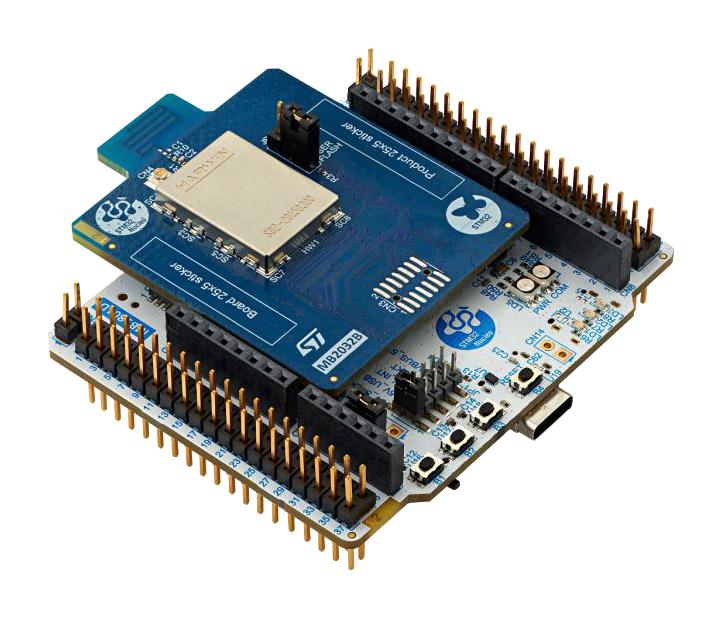

STMICROELECTRONICS NUCLEO-WB05KZ Development Board, STM32WB05KZ, Nucleo-64, 32bit, ARM Cortex-M0+

NUCLEO-WB05KZ is a Bluetooth® low energy wireless and ultra-low-power board embedding a powerful and ultra-low-power radio compliant with the Bluetooth® Low Energy SIG specification v5.4. The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. It features ultra-low-power wireless STM32WB05KZ microcontroller based on the Arm® Cortex®?M0+ core, featuring 192Kbytes of flash memory and 24Kbytes of SRAM in a VFQFPN32 package. MCU RF board (MB2032) has 2.4GHz RF transceiver supporting Bluetooth® specification v5.4 and built?in PCB antenna.

• Three user LEDs, three user and one reset push-buttons
• USB Type-C®, ARDUINO® Uno V3 expansion connector, ST morpho headers for full access to STM32 I/Os
• Flexible power-supply options: ST-LINK USB VBUS or external sources
• On-board STLINK-V3EC debugger/programmer with USB re-enumeration capability
• Comprehensive free software libraries and examples available with the STM32CubeWB0 MCU package
• Support of a wide choice of IDEs including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
• Best-in-class radio enabling robust and stable connectivity?
• State-of-the-art radio efficiency?
• Power control options on IoT devices? for longer battery life
• Best value for simpler and lightweight Bluetooth® low energy applications

Contents

MB1801 mezzanine board, MB2032 MCU RF board.
