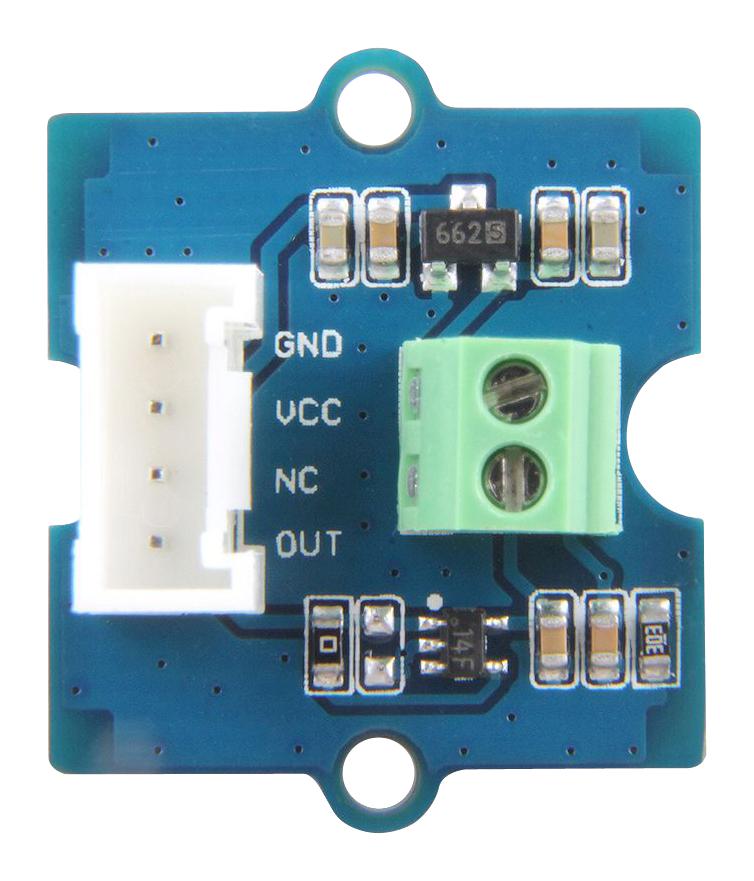

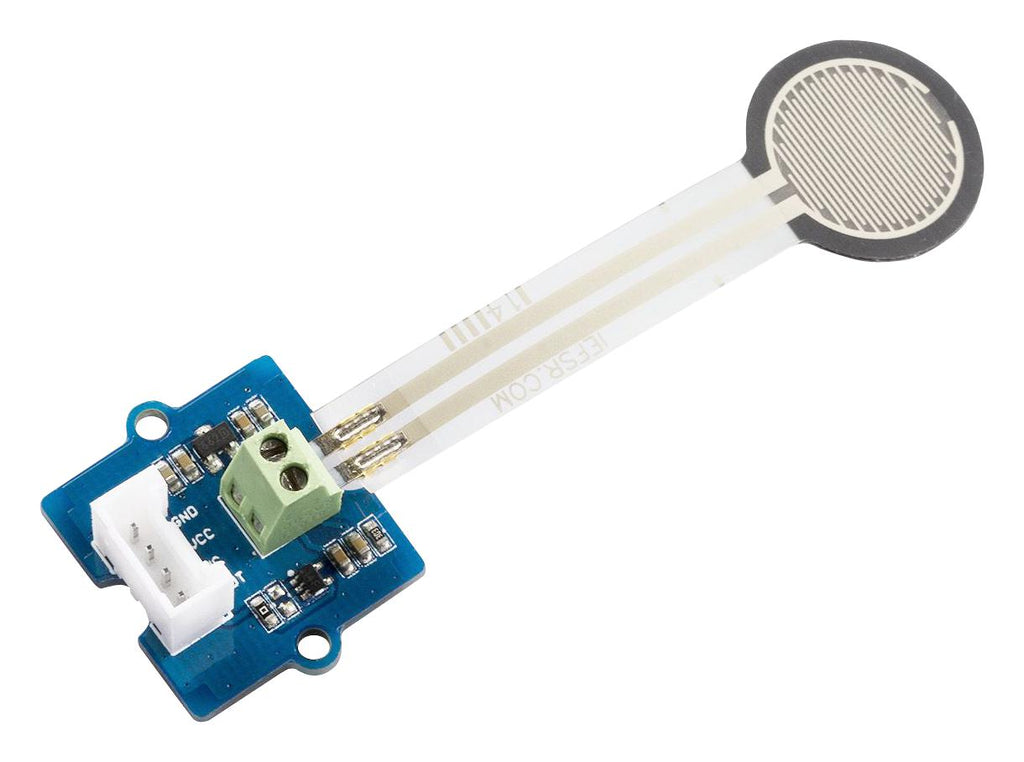

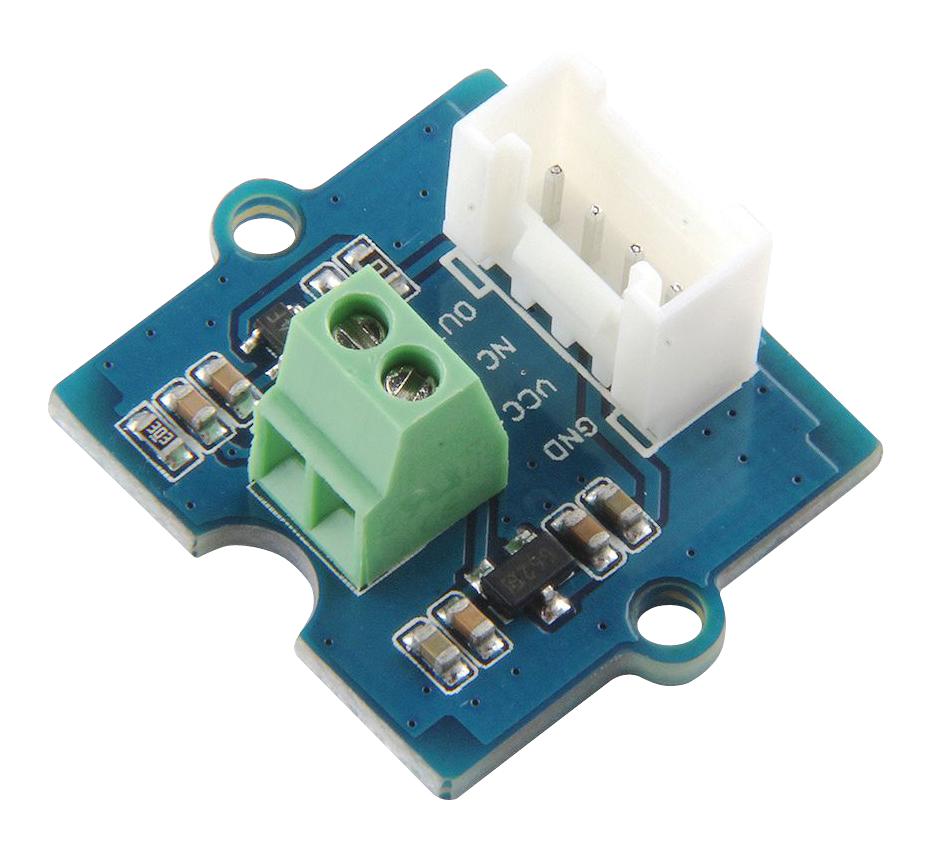

Grove-Round Force Sensor(FSR402) is a force sensitive module. At the end of the sensor there is a round force sensitive resistor, the resistance of which depends on pressure applied to this resistor. Typical applications include automotive electronics, medical systems, industrial controls, robotics and interactive educational toy.
- Analog output
- Reliable mechanical structure
- High durability tested to 10 million actuations, 1kg, 4Hz / -10% average resistance change
- Working voltage is 3.3V/5V
- Force sensitivity range from 0.2N--20N
- Operating temperature range from -10°C to 60°C

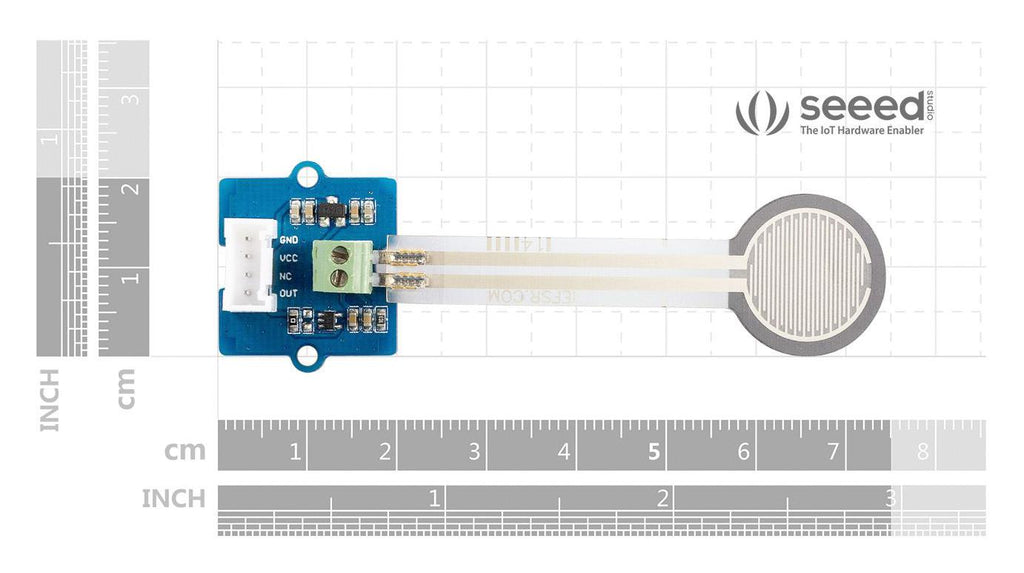

- Dimension is 20mm x 20mm x 13mm
Contents

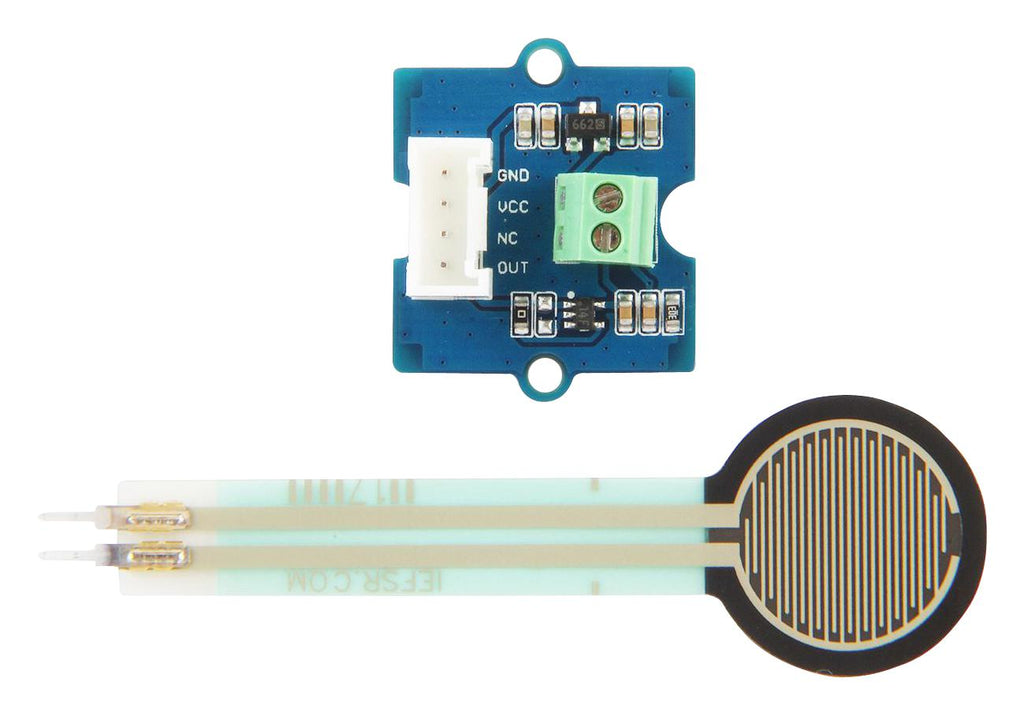

Grove - round force sensor (FSR402) x 1, Grove cable x 1.
Product details
| Accessory Type |
Round Force Sensor Module |
| For Use With |
Arduino & Raspberry Pi Board |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
101020553 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
