Description
Product Overview

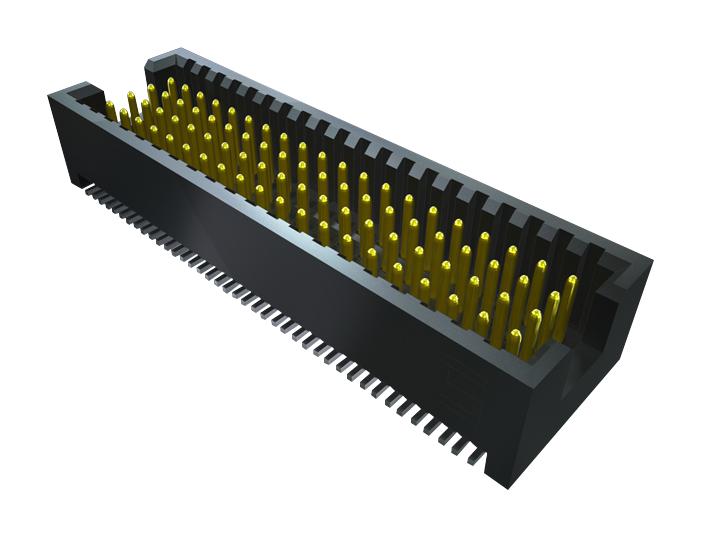

The MOLC series from Samtec are 0.050" (1.27mm) pitch FOURRAY� quad row terminal strips. These terminal strips mates with FOLC 0.050" (1.27mm) pitch FOURRAY� quad Row Tiger Eye� socket strips. The MOLC terminal strips are available in through-hole, surface mount and mixed technology terminations. Locking clip option available for most rugged requirements.
- Available in standard 20, 25, 30, 35, 40, 45, 50 number of pins per row
- Vertical orientation, ultra-high density four row design
- 0.018" (0.46mm) diameter post contact system
- UL E111594 qualified
- Phosphor bronze contact material
- 10?" (0.25?m) gold plating on post, matte tin plating on tail
- Black liquid crystal polymer insulator material
- Current rating is 2.6A per pin (1 pin powered per row)
- Operating temperature range from -55?C to +125?C
Applications
Industrial
Product details
Other details
| Brand | SAMTEC |
| Part Number | MOLC-120-31-L-Q-LC |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2521.21 |
| 3-5 | ₹ 2495.48 |
| 5-10 | ₹ 2444.03 |
| 10+ | ₹ 2392.57 |
Bulk discount will be automatically applied during checkout based on quantity.
